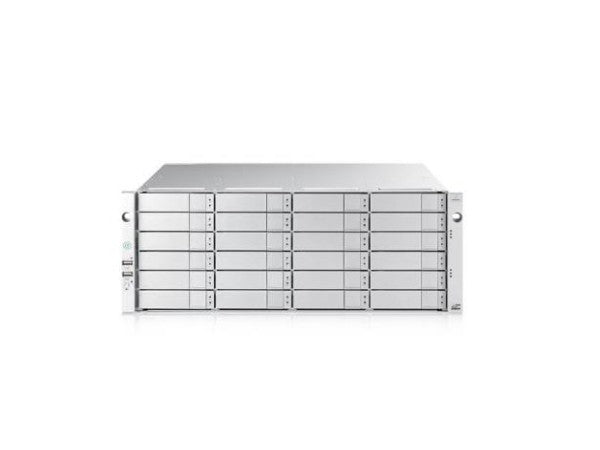

Promise VTD5800YXD14TX VTrak D5800yxD is a 4U storage base system with 24 hot-swappable 3.5" NL-SAS drives at 14TB each, 64GB RAM installed (upgradable to 128GB), and dual 800W redundant power supplies. It supports RAID 0, 1, 5, 6, 10, 50, 60, features 2 x 12Gb SAS Mini-SAS expansion ports per controller, dual 1Gb Ethernet and RJ-11 management ports, and delivers enterprise-level high-performance, scalable storage.
Specifications
Model Number: VTD5800YXD14TX
Brand: Promise
Alt Part Number(s): VTD5800YXD14TX
Product Type: Storage Base System
Technical Description
Brand: Promise
Model: VTD5800YXD14TX
Hard Drive / Size: 3.5"
Hard Drive / Interface Type: NL-SAS
Data Link Protocol: Gigabit Ethernet
Series: VTrak D5800yxD
Hard Drive Capacity / HDD: 14 TB
RAM / Max Supported Size: 128 GB
Storage Device Type: Storage Base System
Cabinet Form Factor: 4U
RAM / Total Installed Size: 64 GB
Hard Drive / Installed Qty: 24
Power / Provided (W): 800 Watt
Power / Redundant Capable: Yes
Power / Device Type: Power Supply
Power / Installed Qty: 2
RAID Level: RAID 0, 1, 5, 6, 10, 50, 60
RJ-45 Qty: 2
RAM / Installed Qty: 4
Interfaces & Connections: Storage Expansion Ports: 2 x 2 12Gb SAS Mini-SAS (SFF-8644) per controller; Management Ports: 2 x RJ-45 1Gb Ethernet and 1 x RJ-11 Serial Port per controller
