Description

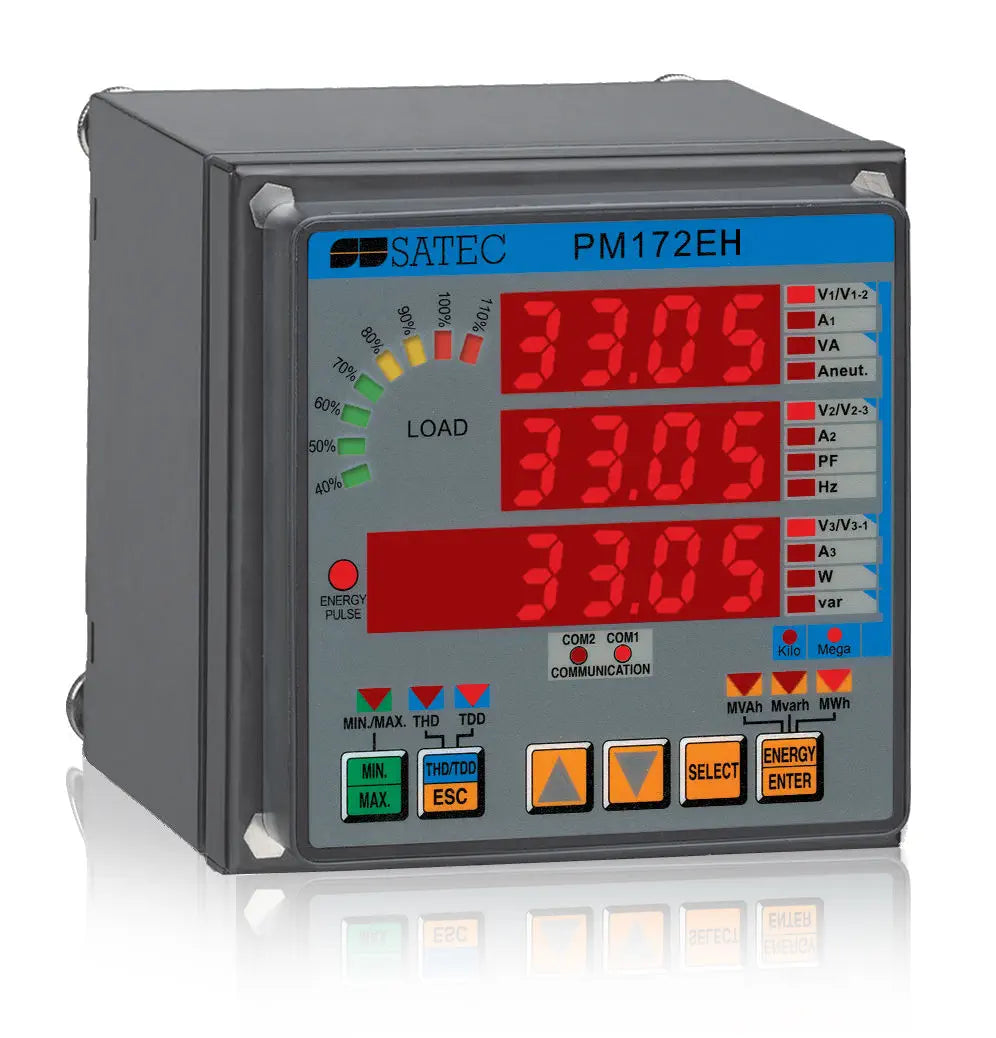

The Satec PM172EH is an advanced three-phase power analyzer designed for comprehensive monitoring and control of electrical power systems.

Technical Specifications

Information About PM172EH

The Satec PM172EH is an advanced three-phase power analyzer designed for high-accuracy metering, power quality analysis, and energy management in industrial, commercial, and utility applications. It measures a full range of electrical parameters, including voltage, current, power, energy, frequency, and power factor, while also offering detailed power quality functions such as harmonics analysis up to the 50th order, THD, TDD, K-Factor, and waveform capture.

Key Features:

• Functionality: Three-phase power metering, power quality analysis, waveform recording.
• Accuracy: Class 0.2 / 0.2S ANSI/IEC compliant.
• Power Quality: Harmonics up to 50th order, THD, TDD, K-Factor, waveform capture.
• Metering Functions: Tariff-based energy metering, seasonal and daily scheduling.
• Control & Logging: 16 programmable setpoints, event logging, periodic/event data recording.
• I/O & Communication: Digital I/O, relay outputs, expansion options, multiple comms protocols.
• Power Supply: 90–264 VAC or 85–290 VDC, 50/60 Hz, 10 W.
• Display Options: Detachable LED or color touchscreen.
• Backup: Battery-backed RTC and memory.
• Weight: 1.23 kg (approx.), 2 kg shipping.

The Satec PM172EH delivers comprehensive measurement, logging, and control capabilities in one device, making it a trusted choice for applications that demand precision, flexibility, and robust performance.
