PHPL-1500 Pulsed High Power Laser – 1465–1515 nm, >+18 dBm Output

High-Power Pulsed Laser for OTDR, Sensing, and Optical Instrumentation

The PHPL-1500 is a high-performance pulsed laser source designed for demanding optical applications such as OTDR, optical gas sensing, and precision instrumentation. With pulse output power exceeding +18 dBm and a tunable central wavelength from 1465 to 1515 nm, it offers exceptional power stability and wavelength accuracy.

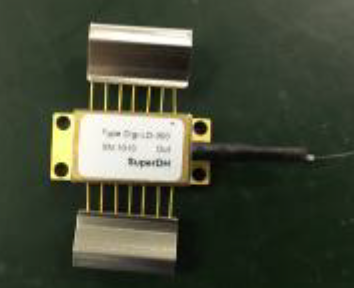

Built with a semiconductor laser chip integrated with a fiber Bragg grating (FBG), this laser achieves outstanding performance in a 14-pin butterfly package with an SMF-28 fiber pigtail and FC/APC connector. It incorporates a thermoelectric cooler (TEC) and thermistor for reliable temperature control and consistent operation under varying environmental conditions.

---

🔧 Key Features

• High Pulse Power: > 18 dBm pulsed output

• Wavelength Range: 1465–1515 nm

• Excellent Wavelength Accuracy: ± 0.5 nm

• Internal TEC and Thermistor for thermal stabilization

• Narrow Spectral Width: 0.4 nm bandwidth at 20 dB

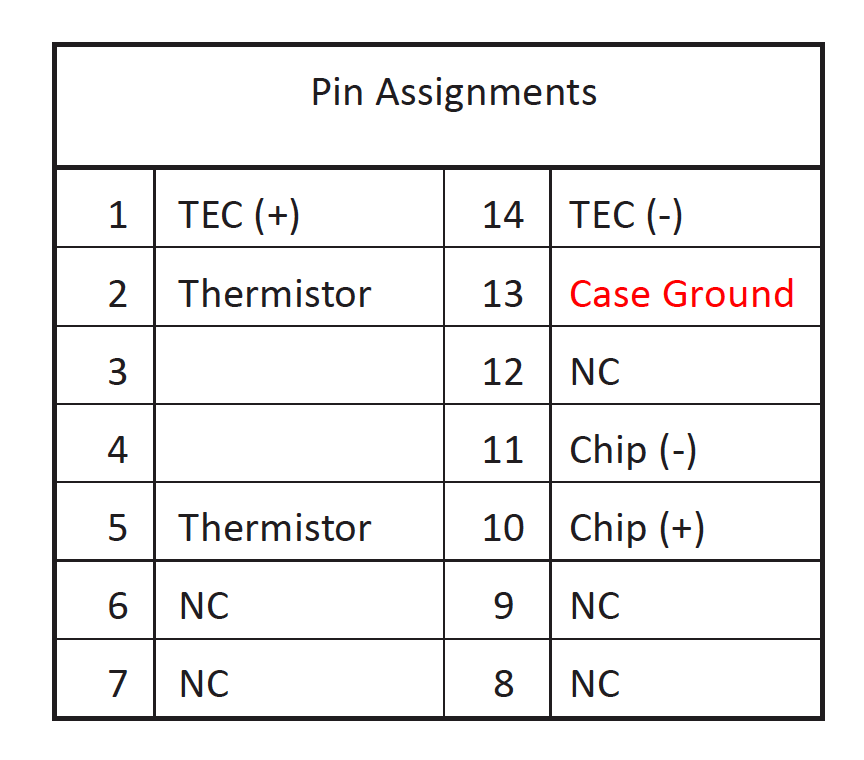

• 14-Pin Butterfly Package with SMF-28 fiber and FC/APC connector

• RoHS Compliant

---

📐 Applications

• Optical Time-Domain Reflectometry (OTDR)

• High-sensitivity optical sensing (gas, chemical)

• Optical instrumentation and R&D

---

📊 Absolute Maximum Ratings

Parameter	Symbol	Condition	Min	Max	Unit
Reverse Voltage	VR	–	–	2	V
Forward Current	IF	Pulse width 20 μs, duty 1%	–	400	mA
Forward Voltage	VF	Iop	–	2	V
Case Temperature	Tc	Iop	-10	60	°C
Laser Chip Temp.	TLaser	Iop	-10	70	°C
TEC Voltage	VTEC	–	–	4.3	V
TEC Current	ITEC	–	–	1.2	A
Storage Temperature	Tstg	Unbiased	-40	85	°C
Storage Humidity	–	–	5	85	%RH
Electrostatic Discharge	VESD	Human body model	–	500	V
Lead Solder Temp.	–	–	–	260	°C
Lead Solder Time	–	–	–	10	sec

---

📈 Electro-Optical Characteristics (TLaser = 25°C unless noted)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Threshold Current	Ith	CW	30	–	45	mA
Output Power (CW)	Po	CW	–	17	–	dBm
Operating Current	Iop	20 μs pulse width, 1% duty	–	400	500	mA
Operating Voltage	Vop	20 μs pulse width, 1% duty	1.4	–	2.0	V
Peak Wavelength	–	CW, 200 mA	1465	–	1515	nm
Spectral Bandwidth (20 dB)	BW	Pulsed	–	0.4	–	nm
Output Power (Pulsed)	Ppulse	400 mA pulse, 0 mA bias, 20 μs	–	–	18	dBm
Wavelength Accuracy	Δλ	–	–	±0.5	–	nm
Pulse Width	PW	–	–	20000	–	ns
Fiber Type	–	SMF-28, 900 μm loose tube	–	–	–	–
Optical Connector	–	FC/APC	–	–	–	–
Fiber Length	–	–	1.0	–	1.5	m

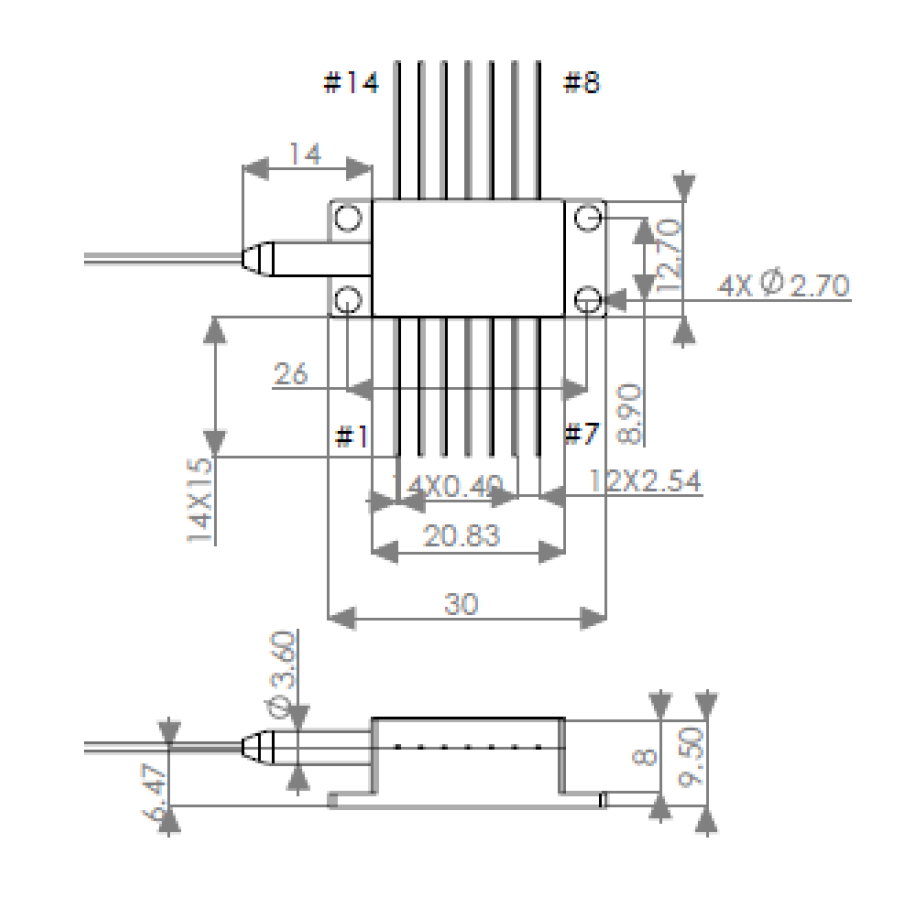

Package Type	–	–	–	14-pin BTF	–	–

---
