Overview

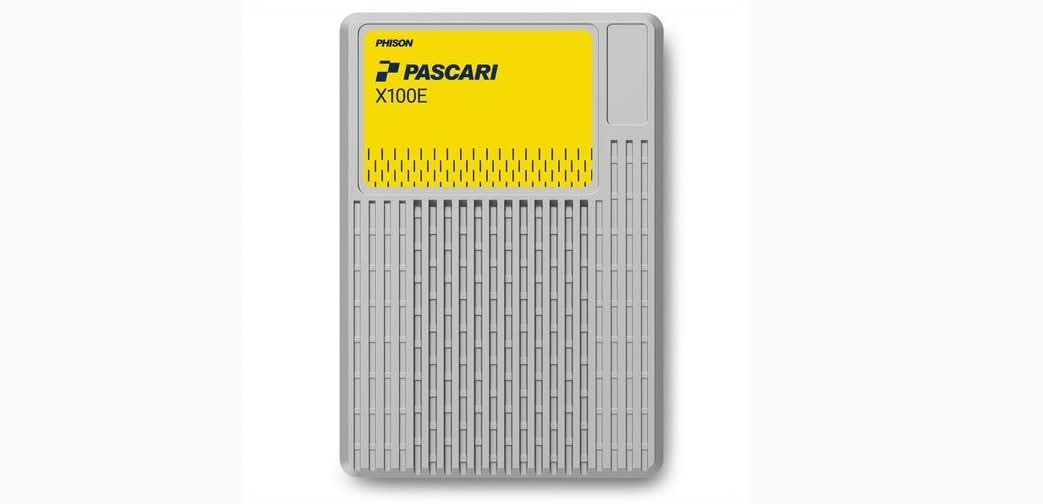

PHISON XX106H0112T8E2116T300 Pascari X100E 12.8TB U.2 Dual Port PCIe Gen4x4 SED SSD
Specifications
Model Number:XX106H0112T8E2116T300
Brand: PHISON
Alt Part Number(s):XX106H0112T8E2116T300
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:XX106H0112T8E2116T300
Capacities: 12.8TB
Security: SED
Form Factor: U.2
PCIe Interface
PCIe: Gen4x4
Dual Port: x2 lanes
PCIe AER: Advanced Error Reporting
Compliance
PCI Express Base Specification Rev. 4.0
NVM Express Base Specification Rev. 1.4
NVM Express Management Interface Rev 1.1
PCI Express SFF-8639 Module Specification Revision 4.0, Version1.0, SFF-TA-1001 r1.1
Performance
512KB Sequential Read/Write (QD=32, Job=1)(MB/s): 7,400 / 7,000
4KB Random Read/Write (QD=128, Jobs=8)(IOPS): 1,750K / 490K
Power Consumption
128K Sequential Read (Average RMS, W): 13
128K Sequential Write (Average RMS, W): 21
4KB Random Read (Average RMS, W): 16
4KB Random Write (Average RMS, W): 20
4KB 70/30 Random Read/Write (Average RMS, W): 17
Idle (Average RMS, W): 7.4
Endurance/Reliability
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits Read
DWPD: 3
TBW: 70.08TB
Environmental Specifications
Temperature Range:
Operating: 0°C - 70°C with specified airflow
Non-operating: -40°C - 85°C
Shock:
Operating: 500G, 2ms
Non-operating: 1000G, 0.5ms
Vibration:
Operating: 2.17 Grms (200 - 2000Hz)
Non-operating: 16.3 Grms (10 - 2000 Hz)
Drop: 80cm height
Bending: 50N
Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Product Ecological Compliance: RoHS compliant
Feature Support
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
64 Namespaces
Dual Port
Reservation
Metadata Protection
Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
SMBus
*
