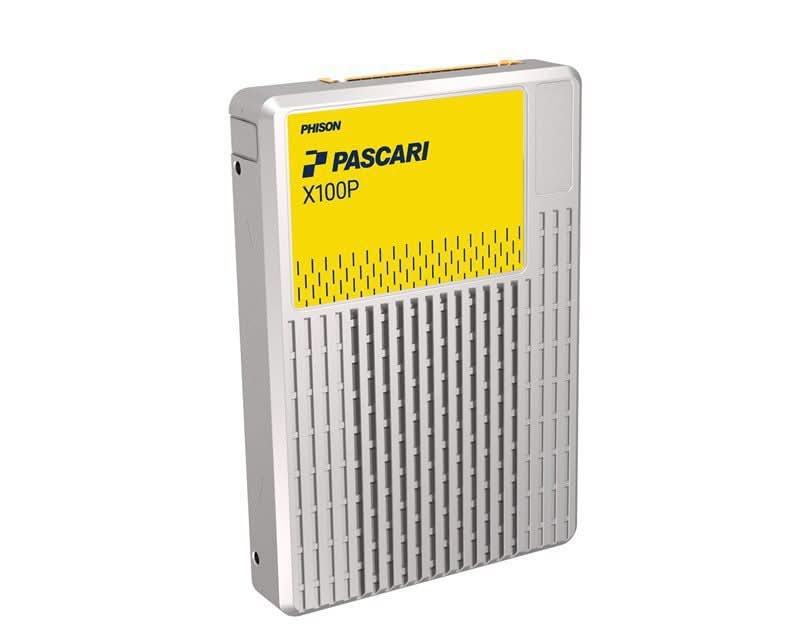

 PHISON XX106H007T68P228T1900 Pascari X100P 7.68TB U.2 Dual Port PCIe Gen4x4 Opal SSD

Specifications

Model Number:XX106H007T68P228T1900

Brand:   PHISON

Alt Part Number(s):XX106H007T68P228T1900

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XX106H007T68P228T1900

Capacity 7.68TB

Form Factor U.2

Security Opal

PCIe Interface PCIe Gen4x4

Port Configuration Dual Port x2 lanes

PCIe AER Advanced Error Reporting

Maximum Sequential Read 7000MB/s

Maximum Sequential Write 6800MB/s

Maximum Random Read 1600K IOPS

Maximum Random Write 180K IOPS

Sustained Random Read/Write Latency 100/15 µs (QD=1, Workers=1); 110/300 µs (QD=32, Workers=1); 450/3800 µs (QD=64, Workers=8)

IOPS Consistency 95%

QoS (99%) Read/Write 100/12 µs (QD=1, Workers=1); 130/200 µs (QD=32, Workers=1); 600/3200 µs (QD=64, Workers=8)

Random Read Power (Typical) 15.7W

Random Write Power (Typical) 17.4W

Sequential Read Power (Typical) 11.6W

Sequential Write Power (Typical) 19.1W

Inrush Current 1.5A

Idle Power 5.75W

DWPD 1

TBW 14,016TB

LBAF 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF 2,500,000 hours

UBER < 1 sector per 10^18 bits read

ECC Yes

Wear Leveling Static and Dynamic

Bad Block Management Yes

Deallocate (TRIM) Command Supported

SMART Supported

Over-Provisioning Supported

Firmware Upgrade Supported

Operating Temperature 0°C – 70°C with specified airflow

Storage Temperature -40°C – 85°C

RoHS Compliance Yes

Namespaces Supported

Dual Port Supported

Reservation Supported

Metadata Protection Supported

Thermal Throttling Supported

Power Loss Protection Supported

Hardware Encryption AES-XTS 256-bit

SMBus Support Yes

NVMe-MI Support Yes

Compliance PCIe Express Base 4.0, NVMe 1.4, NVMe Management Interface Rev 1.1

*
