Overview

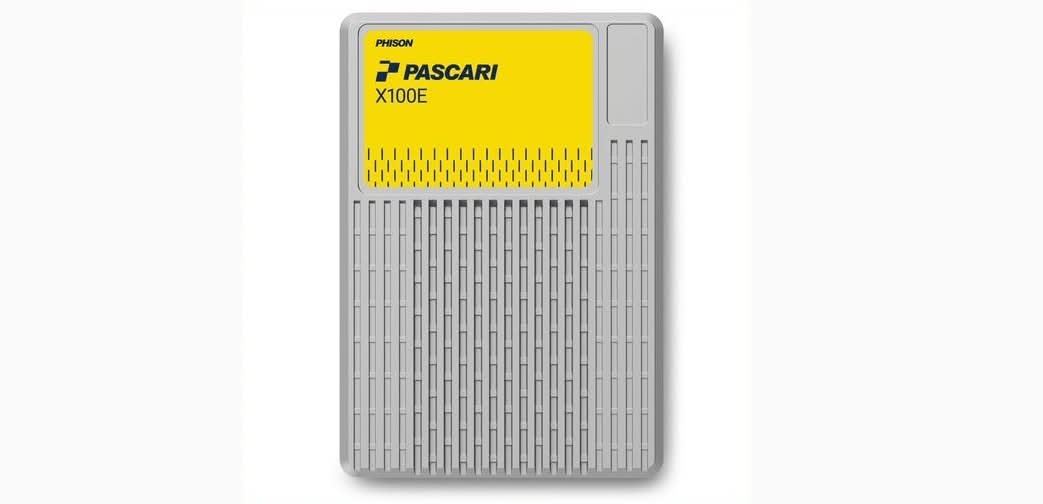

PHISON XX106H006T40E228T1900 Pascari X100E 6.4TB U.2 Dual Port PCIe Gen4x4 Opal SSD
Specifications
Model Number:XX106H006T40E228T1900
Brand: PHISON
Alt Part Number(s):XX106H006T40E228T1900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:XX106H006T40E228T1900
Capacity: 6.4TB
Form Factor: U.2 (100 × 70 × 15 mm)
Security: Opal
Interface: PCIe Gen4x4, Dual Port x2
Advanced Features: AER, Thermal Throttling, Power Loss Protection, Firmware Upgrade, SMBus, NVMe-MI
Compliance: PCIe 4.0, NVMe 1.4, NVMe-MI 1.1
Sequential Read/Write (128KB): 7,000 / 6,800 MB/s
Random Read/Write (4K, QD=64, 8 Workers): 1,600K / 450K IOPS
Latency (4K, QD=1): 100µs / 15µs
Latency (QD=32): 110µs / 120µs
Latency (QD=64): 450µs / 1700µs
QoS (99%, QD=1): 100µs / 12µs
QoS (QD=32): 130µs / 100µs
QoS (QD=64): 600µs / 1800µs
IOPS Consistency: 95%
Power - Random Read/Write: 15.9W / 17.8W
Power - Sequential Read/Write: 11.9W / 19.9W
Power - Idle: 5.88W
Inrush Current: 1.5A
DWPD: 3
TBW: 35.04TB
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
RoHS Compliant
LBA Formats: 512B, 4K, Metadata options
Namespaces Supported: Yes
Port Type: Dual Port
Reservation Support: Yes
Metadata Protection: Yes
Encryption: AES-XTS 256-bit
Data Retention: 3 months
*
