Overview

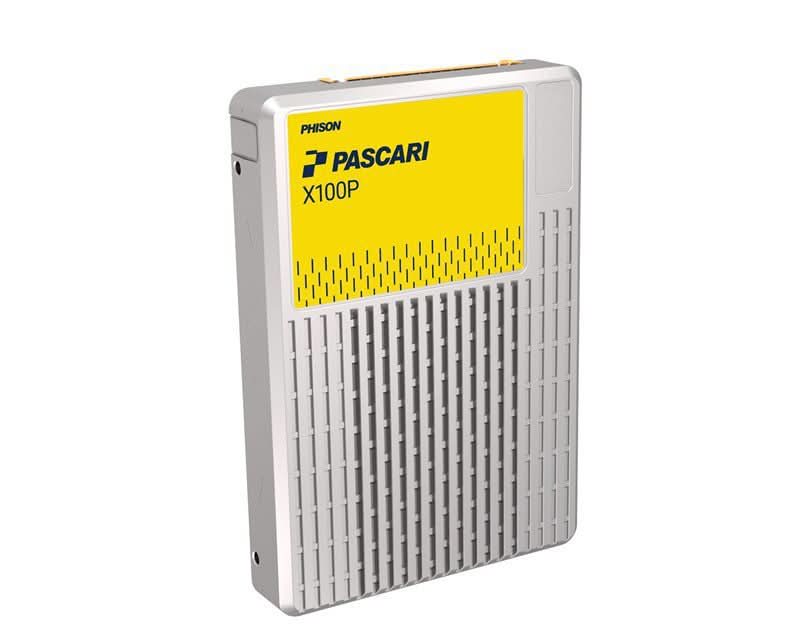

 PHISON XX106H0015T3P2116T300 Pascari X100P 15.36TB U.2 Dual Port PCIe Gen4x4 Opal SSD

Specifications

Model Number:XX106H0015T3P2116T300

Brand:   PHISON

Alt Part Number(s):XX106H0015T3P2116T300

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XX106H0015T3P2116T300

Capacity 15.36TB

Form Factor U.2

Security Opal

PCIe Interface
PCIe Gen4x4
Dual Port x2 lanes
PCIe AER (Advanced Error Reporting)

Maximum Sequential Read / Write 7000MB/s / 6800MB/s

Maximum Random Read / Write 1600KIOPS / 180KIOPS

Sustained Random Read / Write Latency (µs)
100/15 (QD=1, Workers=1)
110/300 (QD=32, Workers=1)
450/3800 (QD=64, Workers=8)

IOPS Consistency 95%

QoS (99%) Read / Write (µs)
100/12 (QD=1, Workers=1)
120/200 (QD=32, Workers=1)
600/3000 (QD=64, Workers=8)

Power Consumption - Random Read / Write (Typical) 16.2W / 19.6W

Power Consumption - Sequential Read / Write (Typical) 12.3W / 20.1W

Inrush Current 1.5A

Idle Power (Typical) 7.32W

DWPD 1DWPD

TBW 28032TB

LBAF 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF 2,500,000 hours

UBER < 1 sector per 10^18 bits read

Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range - Operating 0°C – 70°C with specified airflow

Temperature Range - Storage -40°C – 85°C

RoHS Compliant

Enterprise Features
Namespace
Dual Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption

Support SMBus Yes

Support NVMe-MI (Management Interface)

Data Retention 3 months

Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1

*
