Overview

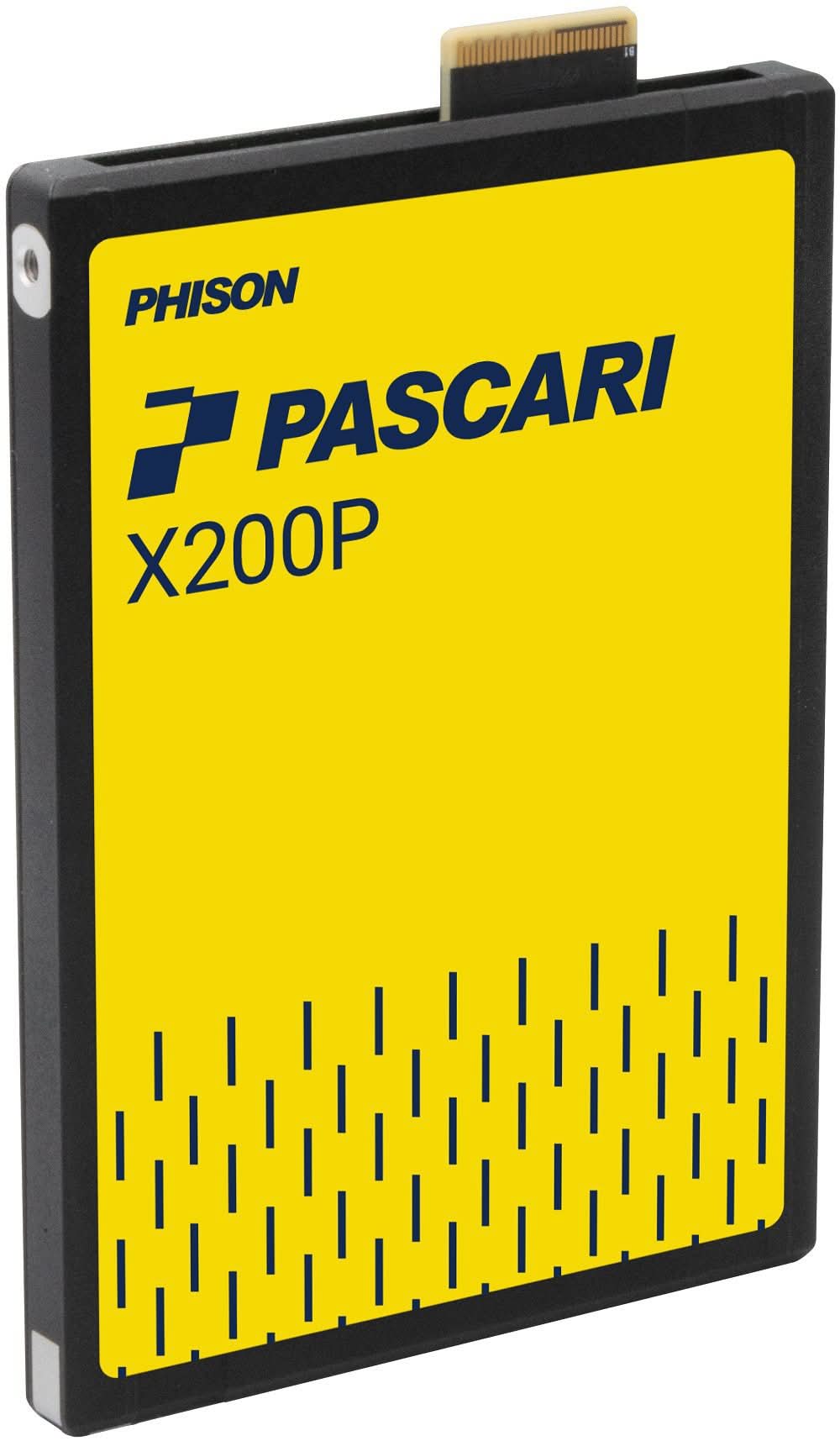

PHISON XP20DH0315T3P3116T310 Pascari X200P 15.36TB E3.S PCIE 5.0 Single Port ISE SSD
Specifications
Model Number:XP20DH0315T3P3116T310
Brand: PHISON
Alt Part Number(s):XP20DH0315T3P3116T310
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:XP20DH0315T3P3116T310
Capacity: 15.36 TB
Form Factor: E3.S
Interface: PCIe Gen5x4
Port Configuration: Single Port x4 lanes
Compliance: PCI Express Base Specification Rev. 5.0, NVM Express Base Specification Rev. 2.0, NVM Express Management Interface Rev 1.2, SNIA SFF-TA-1009/1008
Sequential Read: Up to 14,800 MB/s
Sequential Write: Up to 8,500 MB/s
Random Read: Up to 2,600K IOPS
Random Write: Up to 420K IOPS
Active Power (128K Read): 20 W
Active Power (128K Write): 23 W
Active Power (4KB Read): 22 W
Active Power (4KB Write): 25 W
Random 4KB 70/30 Read/Write Power: 25 W
Idle Power: 5 W
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
DWPD: 1
TBW: 28,032 TB
Operating Temperature: 0°C - 70°C with specified airflow
Non-operating Temperature: -40°C - 85°C
Shock (Operating): 500G, 2ms
Shock (Non-operating): 1000G, 0.5ms
Vibration (Operating): 2.17 Grms (7 - 800 Hz)
Vibration (Non-operating): 16.3 Grms (10 - 2000 Hz)
Drop: 80cm, 6 surfaces
Bending: 50N, 60s
Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Ecological Compliance: RoHS compliant
Features: LBAF 512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes, 128 Namespaces, Single Port, Reservation, Metadata Protection, Thermal throttling, Power Loss Protection, Hardware AES-XTS 256-bit Encryption, SMBus Support
*
