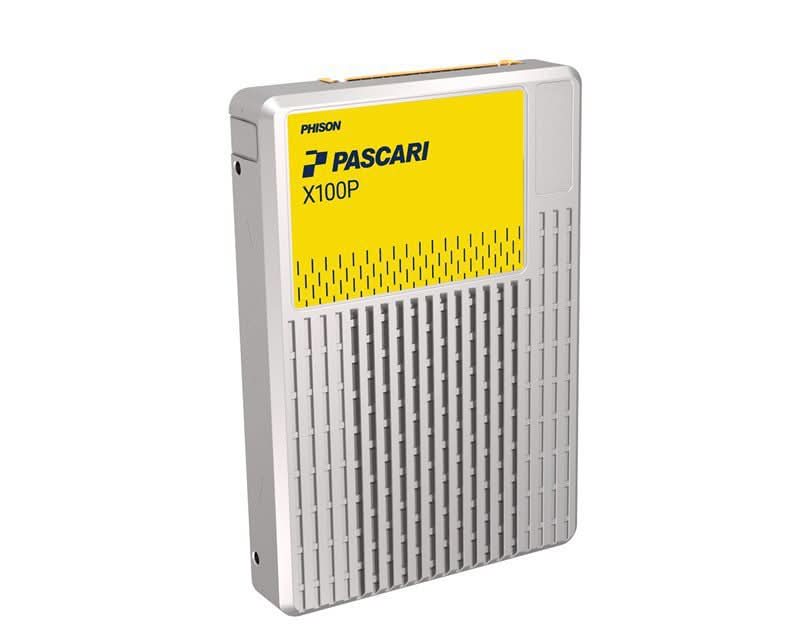

 PHISON XP106H013T84P224T0900 Pascari X100P 3.84TB U.2 Single Port PCIe Gen4x4 SED SSD

Specifications

Model Number:XP106H013T84P224T0900

Brand:   PHISON

Alt Part Number(s):XP106H013T84P224T0900

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XP106H013T84P224T0900

Capacity: 3.84TB

Security: SED

Form Factor: U.2

Interface: PCIe Gen4x4 (Single Port x4 lanes)

NVMe: 1.4

Sequential Read (MB/s): 7,400

Sequential Write (MB/s): 6,900

4K Random Read (IOPS): 1,750K

4K Random Write (IOPS): 195K

Power - Sequential Read (W): 11

Power - Sequential Write (W): 18

Power - Random Read (W): 13

Power - Random Write (W): 15

Power - 70/30 Read/Write (W): 15

Idle Power (W): 5.6

DWPD: 1

TBW: 7,008 TB

MTBF (million hours): 2.5

UBER: < 1 sector per 10^18 bits read

Operating Temp (°C): 0 - 70

Non-Operating Temp (°C): -40 - 85

Shock - Operating: 500G, 2ms

Shock - Non-Operating: 1000G, 0.5ms

Vibration - Operating: 2.17 Grms (200 - 2000Hz)

Vibration - Non-Operating: 16.3 Grms (10 - 2000 Hz)

Drop: 80cm

Bending: 50N

Encryption: AES-XTS 256-bit

Other Features:

• LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

• 64 Namespaces

• Metadata Protection

• Thermal Throttling

• Power Loss Protection

• Reservation Support

• SMBus

Compliance: PCIe 4.0, NVMe 1.4, RoHS

*
