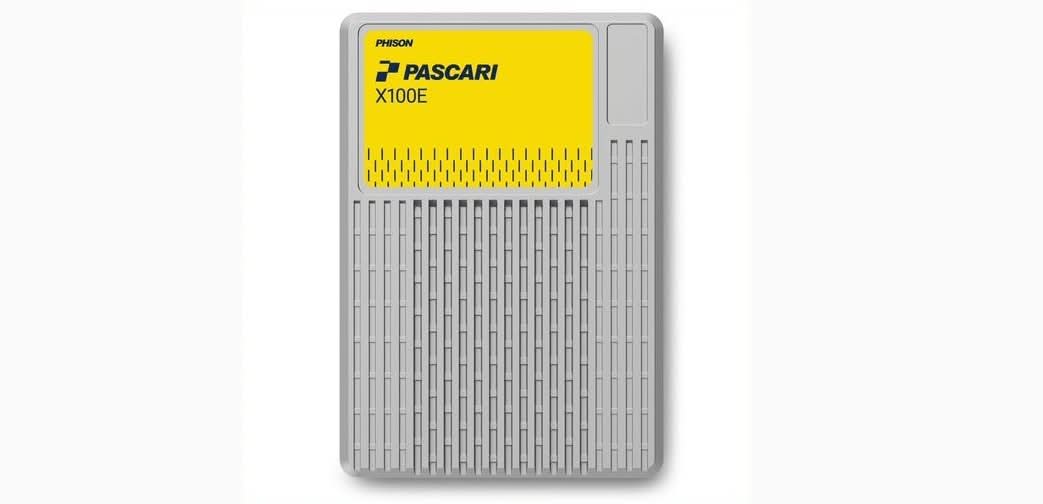

 PHISON XP106H003T20E224T0900 Pascari X100E 3.2TB U.2 Single Port PCIe Gen4x4 Opal SSD

Specifications

Model Number:XP106H003T20E224T0900

Brand:   PHISON

Alt Part Number(s):XP106H003T20E224T0900

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XP106H003T20E224T0900

Capacity: 3.2TB

Security: Opal

Form Factor: U.2

Interface: PCIe Gen4x4, Single Port x4

Advanced Features: AER, Thermal Throttling, Power Loss Protection, Firmware Upgrade, SMBus, NVMe-MI

Compliance: PCIe 4.0, NVMe 1.4, NVMe-MI 1.1

Sequential Read/Write (128KB): 7,000 / 6,700 MB/s

Random Read/Write (4K, QD=64, 8 Workers): 1,600K / 430K IOPS

Latency (4K, QD=1): 100µs / 15µs

Latency (QD=32): 110µs / 120µs

Latency (QD=64): 450µs / 1600µs

QoS (99%, QD=1): 100µs / 12µs

QoS (QD=32): 140µs / 100µs

QoS (QD=64): 600µs / 2000µs

IOPS Consistency: 95%

Power - Random Read/Write: 13.8W / 16.4W

Power - Sequential Read/Write: 11.0W / 18.3W

Power - Idle: 5.83W

Inrush Current: 1.5A

DWPD: 3

TBW: 17.52TB

LBA Formats: 512B, 4K, Metadata options

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read

Flash Management: ECC, Wear Leveling, Bad Block Management, TRIM, SMART, Over-Provision

Operating Temperature: 0°C to 70°C

Storage Temperature: -40°C to 85°C

RoHS Compliant

Data Retention: 3 months

Namespaces Supported: Yes

Port Type: Single Port

Reservation Support: Yes

Metadata Protection: Yes

Encryption: AES-XTS 256-bit

*
