Overview

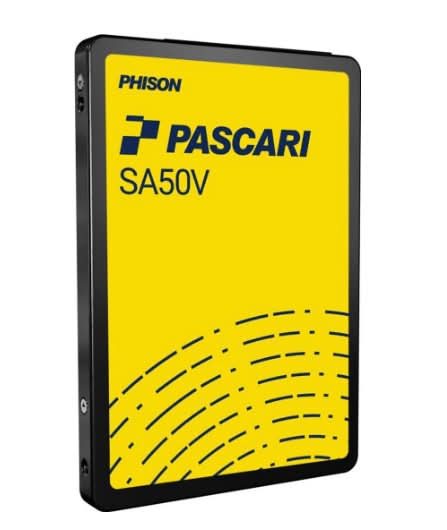

PHISON S1201K0015T3V0116T300 Pascari SA50V 15.36 TB 2.5in SATA III Non-SED SSD
Specifications
Model Number: S1201K0015T3V0116T300
Brand: PHISON
Alt Part Number(s): S1201K0015T3V0116T300
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: S1201K0015T3V0116T300
Capacity: 15.36TB
Security: Non-SED
Form Factor: 2.5" SSD
SATA Interface: SATA Gen3
Compliance: Serial ATA Revision 3.2
Performance
Sequential Read: 530 MB/s
Sequential Write: 500 MB/s
Random Read: 94K IOPS
Random Write: 10K IOPS
Power Consumption
128KB Sequential Read (Average RMS, W): 2.8
128KB Sequential Write (Average RMS, W): 4.2
4KB Random Read (Average RMS, W): 3.5
4KB Random Write (Average RMS, W): 3.9
4KB 70/30 Random Read/Write (Average RMS, W): 3.5
Idle: 1.9 W
Endurance/Reliability
MTBF: 2.0 million hours
UBER: < 1 sector per 10^17 bits Read
DWPD: 0.4
TBW: 11213TB
Environmental Specifications
Temperature Range:
Operating: 0°C ~ 70°C
Non-operating: -40°C ~ 85°C
Shock:
Operating: 1000G, 0.5ms
Non-operating: 1500G, 0.5ms
Vibration:
Operating: 3.08Grms (7 - 800Hz)
Non-operating: 20G (20 - 2000Hz)
Drop: 80cm height
Bending: 50N force
Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Compliant: RoHS compliant
Feature Support
Hardware Based Power Loss Data Protection
Thermal throttling
End-to-End Data Path Protection
TCG Opal 2.0
*
