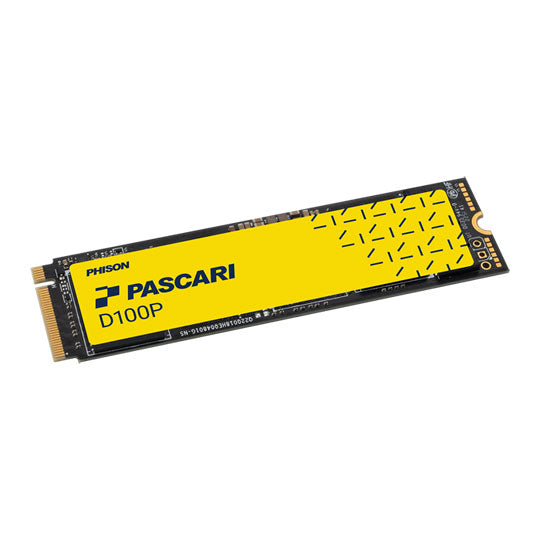

Phison D1802K01960GP011T0200 is a 960GB M.2 2280 enterprise SSD with PCIe 4.0 x4 interface and NVMe 1.4 support, delivering up to 6,000 MB/s sequential read and 1,400 MB/s sequential write speeds. It provides 1 DWPD endurance, 750K IOPS random read, 50K IOPS random write, low latency, and high reliability with 2M hour MTBF and wide operating temperature range.



Specifications

Model Number:  D1802K01960GP011T0200

Brand: PHISON

Alt Part Number(s):  D1802K01960GP011T0200

Product Type: Solid State Drive



Technical Description

Brand: PHISON

Model:  D1802K01960GP011T0200

Form Factor: M.2 2280

Capacity: 960 GB

Interface: PCIe 4.0 x4

NVMe: 1.4

Sequential Read (MB/s): 6,000

Sequential Write (MB/s): 1,400

4K Random Read (IOPS): 750K

4K Random Write (IOPS): 50K

Read Latency (Typ., µs): 75

Write Latency (Typ., µs): 35

Active Power (W): 9.3

Idle Power (W): 3.5

DWPD: 1

UBER: < 1 sector per 10^17 bits read

MTBF (million hours): 2.0

Operating Temperature (°C): 0 - 70

Non-Operating Temperature (°C): -40 - 85
