Description

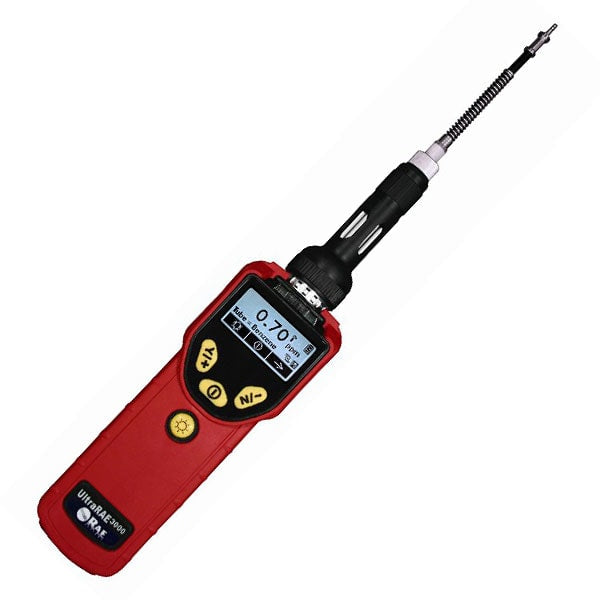

The PGM-7360 is a high-performance portable VOC and benzene-specific monitor designed for industrial and environmental applications. With a broad detection range and fast response times, it is capable of both general VOC monitoring and selective benzene analysis using RAE-Sep™ tubes and a 9.8 eV UV PID lamp. Its rugged build, advanced PID technology, and field-friendly features make it a reliable tool for hazardous site monitoring, emergency response, and plant maintenance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
PGM-7360 |
| Subcategory |
Gas Monitoring System |
| Detection Technology |
Photoionization Detector (PID) with RAE-Sep™ tube integration
|
| VOC Measurement Range |
0.01 to 10,000 ppm
|
| Benzene Measurement Range |
10 ppb to 200 ppm (with RAE-Sep™ tube)
|
| Response Time |
3 seconds (VOC), 60 seconds
|
| Lamp Type |
9.8 eV UV PID lamp
|
| Humidity Compensation |
Built-in humidity sensor with automatic adjustment
|
| Display |
Graphical LCD display with backlight
|
| Sampling Method |
Pumped with see-through probe
|
| Wireless |
Bluetooth (2.4 GHz) or Mesh (900 MHz) options
|
| Datalogging |
Enabled; compatible with ProRAE Studio software
|
| Battery Type |
Rechargeable Li-ion with universal charger or AA alkaline adapter
|
| Construction |
Rugged, handheld, dust and splash resistant (IP65)
|
| Language Support |
Multi-language interface
|
| Applications |
Hazmat response, marine spill, refinery, environmental monitoring
|
| Weight |
2 lbs |
Information About PGM-7360
The PGM-7360 is part of the UltraRAE 3000+ series by RAE Systems, purpose-built for compound-specific volatile organic compound (VOC) detection with exceptional sensitivity. The monitor supports dual-mode operation: a rapid 60-second benzene snapshot or a full 15-minute STEL measurement. The instrument combines Reflex PID Technology™ with a 9.8 eV UV lamp and RAE-Sep™ tubes to ensure accurate detection of benzene and similar target compounds. Enhanced with real-time wireless capability and rugged ergonomics, the PGM-7360 is suited for tasks such as hazmat response, refinery inspections, and marine spill evaluation.
Key Features:
- Dual Detection Modes: Provides both a 60-second snapshot and a 15-minute STEL assessment for benzene exposure.
- Wide Detection Range: Measures VOCs from 0.01 to 10,000 ppm and benzene from 10 ppb to 200 ppm.
- Advanced PID Technology: Incorporates Reflex PID with fast 3-second VOC response time and high linearity.
- Integrated Wireless Capability: Built-in Bluetooth or optional RAELink3 Mesh for remote data transmission.
- RAE-Sep™ Tube Technology: Delivers compound-specific results using preloaded separation tubes.
- Environmental Durability: IP65-rated construction ensures dust-tight and splash-resistant operation.
- Humidity Compensation: Built-in humidity sensor and temperature-controlled sample timing.
- Instant Tube Visibility: See-through sampling probe allows for rapid visual confirmation of breakthrough.
- Tool-Free Maintenance: Quick access to lamp, battery, and sensor without tools.
- Multi-language Support: Operates in a wide range of languages for global field deployment.
The PGM-7360 delivers reliable compound-specific detection and advanced connectivity for real-time hazardous environment assessment.
