Description

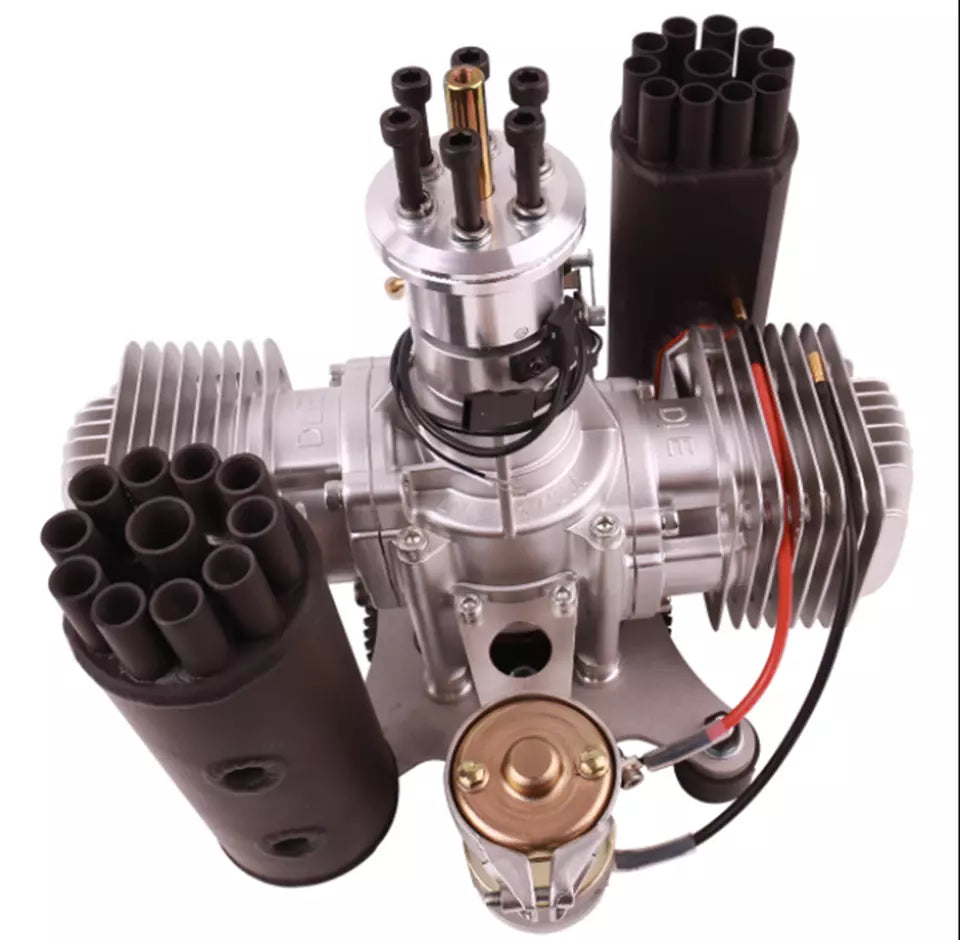

The DLE170M EFI is a high-performance gasoline engine featuring an integrated one-key electric starter and generator. Designed for paramotors, UAVs, and advanced aerospace applications, this engine offers 17.5 HP at 7500 RPM with a compact and durable planetary gear starter system. It includes a 14V/350W generator that supports onboard electronics during operation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Paramotor Engine |
| Category |
|
| Part Number |
DLE170M |
| Subcategory |
Paramotor Engines |
| Engine Type |
2-stroke, air-cooled gasoline engine
Performance Output 17.5 HP @ 7500 RPM |
| Performance Output |
17.5 HP @ 7500 RPM |
| Displacement |
170 cm³ |
| Bore × Stroke |
52 mm × 40 mm |
| Compression Ratio |
9.5:1 |
| Lubrication Ratio |
30:1 |
| Recommended Propellers |
32x10, 32x12 |
| Spark Plug |
NGK CMR7H |
| Starting Motor |
12V 400W planetary gear starter |
| Generator Voltage |
14.5V |
| Generator Output |
350W @ 6000 RPM |
| Starter Behavior |
Output gear retracts after ignition |
| Weight |
5900 g (13.0 lbs) |
Information About DLE170M
The DLE170M is the latest generation of the DLE M-series engine line, upgraded for enhanced starting reliability and onboard power generation. It combines an EFI-ready design with a planetary gear starter that engages only during startup, ensuring minimal drag and extended durability. The engine features a 170cc displacement, NGK CMR7H spark plug compatibility, and optimal performance with 32x10 or 32x12 propellers. It is well-suited for ultralight aviation, offering both power and system integration through its 14.5V/350W generator at 6000 RPM.
Key Features:
- High Output Power: Delivers 17.5 HP at 7500 RPM for powerful flight performance.
- Integrated Starter System: Planetary gear starter engages only during startup, reducing wear.
- Onboard Generator: Provides 14.5V at 350W output for powering electrical components.
- Compact and Lightweight: Total engine weight with muffler is approximately 5.9 kg.
- Advanced Durability: High torque starter motor (12V 400W) built for extended use.
- Optimized Propulsion: Supports 32x10 or 32x12 propellers for efficient thrust.
- Precision Ignition System: Compatible with NGK CMR7H spark plugs for reliable ignition.
- Modular Design: Components like relay, igniter, and rectifier designed for quick service.
The DLE170M delivers the reliability and integrated functionality required for demanding paramotor and UAV missions.
