Description

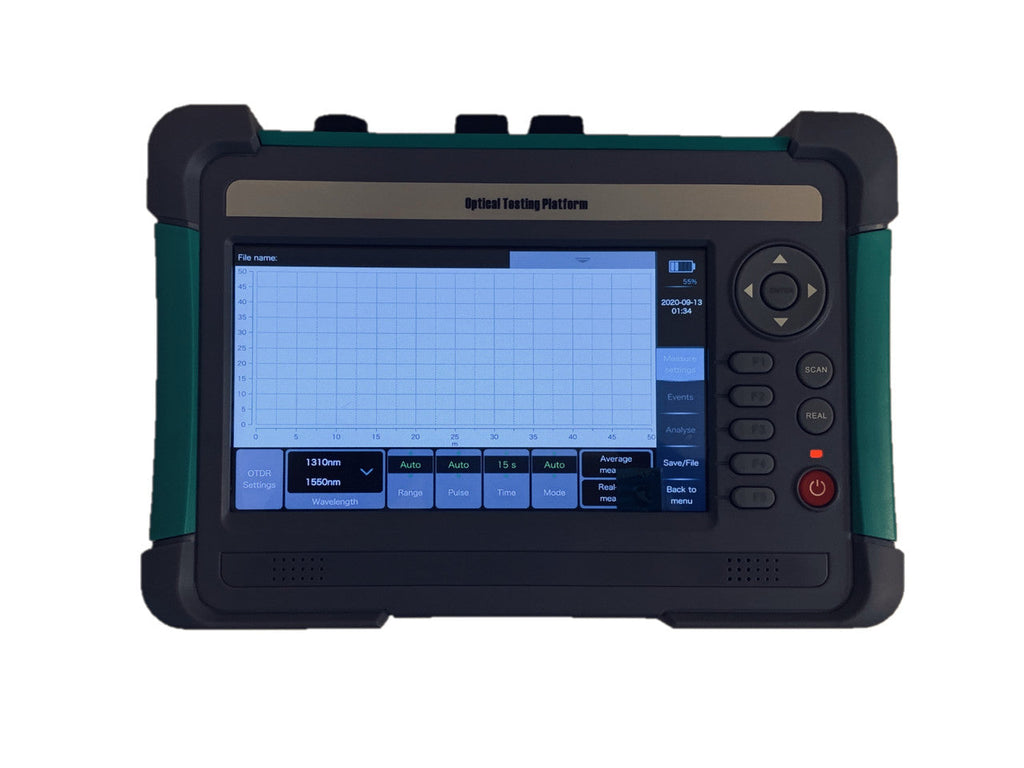

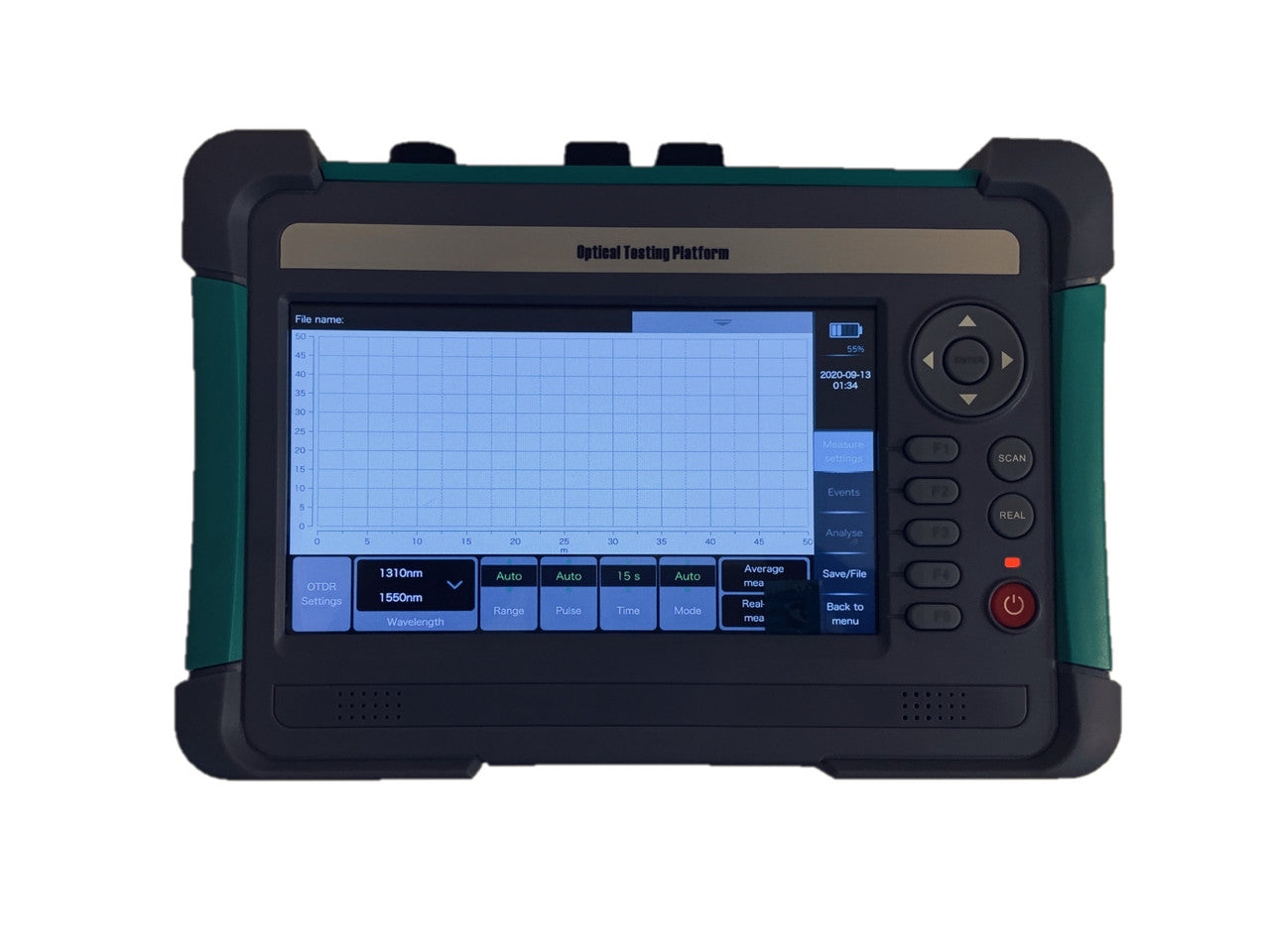

The OTDR-7001 Optical Time Domain Reflectometer is the most powerful fiber optic testing tool from ROBOfiber, including an Optical Power Meter, Visual Fault Locator and a large 7" color touchscreen interface. Such tool allows management and data storage for more than 10,000 measurements. The OPM embedded in OTDR-7001 has a +26 to -50dBm sensitivity and the VFL has a 1mW power for local fiber circuit troubleshooting. The OTDR-7001 has a 7" multi-touch LCD display and features multiple USB interfaces, Ethernet and Bluetooth that allow 24/7 measuring with a help of a PC. It also has internal memory and a TF card for extra storage on measurements that can extend measurement storage for long periods of time.
OTDR-7001 has stand panel, shoulder strap and package includes AC power cord and AC adapter as well as SC/UPC and FC/UPC optical connector adapters. The OTDR unit has its own internal (and replaceable) Li-Po rechargeable battery. The OTDR-7001 is a powerful tool that allows measuring of optical fibers efficiently, being an indispensable tool for any fiber professional user.
Features
- Built-in VFL and OPM functions extra to the main OTDR functions
- 7" color multi-touch screen LCD
- Multi-wavelength testing and display
- Factory calibration for 850/1300/1310/1490/1550/1625nm wavelengths
- USB, Ethernet and optional WiFi and Bluetooth connections for PC data retrieval are available
- Handheld portable design with rechargeable LiPo battery
Technical Specifications
| Model | OTDR-7001 |
| Wavelength | 1310nm/1550nm/1625nm |
| Dynamic Range | 36/34dB |

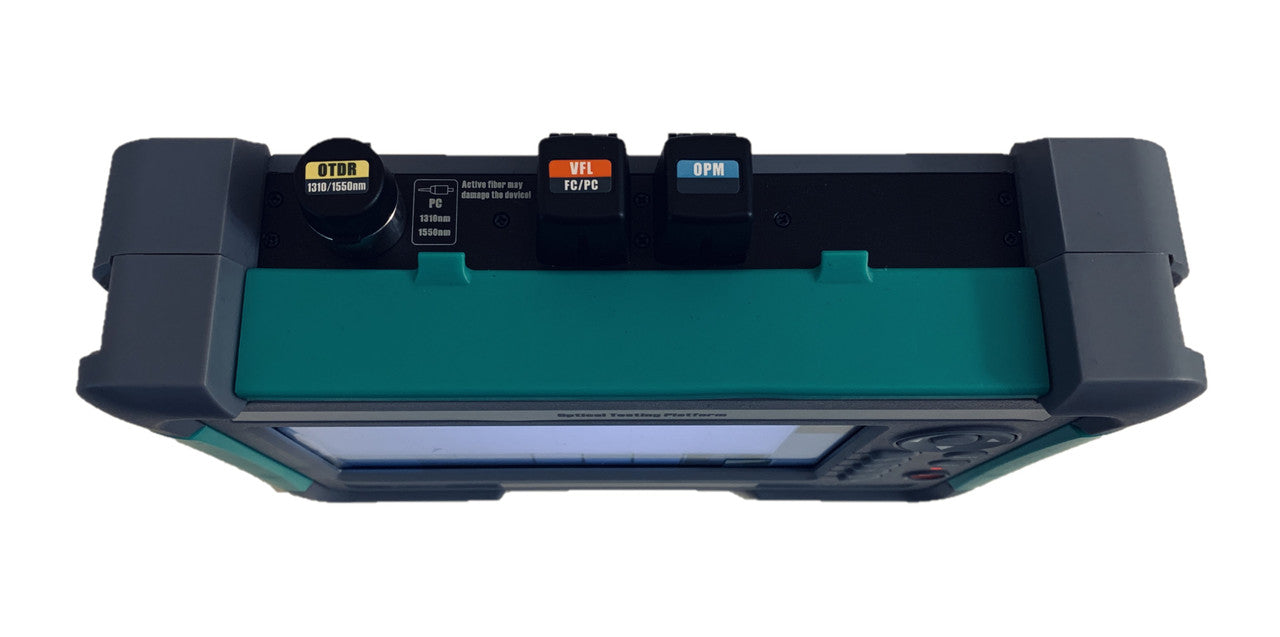

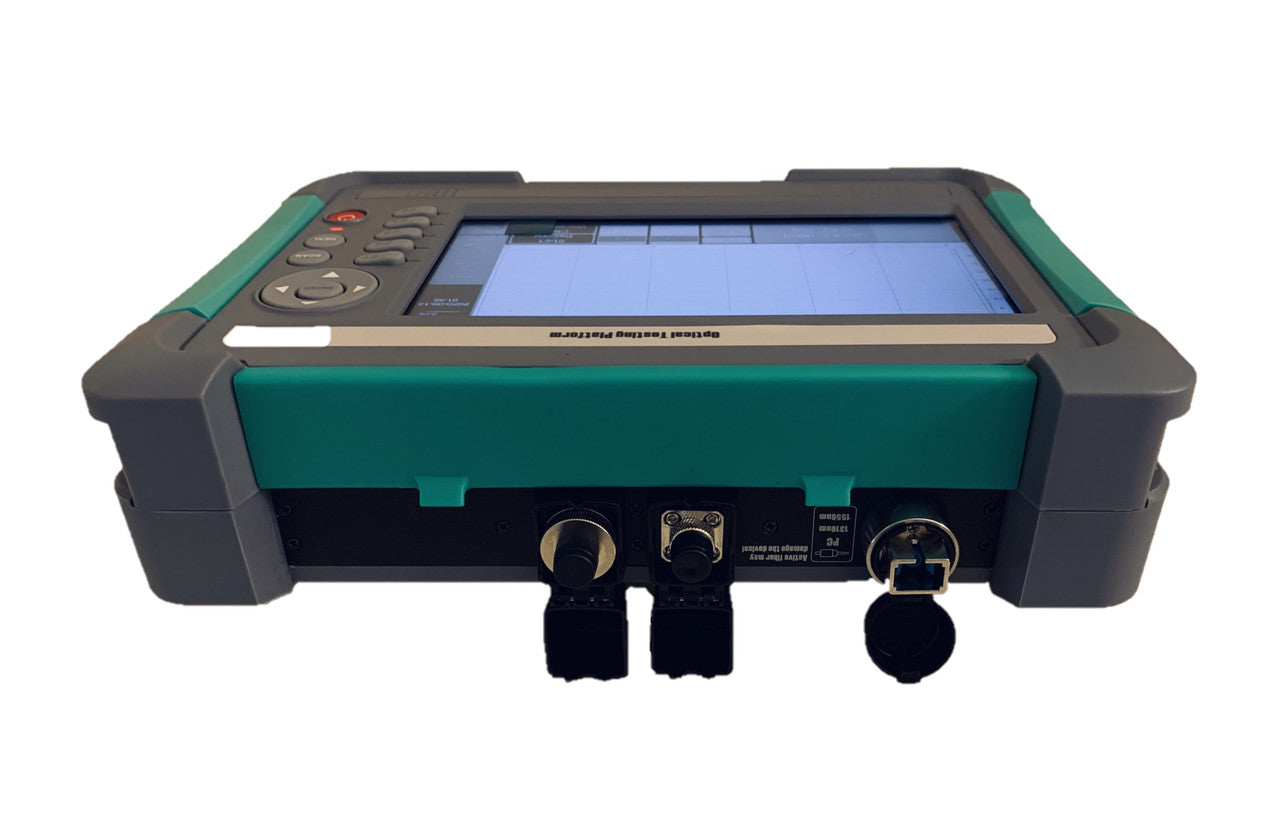

| OTDR Connector | SC/UPC, FC/UPC or customized |
| Pulse Width | 5ns to 10 microseconds |
| Measuring Time | 5 to 180 seconds |
| Attenuation Dead Zone | 4 meters |
| Event Dead Zone | 1.5 meters |

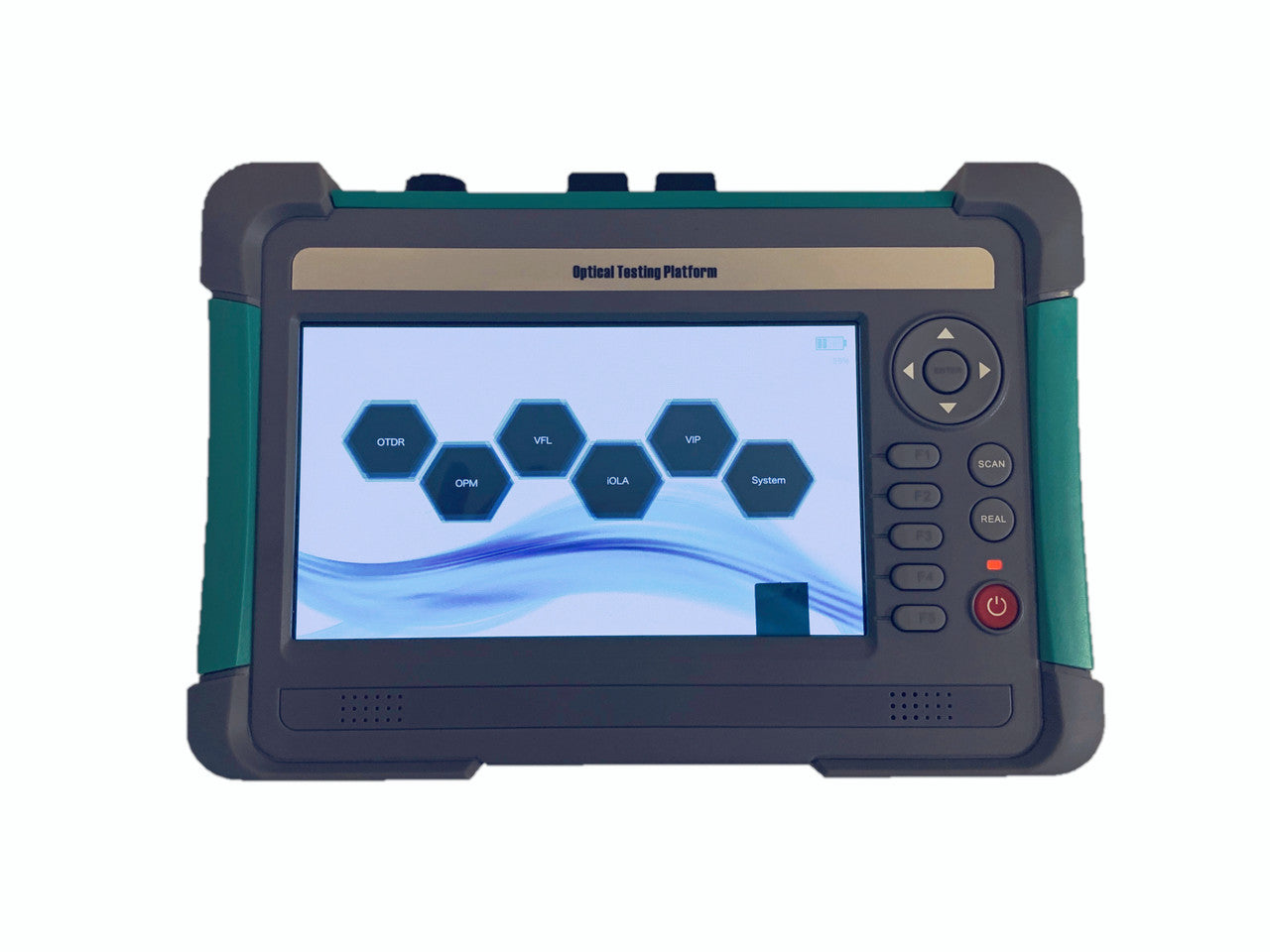

| LCD | 7" TFT LCD multi-touch screen |

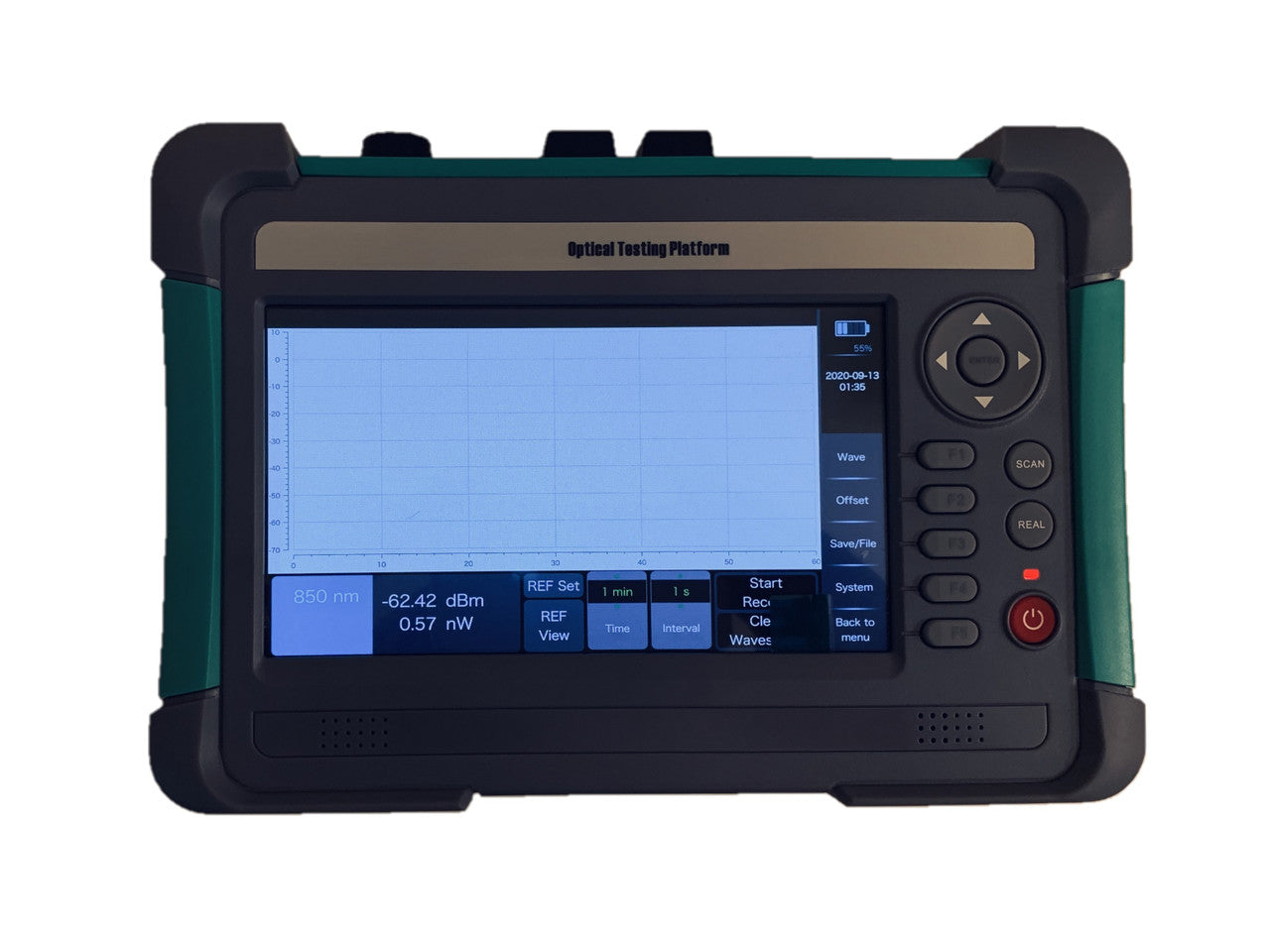

| OPM Function | +26~-50dBm, 850/1300/1310/1490/1550/1625nm, 2.5mm UPP |
| VFL Function | 1mW |
| Storage | Internal memory and optional TF card |

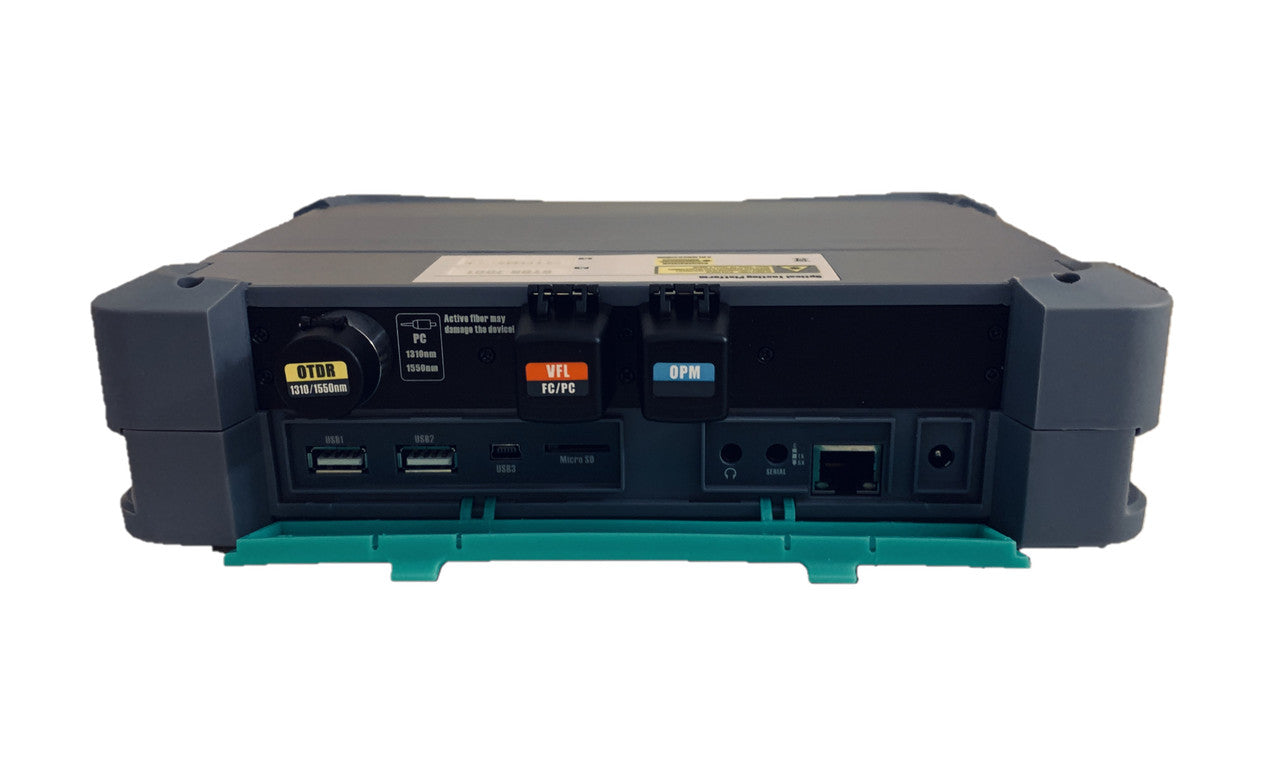

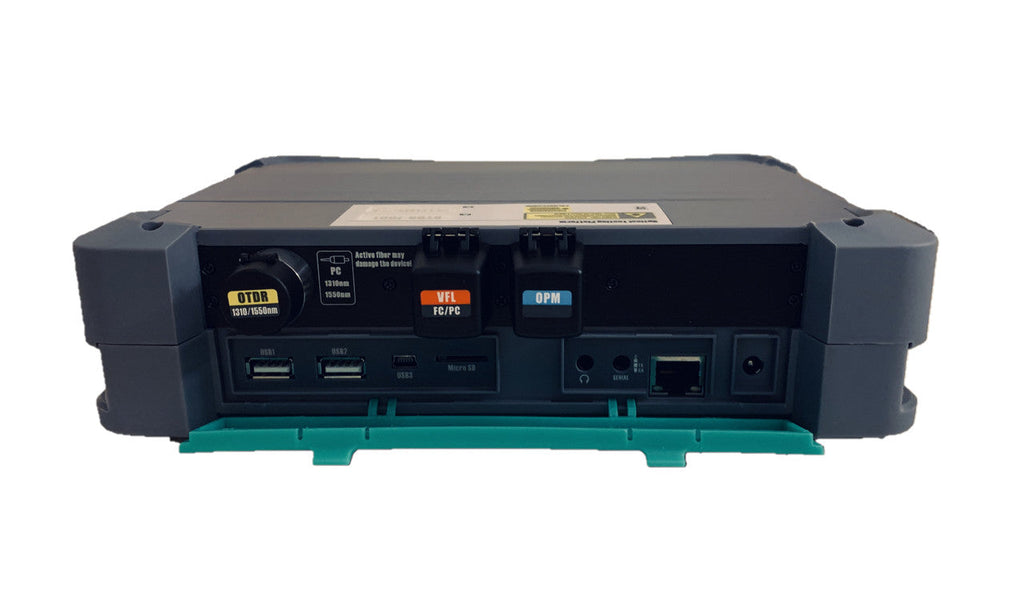

| Data Interface | micro USB 2.0, USB, Ethernet RJ-45 |
| Battery | 3.7V @ 4600mAh Lithium Polymer battery |
| Size | 247mm * 174mm * 70mm |
| Weight | 1,550g |
| Storage Temperature | -20~+60 Celsius, humidity<90% non-condensing |
| Operating Temperature | -10~+50 Celsius, humidity<90% non-condensing |
| Warranty | 2 years |
Additional information on the OTDR-7001-P Optical Time Domain Reflectometer (includes OPM and VFL in one):
PDF Datasheet
