Description

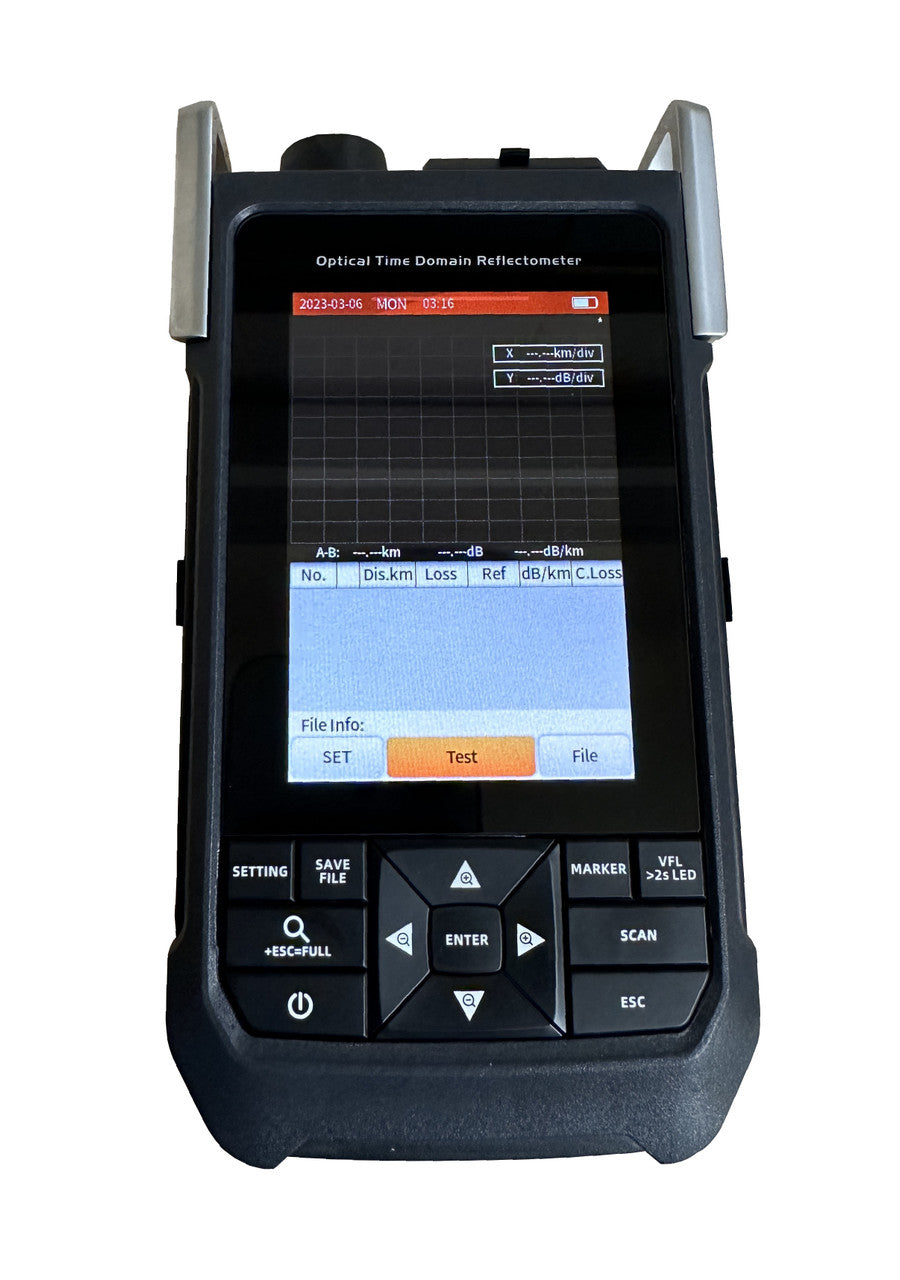

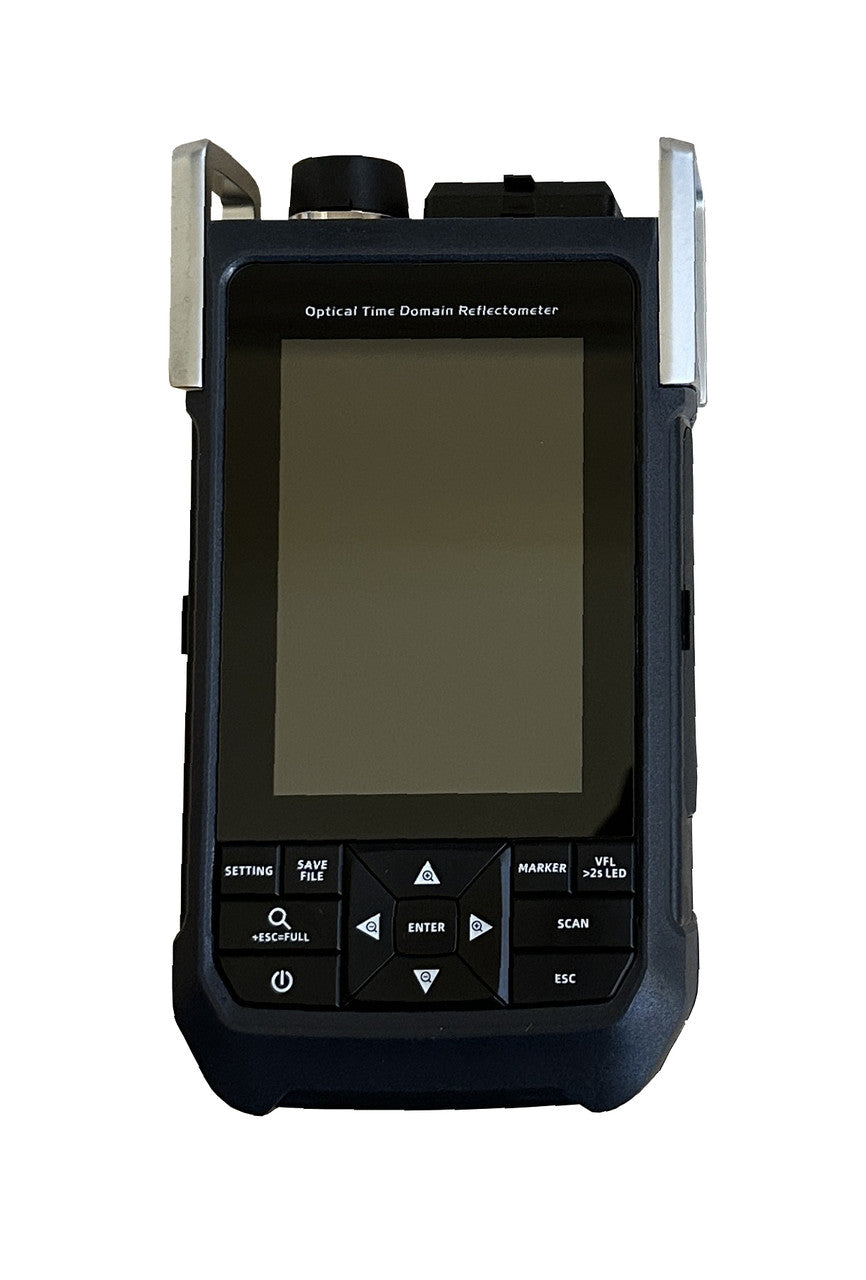

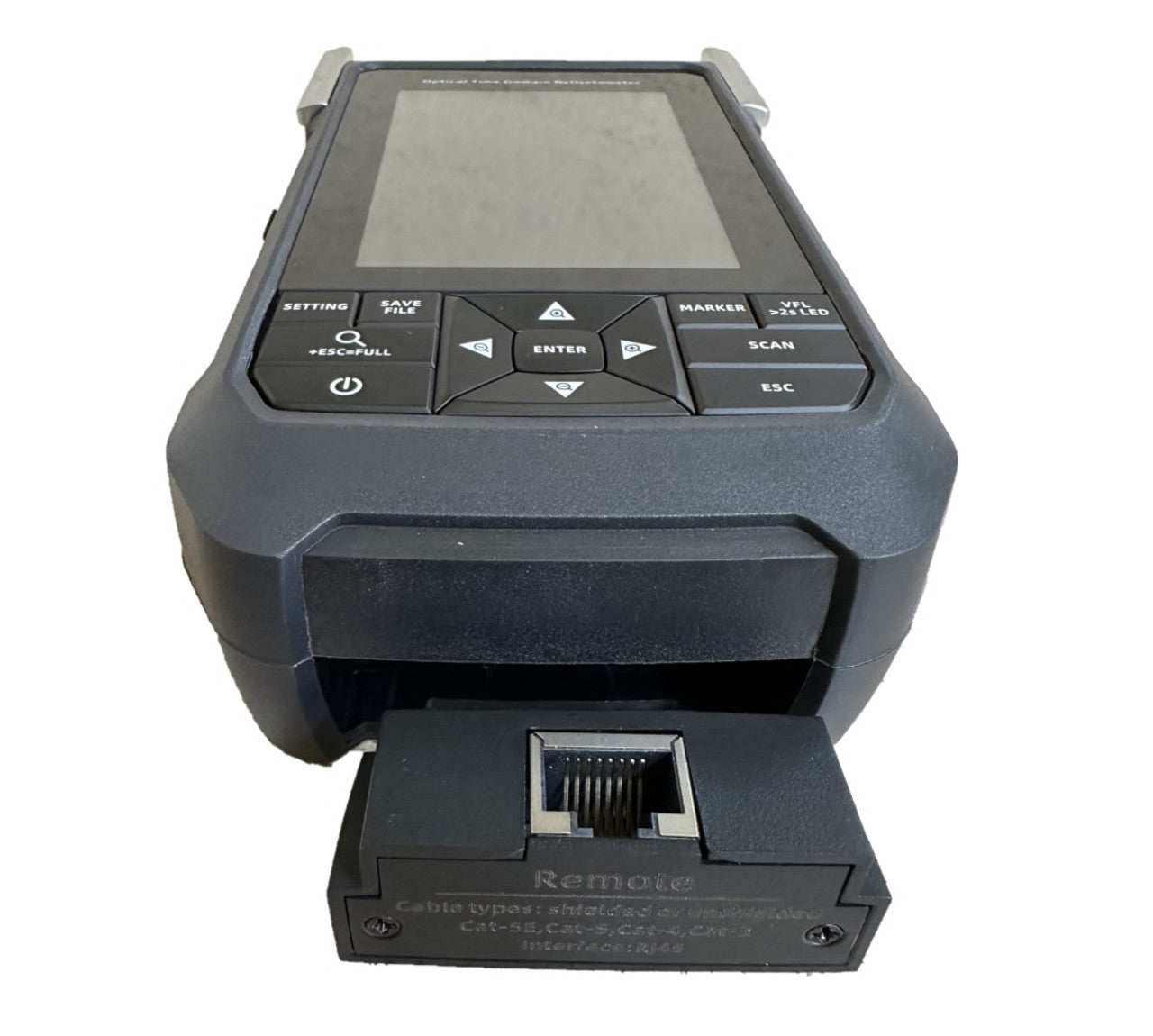

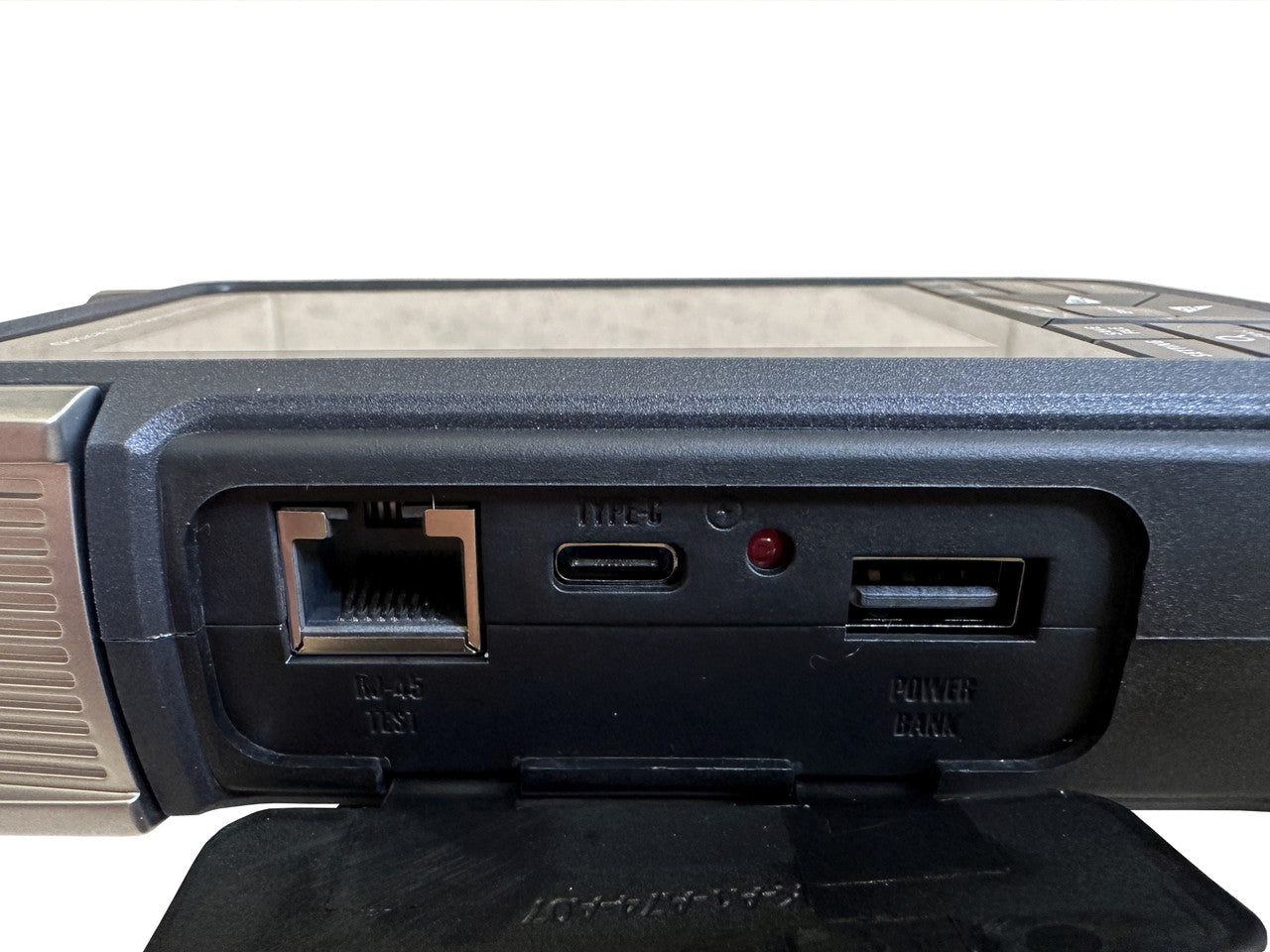

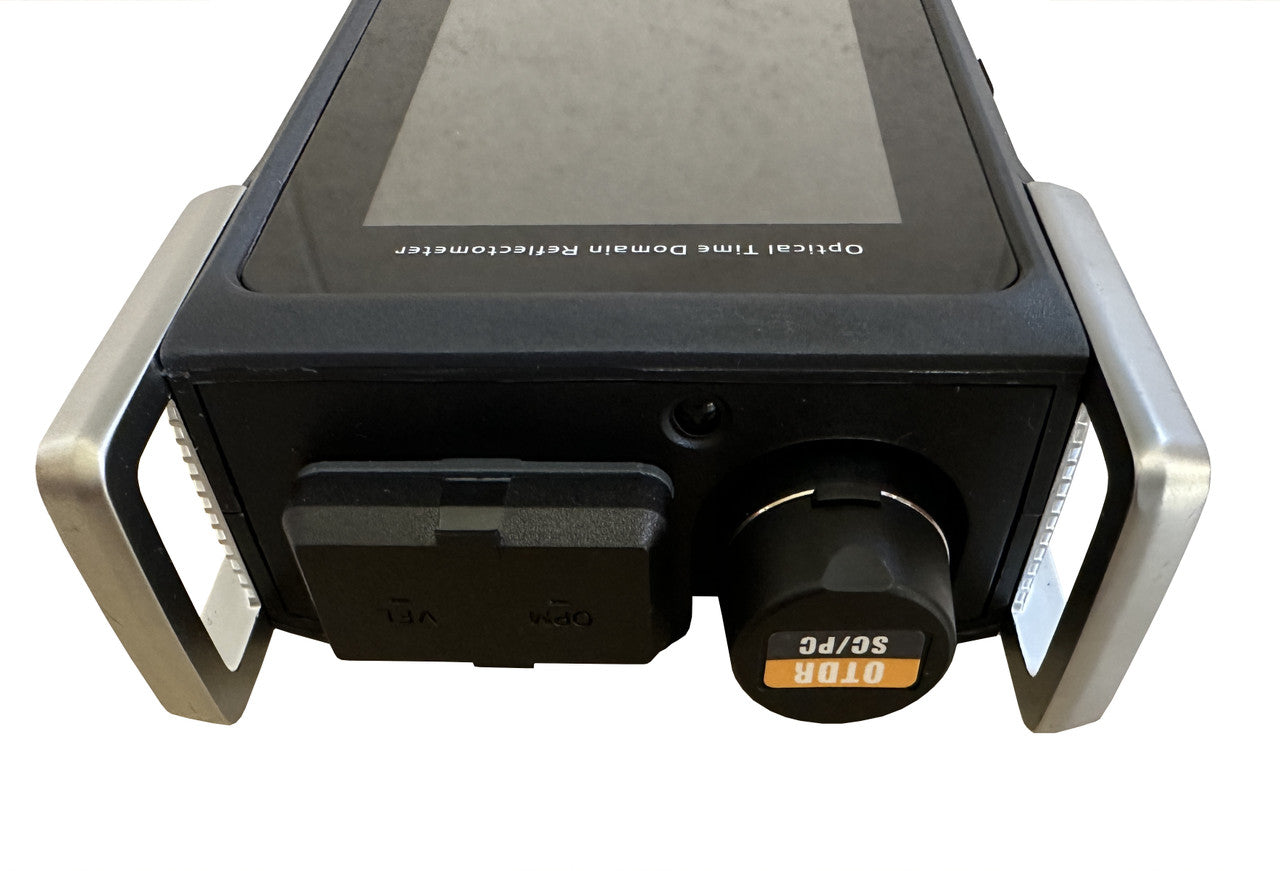

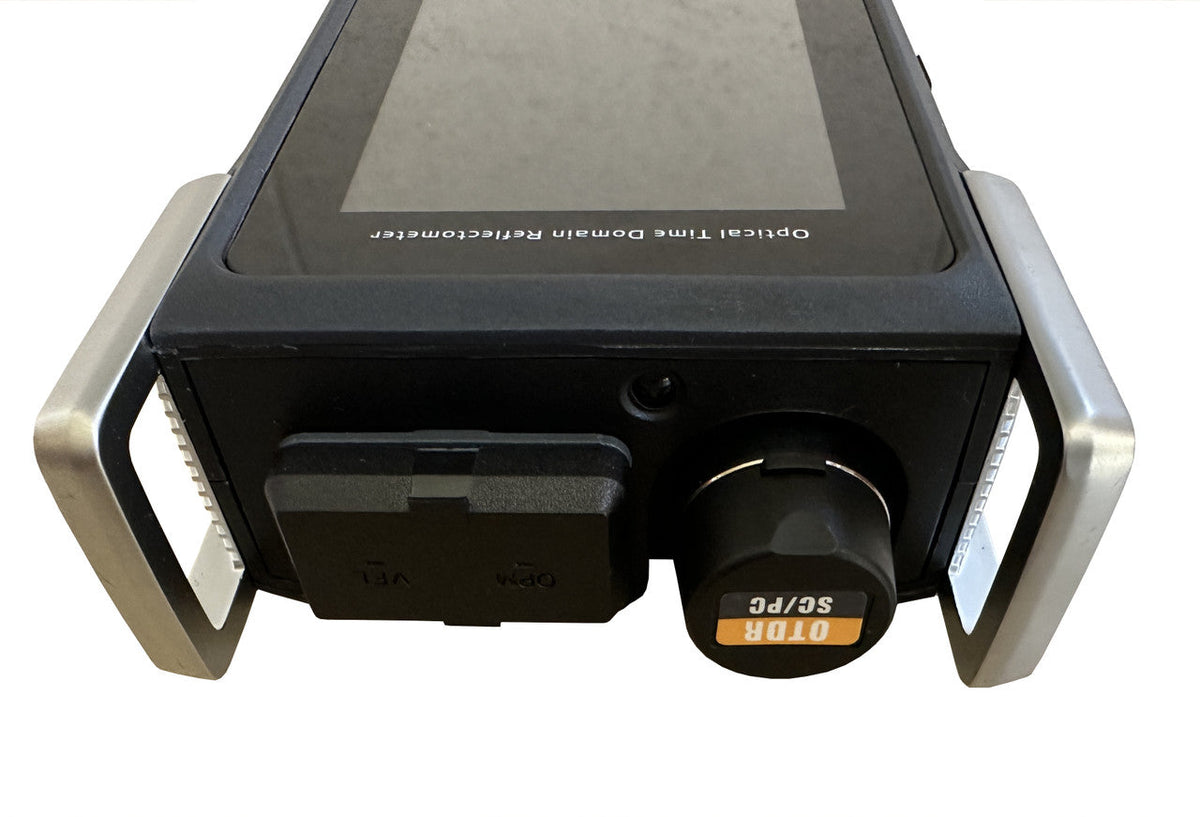

The OTDR-3600 Optical Time Domain Reflectometer is a powerful fiber optic testing multitool that includes an Optical Power Meter (OPM), an Optical Laser Source (OLS), a Visual Fault Locator(VFL), an RJ-45 wiring tester with RJ-45 remote and even a flashlight LED. The OTDR-3600 has a 4" TFT LCD display and features an USB interface that allows 24/7 measuring with a help of a PC. It also has internal memory for storage on measurements that can extend measurement storage for long periods of time.
OTDR-3600 has an black rubber protective case and package includes an USB to PC connectivity cable. The OTDR unit has its own internal (and replaceable) Li-Po rechargeable battery. The OTDR-3600 is a complete tool that allows measuring of active fibers efficiently, being an indispensable tool for any fiber professional user.
Features

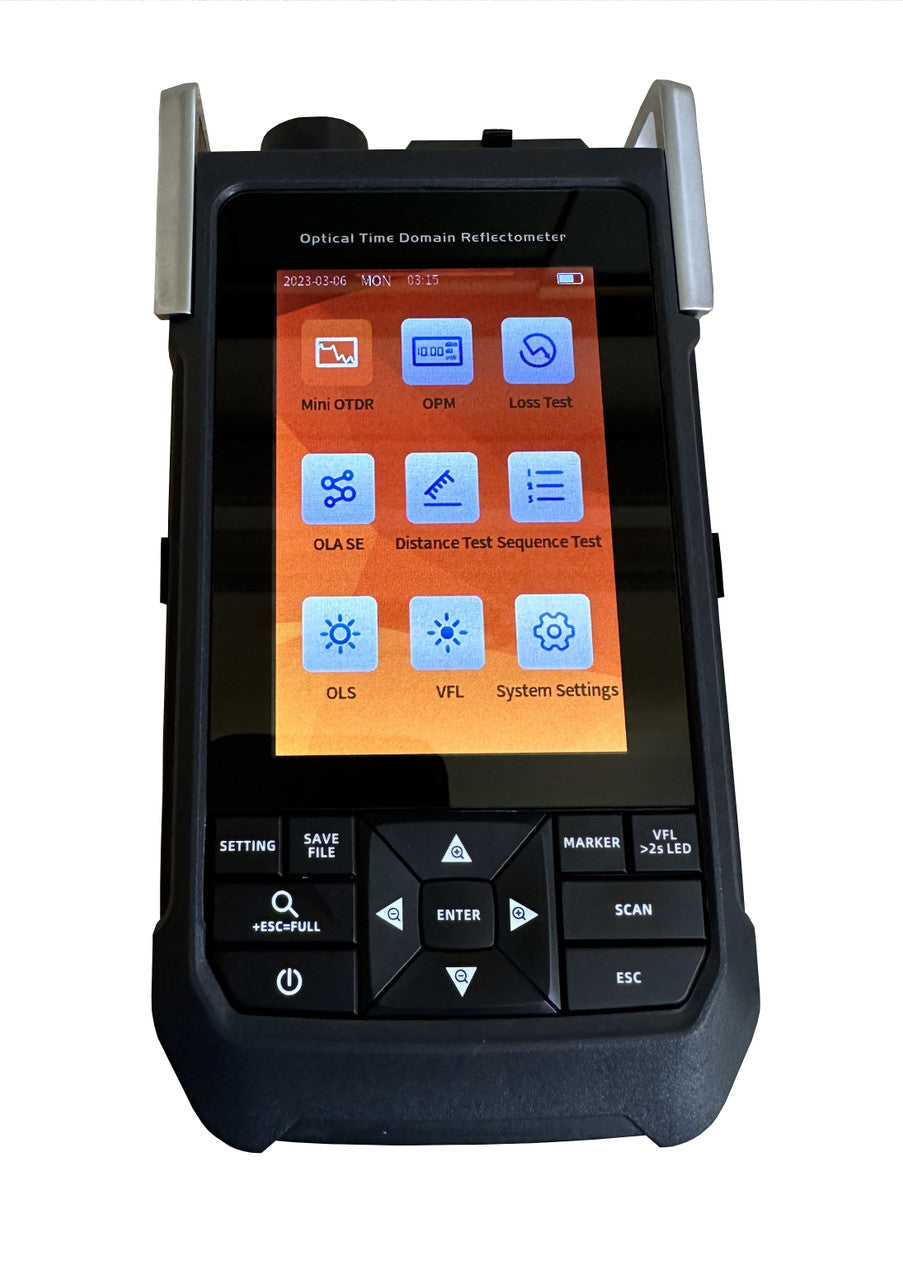

- Built-in OPM/OLS/VFL functions extra to the main OTDR functions
- 4" color TFT LCD display, touch screen
- One button test
- Facile operating interface
- USB connection for PC data retrieval and battery recharging
- Handheld portable design with rechargeable LiPo battery
Technical Specifications
| Model | OTDR-3600 |
| Wavelength | 1310nm/1550nm |
| Dynamic Range | 28/26dB |

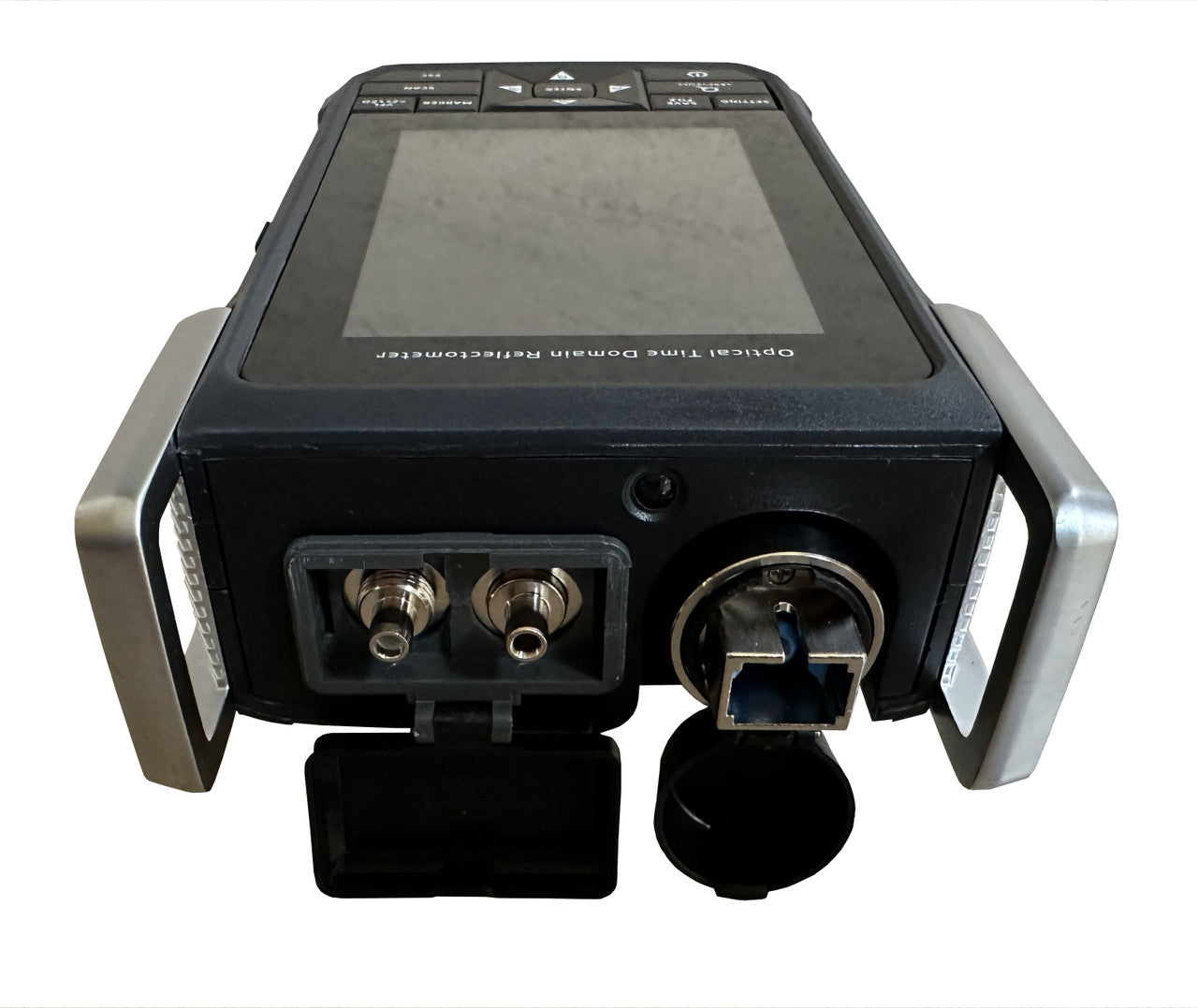

| OTDR Connector | SC/UPC and FC/UPC or customized |
| Pulse Width | 5ns to 10 microseconds |
| Measuring Time | 5 to 180 seconds |
| Attenuation Dead Zone | 6 meters |
| Event Dead Zone | 1 meter |
| LCD | 4" TFT LCD display (touch screen) |

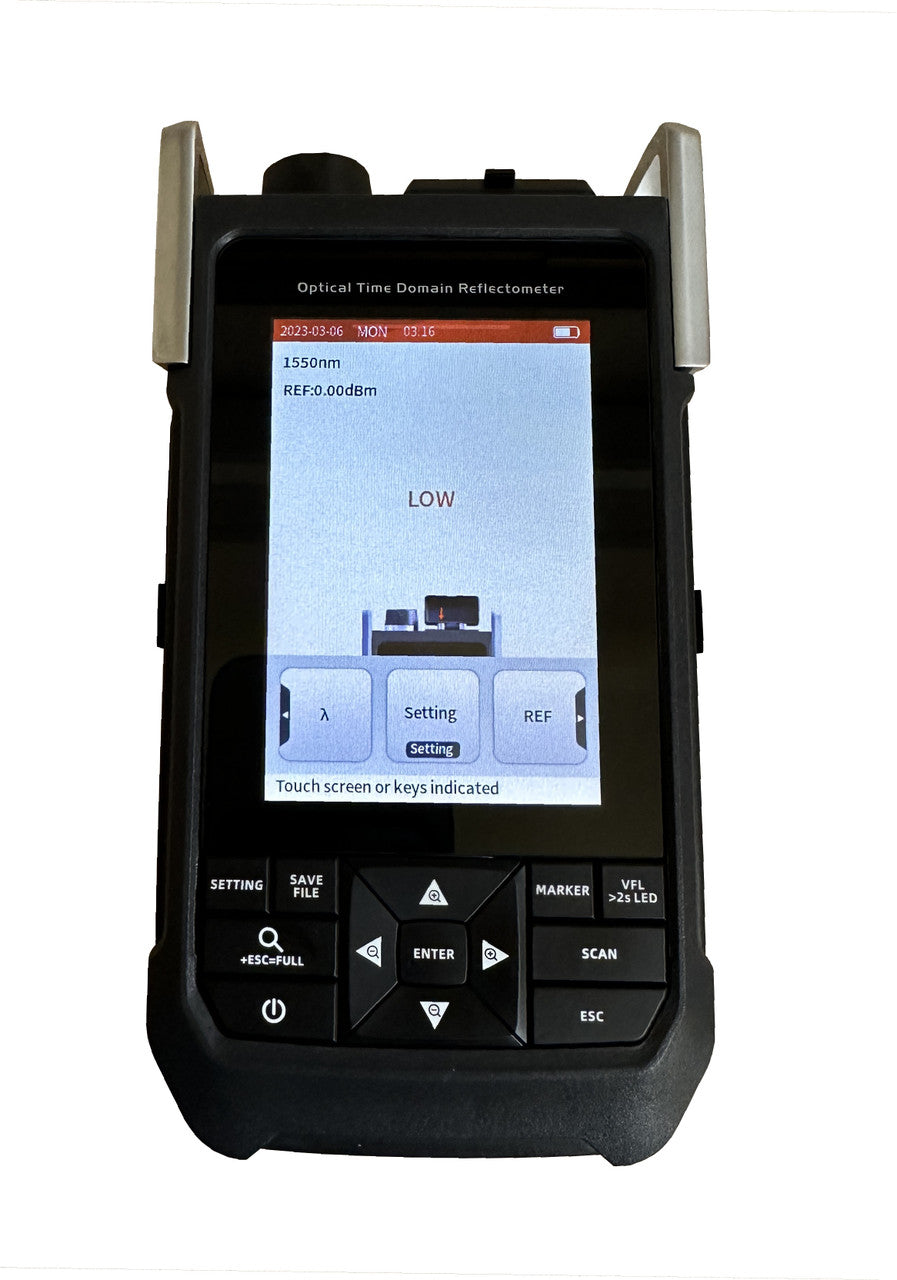

| OPM Function | +26~-50dBm, 850/1300/1310/1490/1550/1625nm, 2.5mm UPP |
| OLS Function | same wavelength and connector as the OTDR port |
| VFL Function | 10mW |
| Storage | Internal memory |
| Data Interface | Type C USB interface |
| Battery | 3.7V @ 3700mAh Lithium Polymer battery |
| Size | 160mm * 85mm * 38mm |
| Weight | 430g |
| Storage Temperature | -20~+70 Celsius, humidity<90% non-condensing |
| Operating Temperature | -10~+50 Celsius, humidity<90% non-condensing |
| Warranty | 2 years |
Additional information on the OTDR-3600 Optical Time Domain Reflectometer (includes VFL 10mW):
PDF Datasheet
