Description

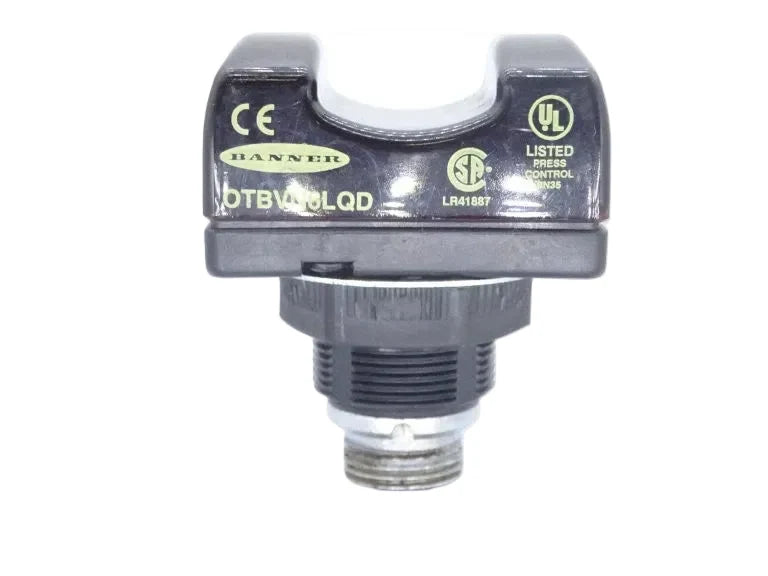

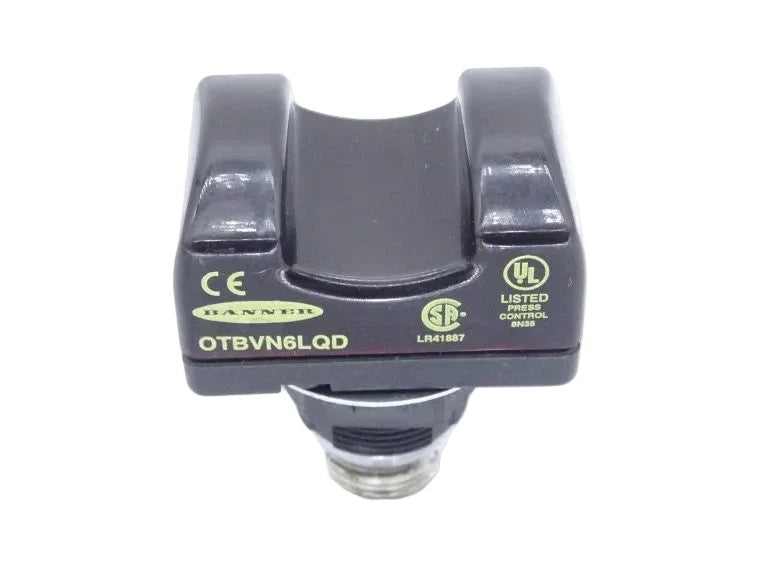

The Banner Engineering OTBVN6LQD is a momentary-action touch button sensor designed for reliable operator input in industrial control environments. It uses optical sensing technology to provide responsive actuation without mechanical wear while operating on a 10–30 VDC supply. This non-illuminated push button is intended for panel-mounted applications requiring durable and precise user interaction.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Industrial Controls |
| Part Number |
OTBVN6LQD |
| Subcategory |
Touch Buttons |
| Series |
OTB Series |
| Operation |
Momentary |
| Sensing Mode |
Optical |
| Output Type |
NPN |
| Contact Form |
SPDT |
| Supply Voltage |
10–30 VDC |
| Connection Type |
Integral QD |
| Number of Pins |
4 |
| Mounting Hole Size |
30 mm |
| Base Diameter |
30 mm |
| Housing Material |
Lexan |
| Illumination |
Non-illuminated |
| IP Rating |
IP66 |
| Operating Temperature |
-20°C to 50°C |
| Weight |
0.218 kg |
Information About OTBVN6LQD
The OTBVN6LQD is part of Banner Engineering’s OTB Series, which is engineered to deliver robust touch-based input devices for industrial automation systems. It features a solid Lexan housing designed to withstand repeated use and exposure to demanding operating conditions. The device supports NPN output signaling and integrates easily into control systems through an integral quick-disconnect interface. Its optical sensing method eliminates mechanical contacts, enhancing longevity and consistency in operator interface applications.
Key Features:
- Momentary Touch Operation: Provides responsive, non-latching actuation for control inputs.
- Optical Sensing Technology: Eliminates mechanical wear for extended service life.
- Standard Panel Mount Size: Fits a 30 mm mounting hole for easy installation.
- NPN Output Configuration: Compatible with common DC control and PLC systems.
- Durable Housing Construction: Lexan material supports industrial use and repeated actuation.
- Environmental Protection: Rated IP66 for resistance to dust and water ingress.
- Integral Quick Disconnect: Simplifies wiring and system integration.
The OTBVN6LQD delivers the reliability and precision required for operator interface and control input applications in industrial automation systems.
