Description

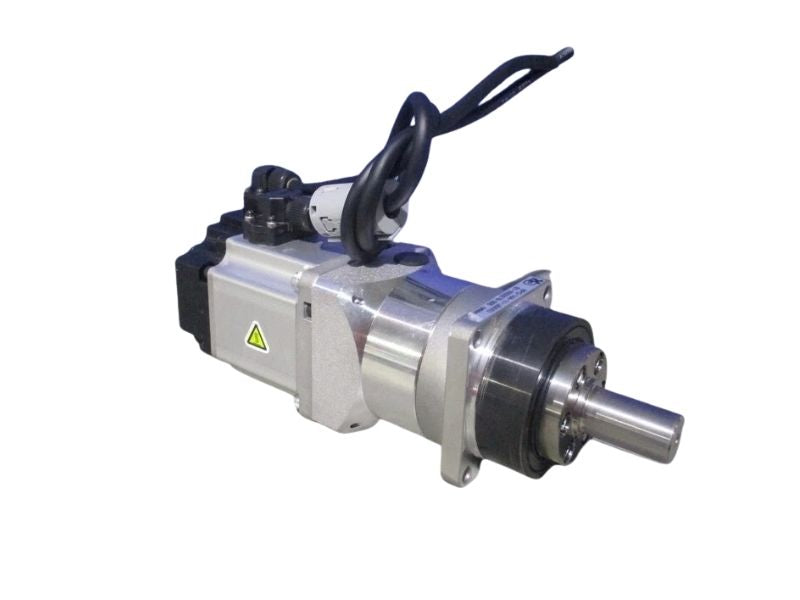

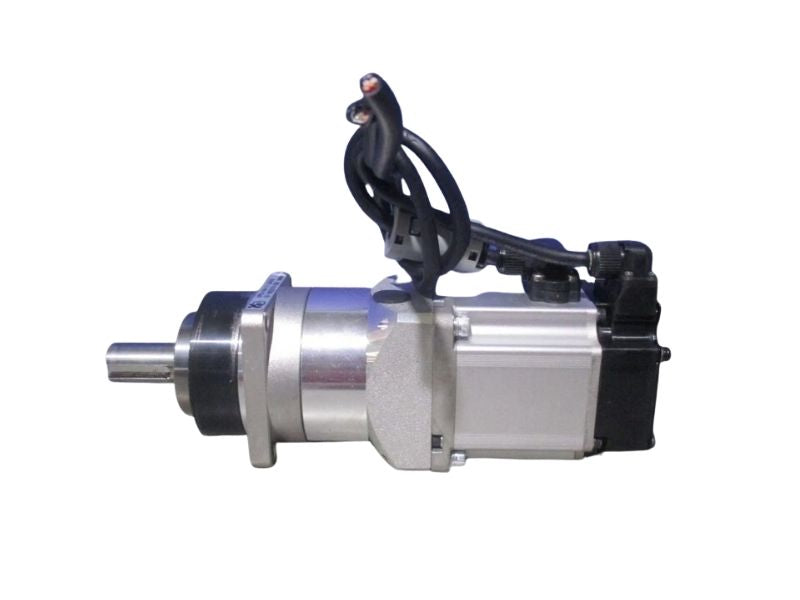

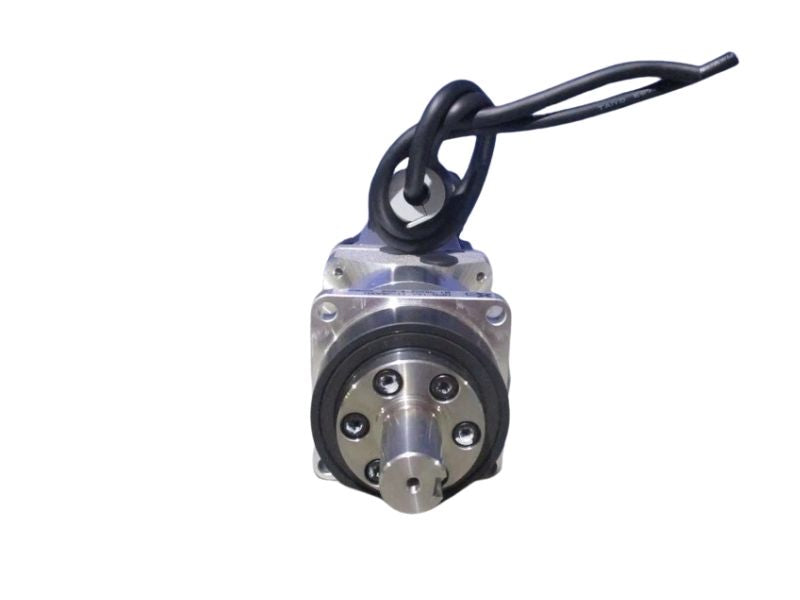

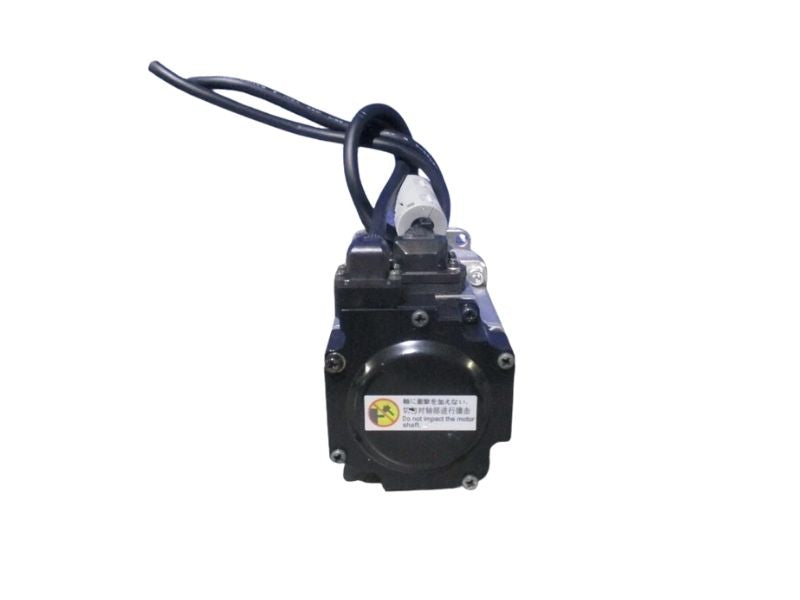

The Omron R88M-K20030L-S2 is a 200 W AC servomotor designed for precise motion control in industrial automation applications. It operates at a rated speed of 3000 RPM and provides accurate positioning through an incremental encoder. This motor is commonly used in systems requiring compact size and high-performance servo operation.



Technical Specifications

Condition	New/Never Used Surplus
Brand	Omron
Category	Industrial Automation
Part Number	R88M-K20030L-S2
Subcategory	Servo Motors
Product Type	AC Servo Motor
Series	Accurax G5 (R88M)
Power Rating	200 W
Rated Speed	3000 RPM
Rated Torque	0.64 Nm
Peak Torque	1.91 Nm
Voltage Rating	120 VAC
Encoder Type	Incremental
Flange Size	60 mm
Shaft Diameter	11 mm
Shaft Type	Straight Shaft with Key
Protection Rating	IP67
Mounting Type	Flange Mount
Operating Temperature	0°C to +40°C
Weight	1.70 lbs





Information About R88M-K20030L-S2

The R88M-K20030L-S2 is part of Omron’s Accurax G5 (R88M series) servo motor range, developed for high-efficiency and precision control applications. It features a compact design with an integrated incremental encoder for accurate feedback and reduced torque ripple. The motor includes a straight shaft with key for secure mechanical coupling and supports connector-based termination for simplified installation. With IP67 protection and optimized internal design, it ensures reliable performance in demanding industrial environments.

Key Features:

• 200 W Power Rating: Suitable for precision motion control applications
• 3000 RPM Speed: Provides high-speed operation with stable performance
• Incremental Encoder: Enables accurate position and speed feedback
• Compact Design: Reduced size and weight for efficient installation
• High Peak Torque: Supports up to 300% torque for dynamic load handling
• IP67 Protection Rating: Resistant to dust and water ingress
• Straight Shaft with Key: Ensures secure mechanical coupling
• Low Cogging Design: Improves smooth operation and reduces vibration

The R88M-K20030L-S2 delivers the reliability and precision required for servo-driven motion control in industrial automation systems.
