Description

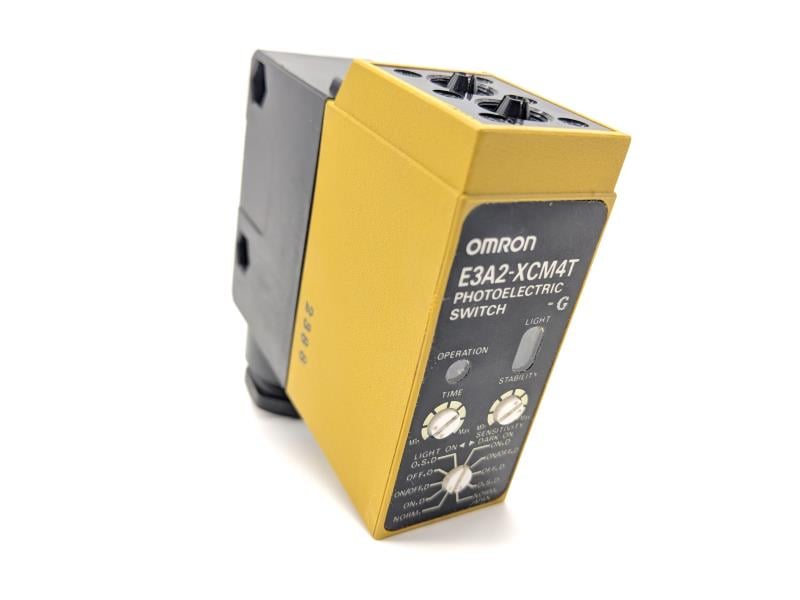

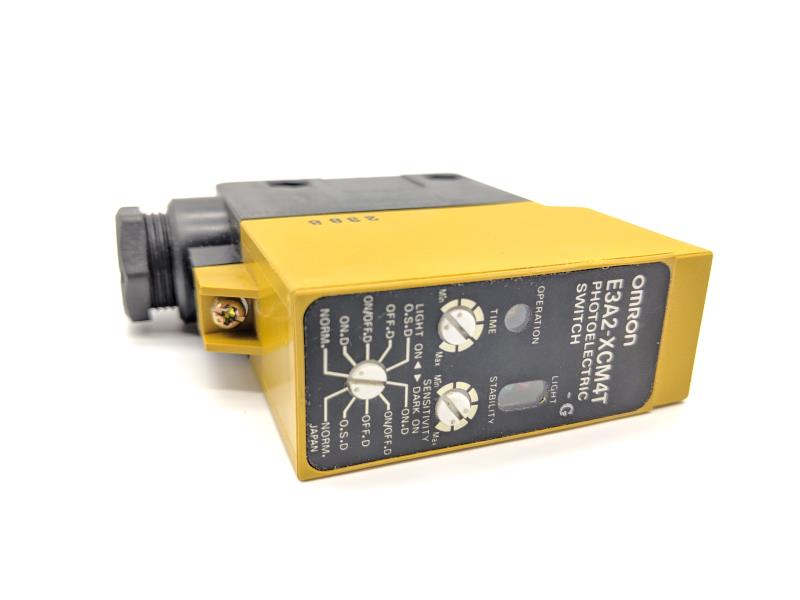

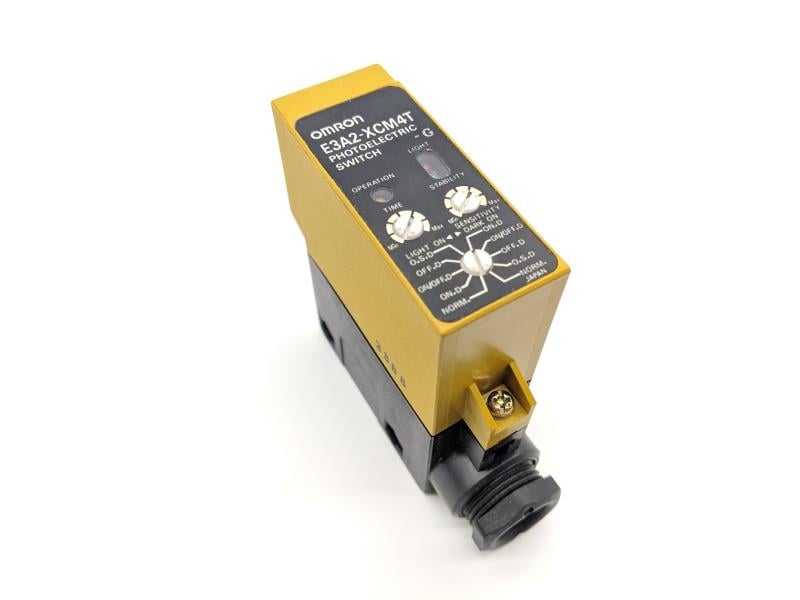

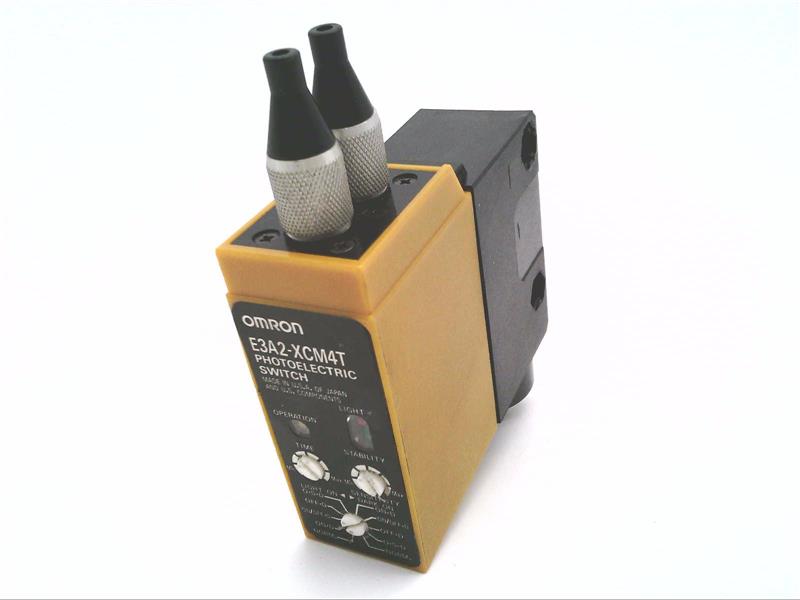

The Omron E3A2-XCM4T Photoelectric Sensor is a slim, rectangular fiber-optic amplifier unit designed for reliable object detection in industrial automation systems. It features a pulse-modulated red LED light source with switch-selectable Light-ON or Dark-ON operation modes.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Sensors |
| Part Number |
E3A2-XCM4T |
| Subcategory |
Photoelectric Sensor |
| Series |
E3A2 |
| Sensor Type |
Fiber-optic photoelectric amplifier |
| Light Source |
Pulse-modulated red LED |
| Sensing Method |
Through-beam or reflective (with fiber cable) |
| Operating Modes |
Light-ON / Dark-ON (switch selectable) |
| Output Type |
Plug-in output terminal block |
| Connection Type |
Screw terminals |
| Supply Voltage |
12–24 VDC |
| Response Time |
Approx. 1 ms |
| Operating Range |
Dependent on fiber cable type |
| Indicators |
LED operation indicator |
| Mounting Type |
Panel or DIN rail (via mounting accessories) |
| Housing Shape |
Slim rectangular |
| Material |
ABS plastic body |
| Ingress Protection |
IP50 (typical) |
| Operating Temperature Range |
-10°C to +55°C (14°F to 131°F) |
| Part Status |
Discontinued by manufacturer |
| Compliance |
CE Certified |
| Dimensions |
Approx. 65 mm H × 18 mm W × 40 mm D |
| Weight |
0.2 lb (0.09 kg) |
Information About E3A2-XCM4T
The E3A2-XCM4T is part of Omron’s E3A2 Series of compact photoelectric sensors, engineered for precision detection in space-constrained environments. This fiber-optic type sensor is compatible with Omron’s fiber-optic cables, providing flexible sensing configurations for various applications such as packaging, assembly, and part positioning. It operates using a pulse-modulated red LED, which ensures stable detection performance while minimizing the effects of ambient light. The sensor offers Light-ON/Dark-ON mode selection via a simple switch, making it adaptable to different control logic requirements. Designed with TDR (Through-beam Detection Relay) universal terminals and a robust housing, the E3A2-XCM4T offers reliable performance for industrial automation tasks.
Key Features:
- Fiber Optic Design: Compatible with Omron fiber-optic cables for adaptable sensing configurations.
- Pulse-Modulated Red LED: Provides stable, high-contrast detection with ambient light immunity.
- Switch-Selectable Operation: Supports both Light-ON and Dark-ON modes for flexible control.
- Screw Terminal Connections: Simplifies wiring for fast and secure installation.
- Slim Rectangular Housing: Saves space in densely packed control panels or equipment.
- Plug-In Output Design: Allows easy replacement or maintenance without rewiring.
- Universal Mounting: Fits easily into standard fiber-optic sensor holders.
- Discontinued Legacy Support: Ideal for maintenance of existing Omron E3A2 system installations.
The E3A2-XCM4T delivers the reliability and precision required for accurate optical detection in industrial automation and material handling applications.
