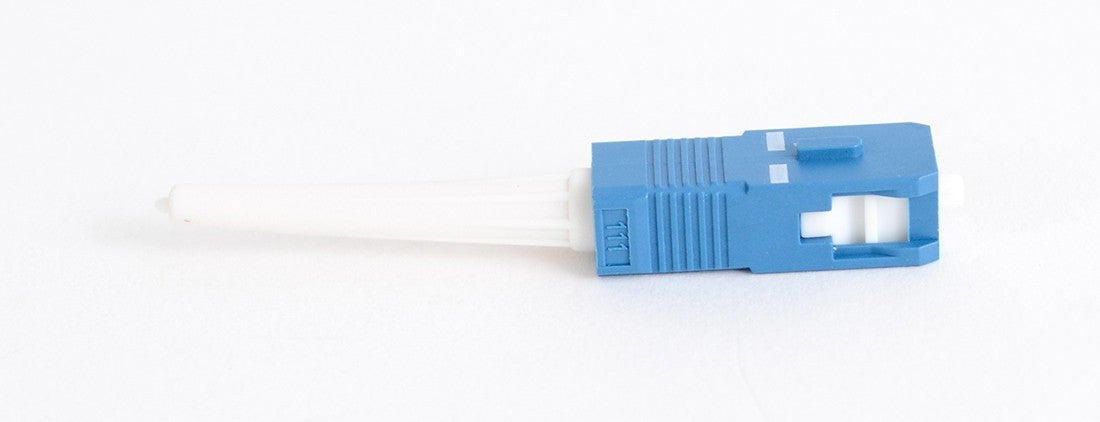

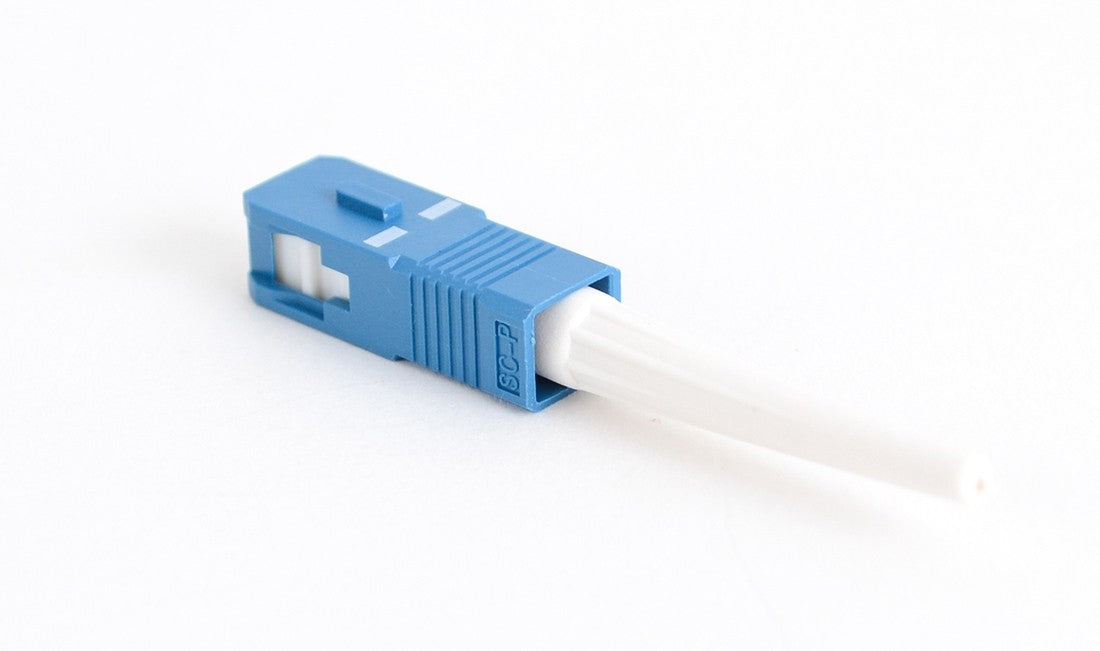

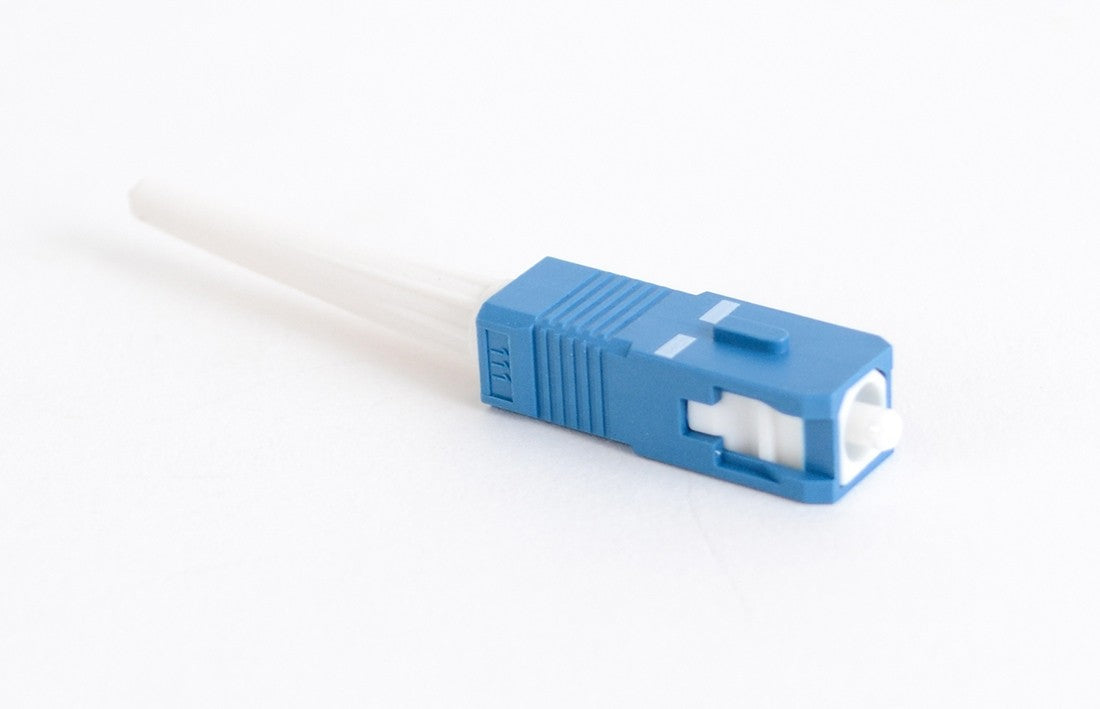

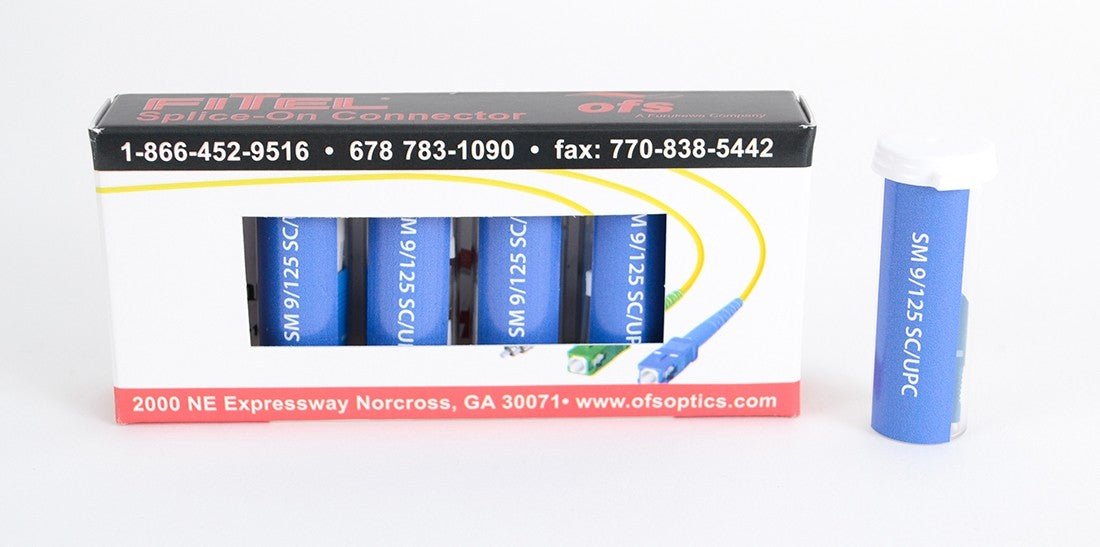

SMF SC/UPC 900µm, 6 pack

FITEL's new connector termination system allows for unsurpassed performance and flexibility in the field. This new "splice-on" connector eliminates the need for field polishing and significantly improves the quality of the termination and installation time required.

FITEL's factory polished ferrules with pre-cleaved fiber stubs are spliced onto the field fiber utilizing FITEL's proprietary ferrule holder and fusion splicer. Once spliced, the SC/APC or SC/UPC connector is easily assembled by using a process that requires minimal skill or training.

Features & Applications

• Simple, Fast, & Consistent Field Termination. Allows for easy field repair of pre-terminated splitters, fan outs, and drop terminals.
• No Polishing or Epoxy. FITEL's connector termination process requires no polishing or epoxy increasing the quality and consistency of field connector termination. Total installation time is greatly reduced compared to traditional methods.

Technical Specifications:

• Insertion Loss: Typical 0.30dB
• Reflectance: < - 55dbB
• Fiber Type: Single-Mode Fiber
• Jacket Type: 900µm
• Ferrule Type: Zirconia ceramic ferrule with pre-polished fiber stub

Download Product Spec Sheet:

• FITEL Splice-On Connectors Spec Sheet(pdf)
• Spec Sheet
