Description

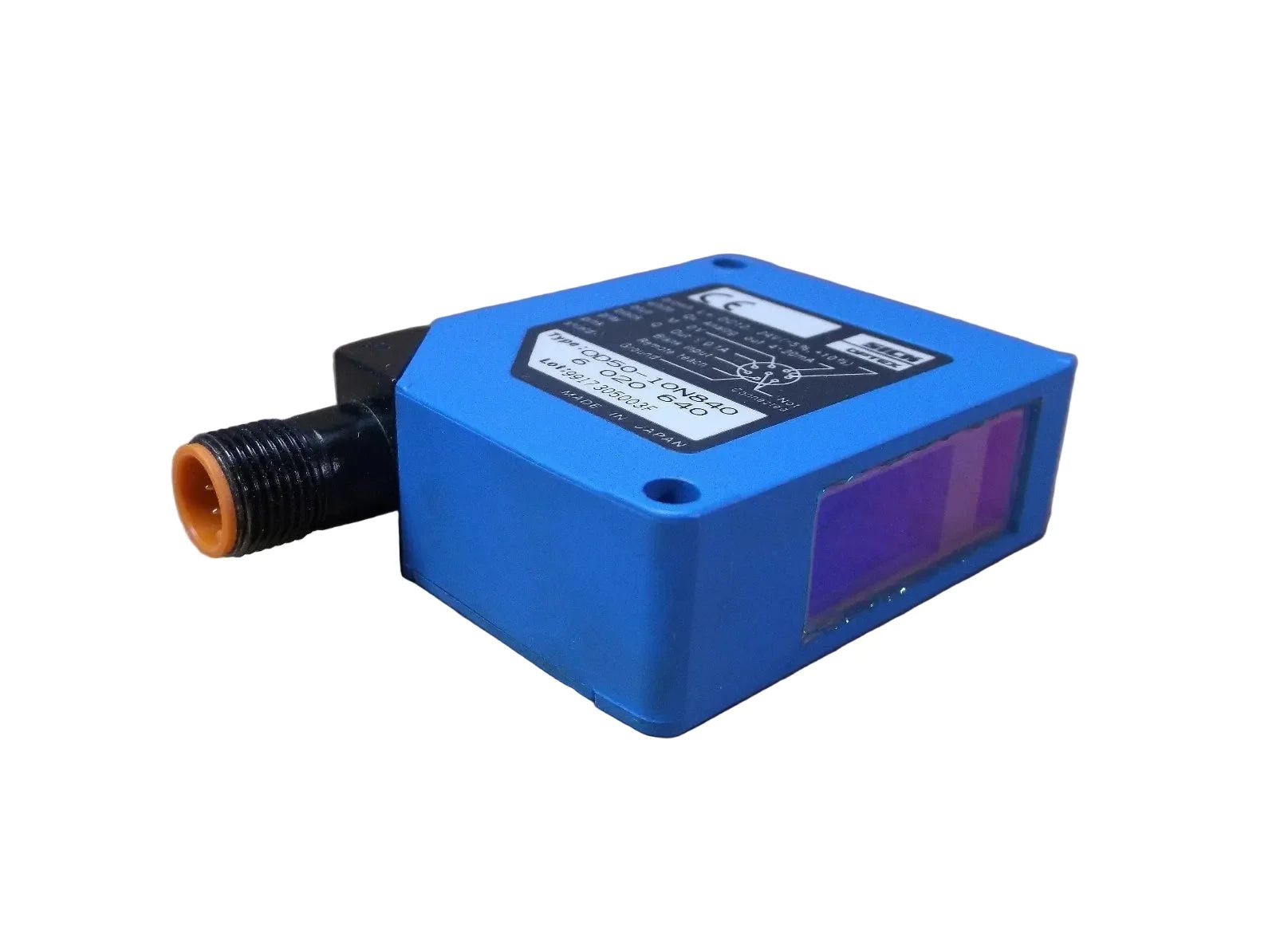

The SICK OD50-10N840 is a laser displacement sensor designed for precise distance measurement in industrial automation applications. It uses a red laser light source to detect position changes with high accuracy over a defined measuring range. This sensor is suitable for quality control, positioning, and inspection tasks where reliable analog output is required.





Technical Specifications

Condition	New/Never Used Surplus
Brand	SICK
Category	Sensors & Switches
Part Number	OD50-10N840
Subcategory	Photoelectric
Product Type	Laser displacement sensor
Series	OD50
Measuring Range	50 ±10 mm
Light Source	Red laser
Output Signal	4–20 mA
Output Type	NPN
Supply Voltage	12–24 VDC
Electrical Connection	8-pin M12 connector
Measurement Principle	Optical displacement sensing
Weight	0.57 lbs





Information About OD50-10N840

The OD50-10N840 is part of SICK’s OD50 series of displacement sensors, known for compact design and stable optical performance. It is built with an industrial-grade housing and integrates a red laser emitter for accurate short-range distance measurement. The sensor provides an analog 4–20 mA output and NPN switching logic for compatibility with common control systems. It is commonly used in automated production lines, material handling, and dimensional monitoring applications.

Key Features:

• Laser Displacement Measurement: Uses a red laser for precise non-contact distance sensing.
• OD50 Series Sensor: Designed for compact installations and accurate industrial measurements.
• 50 ±10 mm Measuring Range: Suitable for short-range displacement detection tasks.
• Analog 4–20 mA Output: Enables stable signal transmission over long cable distances.
• NPN Output Type: Compatible with standard industrial control inputs.
• Fast Optical Response: Supports real-time monitoring in dynamic processes.
• M12 8-Pin Connector: Provides secure electrical connection in industrial environments.


The OD50-10N840 delivers the reliability and precision required for industrial displacement measurement and process monitoring applications.
