Description

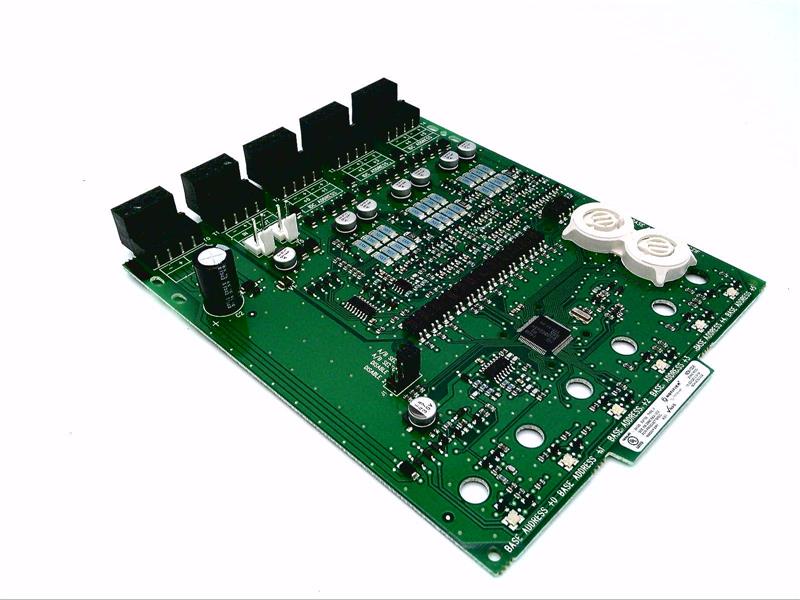

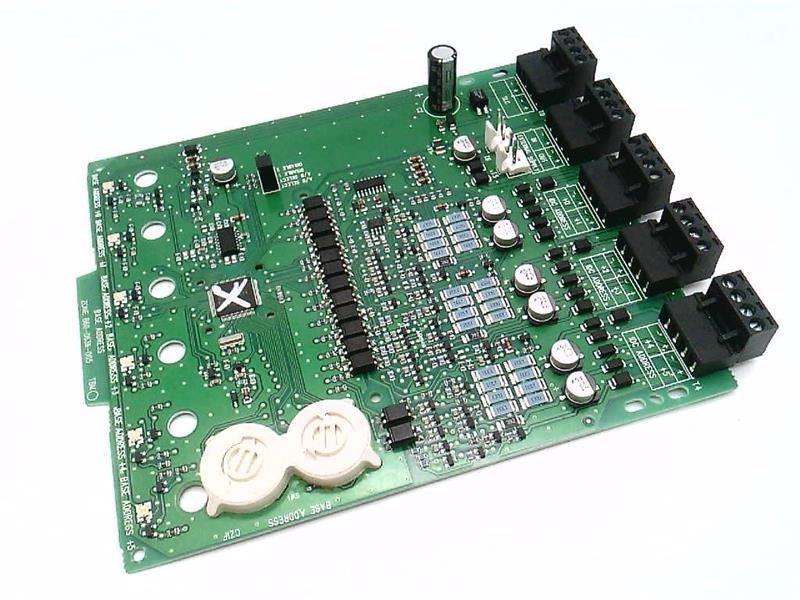

The Notifier NZM-100-6 is a six-input zone module that allows integration of conventional two-wire detectors with intelligent fire alarm systems. Designed for flexibility, it supports either six Class B or three Class A circuits, providing seamless communication between conventional detection zones and addressable systems. This compact module ensures reliable supervision, monitoring, and reporting of zone conditions in fire protection networks.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Notifier |
| Category |
Fire Safety |
| Part Number |
NZM-100-6 |
| Subcategory |
Zone Module |
| Dimensions |
6.80 × 5.80 × 1.25 in |
| Weight |
1.10 lbs |
| Inputs |
Six Class B or three Class A circuits |
| Standby Current |
2.0 mA |
| Alarm Current |
40 mA |
| Operating Voltage |
From SLC, system dependent |
| Wire Range |
12–18 AWG |
| Indicators |
Panel-controlled bi-color LEDs |
| Addressing |
Rotary switches, 01–159 |
| Operating Temperature |
32°F to 120°F (0°C to 49°C) |
| Humidity Range |
10% to 93% non-condensing |
| Mounting Options |
BB-XP, CHS-6 in CAB-3, CAB-4, BB-25 |
| Approvals |
UL, ULC, FM, CSFM, MEA |
Information About NZM-100-6
The NZM-100-6 is part of the Notifier FireWarden series of interface modules. It enables fire alarm control panels to connect to conventional two-wire detector circuits while maintaining full supervision and system integrity. Each module uses a common SLC input and supports removable terminal blocks for simplified wiring. Rotary switches provide straightforward addressing, while panel-controlled LED indicators give clear status visibility. With mounting options for multiple cabinets and chassis, the NZM-100-6 adapts to a wide range of installation environments.
Key Features:
- Multiple Circuit Options: Supports six Class B or three Class A initiating device circuits.
- Easy Addressing: Rotary address switches simplify configuration and reduce programming errors.
- Removable Terminal Blocks: Accepts 12–18 AWG wiring for straightforward installation.
- Status Indicators: Panel-controlled LEDs display point conditions for clear diagnostics.
- Flexible Mounting: Compatible with BB-XP, CHS-6, CAB-3, CAB-4, and BB-25 enclosures.
- Independent Operation: Each circuit functions independently despite sharing common supply and ground.
- Disable Unused Addresses: Allows freeing up of unused points for system efficiency.
- Agency Approvals: UL, ULC, CSFM, MEA, and FM certified for compliance.
The NZM-100-6 delivers the reliability and precision required for professional fire detection system integration.
