Description

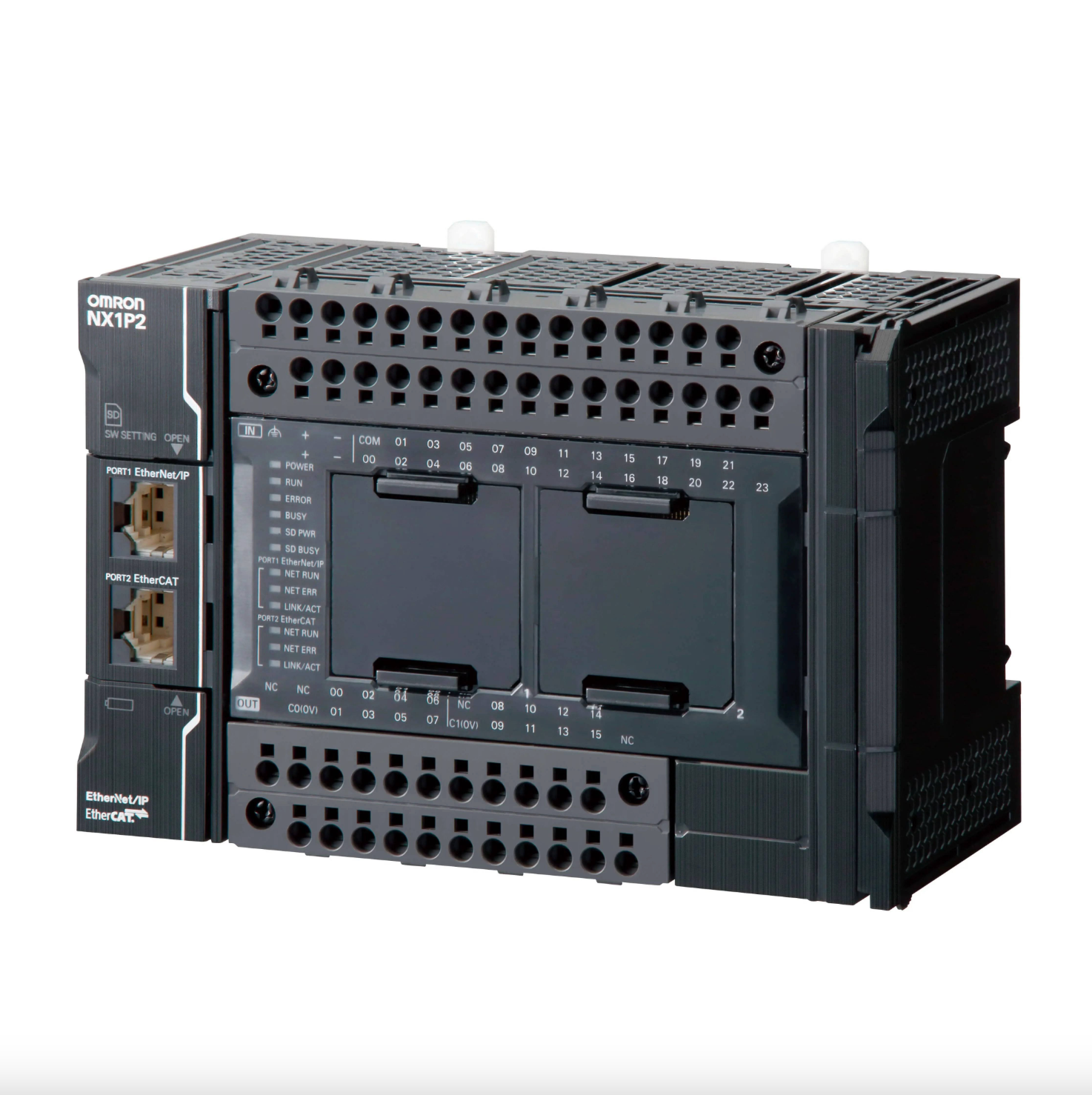

The Omron NX1P2-1140DT1 is a compact PLC CPU designed for high-speed machine control and synchronized motion applications. It integrates built-in I/O, EtherCAT networking, and multi-axis motion control in a single unit. This controller is ideal for standalone machines and space-constrained automation systems requiring precise real-time performance.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Omron
Category	Controls & Indicators
Part Number	NX1P2-1140DT1
Subcategory	Power Controller
Series	Sysmac NX1P
Controller Type	CPU Unit
Built-In I/O	40 digital I/O
I/O Type	PNP
Motion Axes Supported	8 axes
EtherCAT Nodes	Up to 16
Program Memory	1.5 MB
Power Supply Voltage	20.4–28.8 VDC
EtherCAT Port	Integrated
Programming Software	Sysmac Studio
Weight	2.00 lbs





Information About NX1P2-1140DT1

The NX1P2-1140DT1 is part of Omron’s Sysmac NX1P series, which combines PLC functionality and motion control within a compact, all-in-one CPU platform. It features an industrial-grade design with built-in digital I/O and direct EtherCAT connectivity for servo drives and remote I/O. The controller supports real-time control of multiple motion axes without the need for additional motion units. Its architecture is optimized for cost-effective automation while maintaining compatibility with Omron Sysmac Studio and EtherCAT devices.

Key Features:

• Integrated PLC and Motion Control: Combines logic control and motion control in a single compact CPU.
• Built-In Digital I/O: Includes 40 onboard PNP digital I/O points for direct device connection.
• Multi-Axis Motion Capability: Supports control of up to 8 synchronized motion axes.
• EtherCAT Network Support: Connects up to 16 EtherCAT nodes for real-time distributed control.
• High-Speed Processing: Designed for fast instruction execution and deterministic control cycles.
• Compact Form Factor: Reduces panel space requirements in standalone and small machines.
• Wide Input Voltage Range: Operates reliably across industrial 24 VDC power supplies.

The NX1P2-1140DT1 delivers the reliability and precision required for compact motion control and high-performance machine automation systems.
