Description

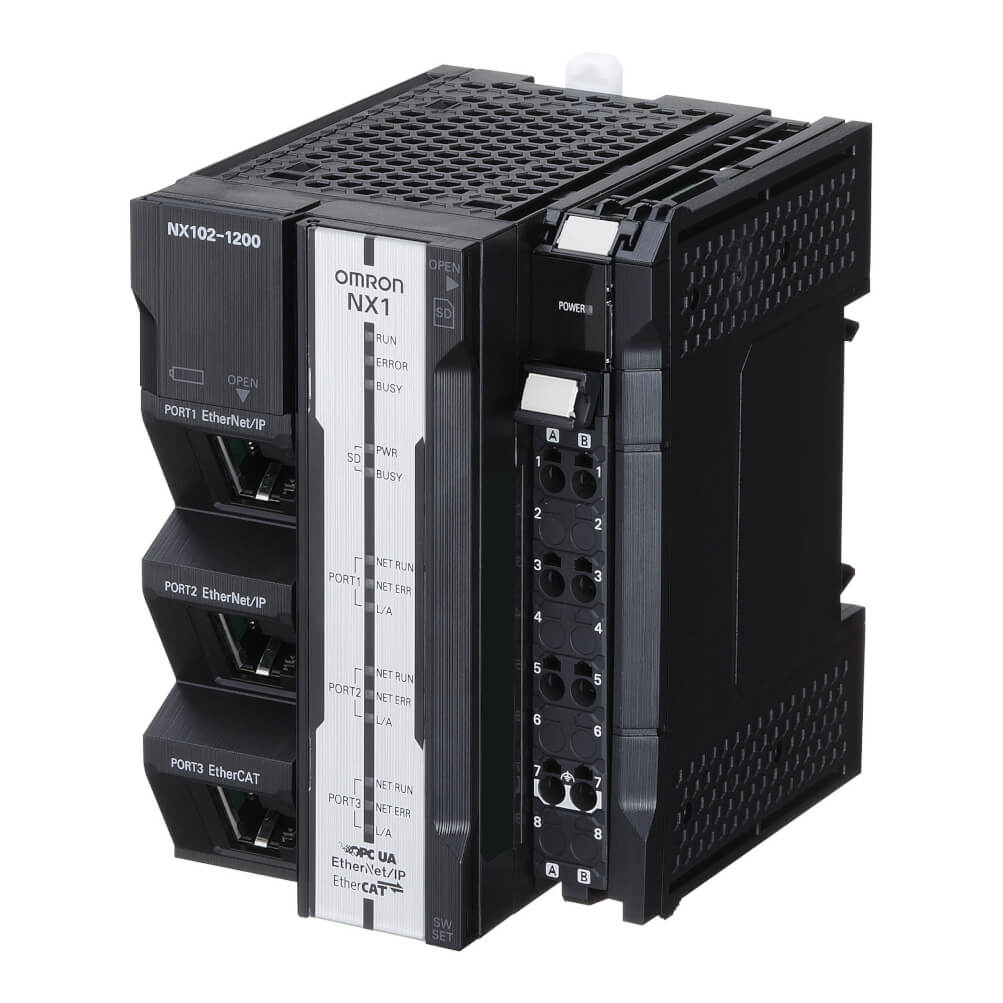

The Omron NX102-1100 is a compact modular CPU designed for advanced machine control and integrated motion applications. It supports motion, position, and sequence control while enabling high-speed communication through EtherCAT and Ethernet-based networks. This controller is engineered for scalable automation systems requiring deterministic performance and flexible expansion.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
PLC Controllers |
| Part Number |
NX102-1100 |
| Subcategory |
Modular CPU Controllers |
| Series |
NX102 Series |
| Product Type |
Modular CPU |
| Mounting Type |
DIN Rail Mount |
| Supply Voltage |
24 VDC |
| Controller Functions |
Motion, Position, Sequence Control, OPC-UA |
| Primary Task Cycle Time |
1 ms |
| Program Memory |
5 MB |
| Variable Memory |
33.5 MB |
| Max. Synchronous Axes |
4 |
| Max. PTP Axes |
4 |
| Max. Total Axes |
15 |
| Communication Ports |
EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication Options |
RS-232C, RS-422, RS-485 |
| Max. Remote I/O Nodes |
64 |
| I/O System |
NX I/O Bus |
| Max. Expansion Units |
32 |
| Dimensions (H x W x D) |
100 mm x 66 mm x 100 mm |
| Weight |
470 g |
Information About NX102-1100
The NX102-1100 is part of Omron’s Sysmac NX102 series, which combines PLC and motion control functionality in a single modular CPU. It is built to operate on the NX I/O Bus and supports expansion with multiple remote I/O nodes and additional units. The controller integrates motion control, OPC-UA communication, and real-time networking to streamline system architectures. Its DIN rail–mounted design and compact dimensions make it suitable for space-efficient control panels in industrial automation environments.
Key Features:
- Integrated Motion Control CPU: Combines logic, motion, and position control in one unit.
- Multi-Axis Support: Handles up to 4 synchronous axes, 4 PTP axes, and 15 total axes including virtual axes.
- High-Speed Task Execution: Features a primary task cycle time of 1 ms for deterministic control.
- Large Memory Capacity: Includes 5 MB program memory and 33.5 MB variable memory.
- Advanced Communication Interfaces: Supports EtherCAT master, EtherNet/IP, and Ethernet TCP/IP.
- Modular NX I/O Architecture: Compatible with NX I/O Bus and up to 32 expansion units.
- OPC-UA Capability: Enables secure data exchange with higher-level systems.
The NX102-1100 delivers the reliability and precision required for high-performance modular PLC and motion control systems.
