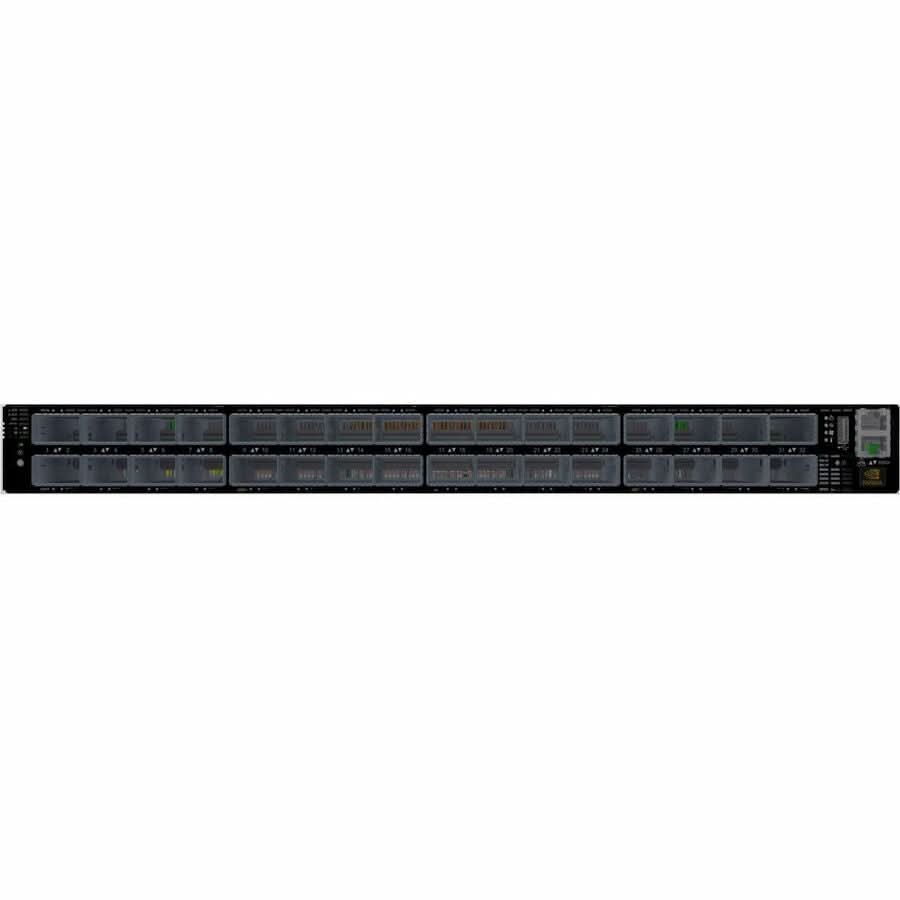

NVIDIA Mellanox MQM9700-NS2F Quantum 2 NDR 8GB RAM InfiniBand Switch
NVIDIA MQM9700-NS2F Quantum 2 NDR InfiniBand Switch 64-Ports 400Gb/s 32 OSFP Ports Managed P2C Airflow (Forward) | Scaling Out Data Centers with 400G InfiniBand Smart Switches
The NVIDIA Quantum-2-based QM9700 and QM9790 switch systems deliver an unprecedented 64 ports of 400Gb/s InfiniBand per port in a 1U standard chassis design. A single switch carries an aggregated bidirectional throughput of 51.2 terabits per second (Tb/s), with a landmark of more than 66.5 billion packets per second (BPPS) capacity. Supporting the latest NVIDIA high-speed interconnect 400Gb/s technology, NVIDIA Quantum-2 brings a high-speed, extremely low-latency and scalable solution that incorporates state-of-the-art technologies such as Remote Direct Memory Access (RDMA), adaptive routing, and NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARP).
Product Specification:
|
| Product Type: InfiniBand Switch |
| Manufacturer Part Number: MQM9700-NS2F |
| Manufacturer Website Address: http://www.nvidia.com |
| Form Factor: Rack-mountable |
| Manufacturer: NVIDIA Corporation |
| Product Model: QM9700 |
| Product Name: Quantum 2 NDR InfiniBand Switch |
| Product Line: Quantum |
| Brand Name: Mellanox |
| Expansion Slot Type: OSFP |
| Manageable: Yes |
| Environmentally Friendly: Yes |
| Compatible Rack Unit: 1U |
| Ethernet Technology: 400 Gigabit Ethernet |
| Number Of Infiniband Ports: 32 |
| Environmental Compliance: Restriction of Hazardous Substances (RoHS) |
*
