Description

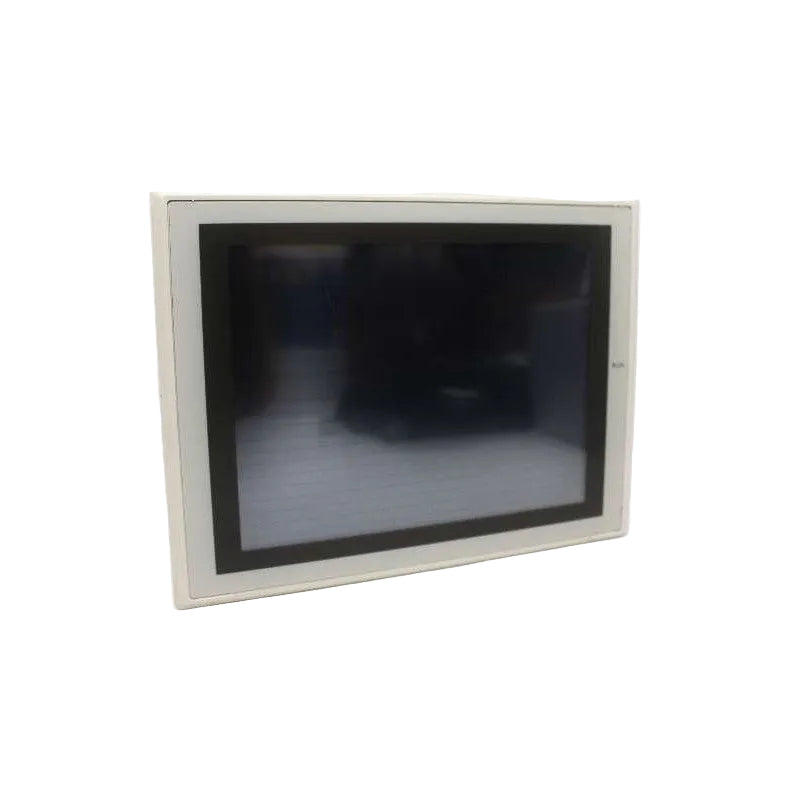

The Omron NS8-TV01-V2 is an 8.4-inch touchscreen HMI designed for operator control and visualization in industrial automation systems. It features a TFT color display with 640 × 480 resolution and supports Ethernet and serial communications for flexible system integration. This unit operates on 24 VDC and is built for reliable use in demanding industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Human Machine Interfaces |
| Part Number |
NS8-TV01-V2 |
| Subcategory |
Touch Panels |
| Product Line |
NS Series |
| Product Type |
HMI Touch Panel |
| Display Size |
8.4 inches |
| Display Type |
TFT LCD with LED backlight |
| Resolution |
640 × 480 dots |
| Display Colors |
256 colors |
| Case Color |
Ivory |
| Protection Class |
IP65 (front panel) |
| Power Supply Voltage |
24 VDC |
| Permissible Voltage Range |
20.4 to 27.6 VDC |
| Ethernet Interface |
10/100 Base-T |
| Screen Memory Capacity |
60 MB |
| Ambient Operating Temperature |
0°C to 40°C |
| Operating Humidity |
35% to 85% RH (non-condensing) |
| Backlight Life |
40,000 hours (minimum) |
| Weight |
1.38 lbs (0.62 kg) |
Information About NS8-TV01-V2
The NS8-TV01-V2 is part of Omron’s NS Series human-machine interfaces, developed to provide advanced visualization and control for PLC-based systems. It incorporates an 8.4-inch TFT LCD with LED backlighting, offering clear color graphics and long backlight life for continuous operation. The HMI supports Ethernet (10/100 Base-T) as well as serial communication, enabling connectivity with multiple controllers and networks. Designed with an IP65-rated front panel, it is suitable for panel-mounted installation in environments requiring resistance to dust, vibration, and moisture.
Key Features:
- 8.4-Inch TFT Color Display: Provides clear visualization with 640 × 480 pixel resolution.
- Color Graphics Capability: Supports 256 display colors with expanded image color support for bitmap and JPEG files.
- Ethernet Connectivity: Integrated 10/100 Base-T port for networked automation systems.
- Industrial Touch Interface: Reliable touchscreen operation for operator input and control.
- IP65 Front Protection: Water- and dust-resistant design for industrial panel installations.
- Extended Backlight Life: LED backlight rated for a minimum of 40,000 operating hours.
- Robust Environmental Tolerance: Designed to withstand vibration, shock, and industrial humidity levels.
The NS8-TV01-V2 delivers the reliability and precision required for operator interaction and system monitoring in industrial automation applications.
