Description

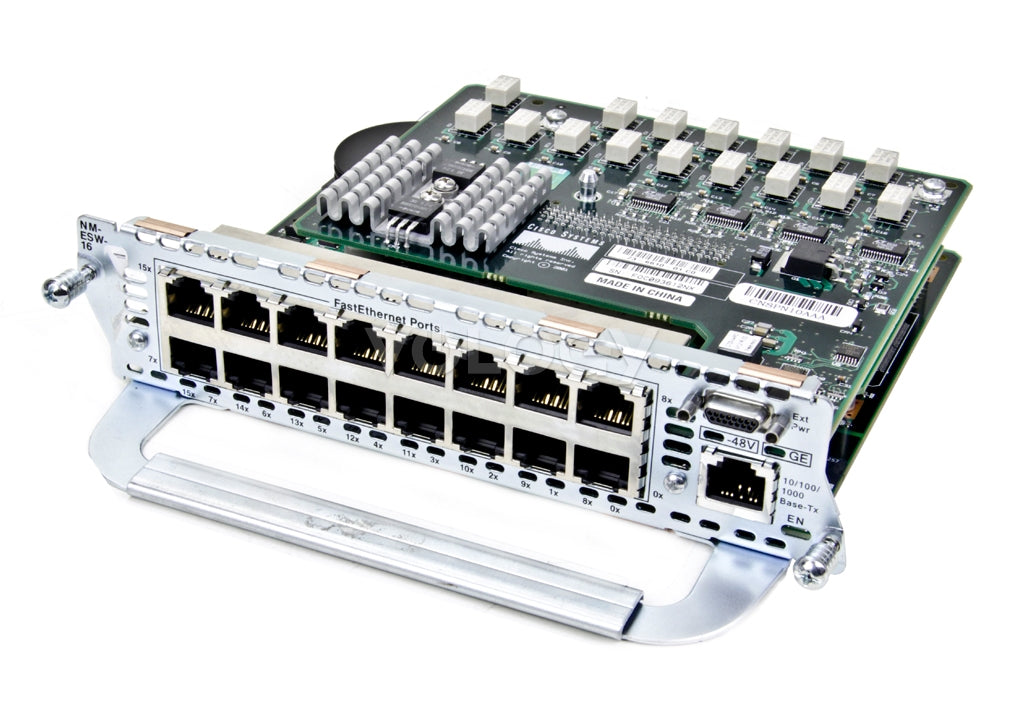

The Cisco NM-16ESW is a 16-port 10/100 EtherSwitch network module designed to integrate switching capabilities directly into Cisco routers. Combining Layer 2 switching with Layer 3 routing, this module simplifies network infrastructure by providing centralized routing and distributed switching in a single platform.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco |
|
Category
|
|
|
Part Number
|
NM-16ESW
|
| Subcatecory |
|
| Series |
Cisco EtherSwitch Network Modules |
| Switch Ports |
16 x 10/100 Mbps Ethernet |
| Internal Router Interface |
1 Port to Router Engine |
| Switching Type |
|
| Form Factor |
Modular / Network Module |
| Application |
Branch Offices / Integrated Routing & Switching |
| Dimensions (H x W x D) |
7.09 x 6.99 x 1.54 inches |
| Weight |
0.59 kgs |
Information About NM-16ESW
The NM-16ESW is part of Cisco’s modular EtherSwitch network module family, offering 16 10/100 Mbps Ethernet switch ports and one internal interface connecting to the router engine. It enables low-density, line-rate Layer 2 switching with support for robust Layer 3 WAN routing, making it ideal for branch offices and integrated service deployments. This solution streamlines deployment and management while providing flexibility for voice, video, and data transport.
Key Features:
-
16 Ethernet Switch Ports: Provides fast 10/100 Mbps Layer 2 switching with integrated management.
-
Integrated Routing Interface: Includes one internal port connecting directly to the router for Layer 3 routing functions.
-
Layer 2 + Layer 3 Integration: Combines switching and WAN routing in one chassis for unified network functionality.
-
Flexible Network Deployment: Supports voice, video, and data across hybrid networks with simplified architecture.
-
Compact Modular Form Factor: Designed to fit Cisco router chassis with a space-efficient footprint.
-
Centralized Configuration: Integrated solution allows for simplified deployment and centralized device management.
The NM-16ESW enhances branch-level network performance by combining switching and routing in a compact, modular design.
