Description

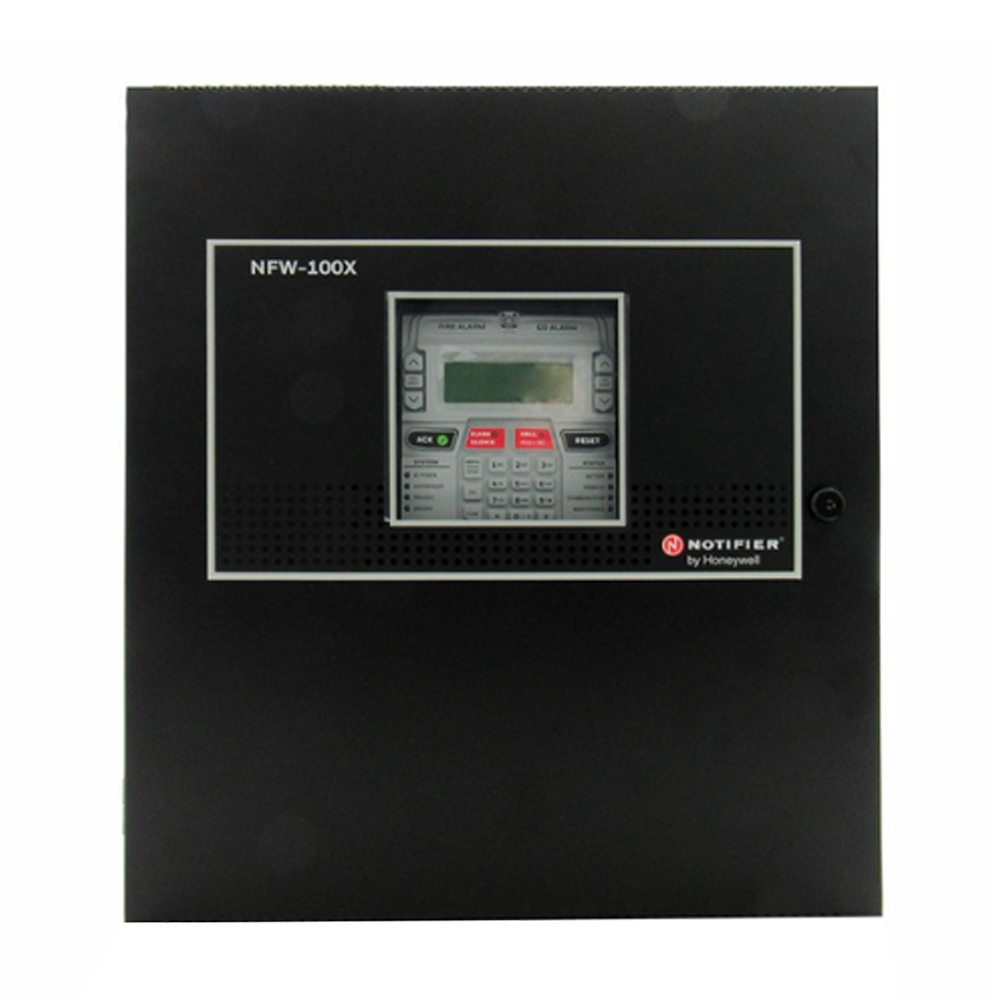

The Notifier NFW-100XI is an intelligent addressable fire alarm control panel designed to manage up to 198 addressable devices across a single SLC loop. It provides reliable fire detection and notification with compatibility for both FlashScan and CLIP protocols.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Notifier |
| Category |
Fire Alarm Systems |
| Part Number |
NFW-100XI |
| Subcategory |
Addressable Fire Alarm Control Panels |
| Type |
Intelligent addressable FACP |
| Device Capacity |
198 devices (99 detectors + 99 modules) |
| Protocols Supported |
FlashScan and CLIP |
| Power Input |
120/240 VAC auto-sensing, 50/60 Hz, 3.25 A |
| NAC Circuits |
Four Class A/B, 250 mA regulated (2.5 A for special applications) |
| System Output |
2.7 A total shared across NACs and ANN-BUS |
| Relays |
Two programmable Form-C relays, one fixed trouble relay |
| Dialer/Communicator |
Not included (external integration required) |
| Battery Support |
7–18 AH, cabinet holds two 18 AH batteries |
| Cabinet Finish |
Black |
| Dimensions |
23 × 20 × 7 in |
| Weight |
23 lbs |
| Compliance |
UL listed, NFPA 72 compliant |
Information About NFW-100XI
The NFW-100XI is a Notifier intelligent addressable control panel built to provide flexible protection for medium-sized facilities requiring advanced fire detection and signaling capabilities. Supporting up to 198 addressable devices on a single SLC loop, the system is compatible with FlashScan and CLIP communication protocols for seamless integration with a variety of detectors and modules. It includes four Class A/B NAC circuits, programmable relays, and a fixed trouble relay to manage both alarm signaling and auxiliary system functions. Unlike other Notifier FACP models, the NFW-100XI is shipped without a built-in communicator, allowing facility managers to pair it with external or optional communicators that best match site-specific requirements.
Key Features:
- Intelligent Addressable System: Supports up to 198 addressable devices for flexible fire detection and monitoring.
- Dual Protocol Compatibility: Operates with both FlashScan and CLIP protocols for versatile device integration.
- Multiple NAC Circuits: Provides four Class A/B notification appliance circuits, each with regulated output.
- Programmable Relays: Includes two Form-C relays and one dedicated trouble relay for system signaling.
- Flexible Power Input: Accepts 120/240 VAC auto-sensing with a total 2.7 A shared output capacity.
- External Communicator Integration: Ships without an onboard communicator, enabling custom connectivity solutions.
- Battery Backup Support: Accommodates 7–18 AH batteries, with cabinet capacity for two 18 AH units.
- Durable Enclosure: Black cabinet design ensures professional appearance and secure installation.
- Standards Compliance: UL listed and NFPA 72 compliant for fire safety applications.
The NFW-100XI delivers the reliability and precision required for addressable fire alarm control in commercial, institutional, and industrial settings.
