Description

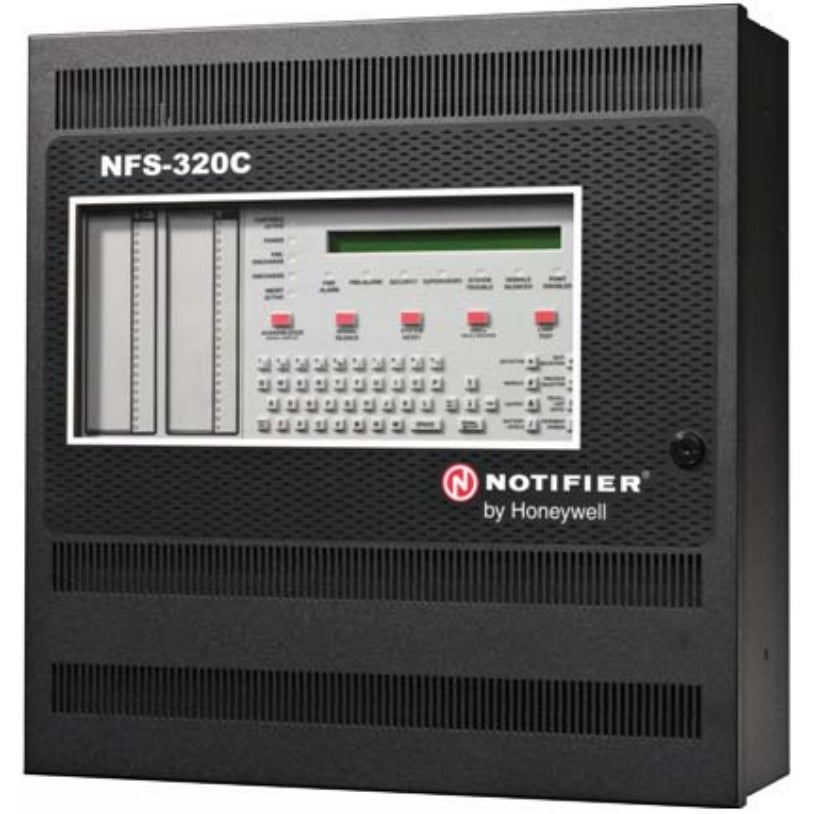

The Notifier NFS-320C Fire Alarm Control Panel is an intelligent addressable system designed to provide reliable fire detection and protection for a wide range of applications. Featuring modular scalability, it can serve small buildings or expand to protect large facilities through networking. With advanced detection capabilities and multiple configuration options, the NFS-320C ensures compliance with stringent safety standards.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Notifier |
| Category |
Fire Safety |
| Part Number |
NFS-320C |
| Subcategory |
Fire Alarm Control Panels |
| Manufacturer |
Honeywell |
| Series |
ONYX® Series |
| Style |
Addressable |
| Color |
Black |
| Device Capacity |
318 devices (159 detectors + 159 modules) |
| Notification Circuits |
Four Class A/B NACs with 6.0 A power supply |
| Loop Support |
One isolated intelligent SLC loop, Style 4, 6, or 7 |
| Display |
Standard 80-character display with QWERTY keypad |
| Networking |
Up to 200 nodes (high-speed) / 103 nodes (standard) |
| History Log |
800-event capacity plus 200-event alarm-only file |
| Programming |
VeriFire® Tools for simulation, firmware, and database management |
| Listings & Approvals |
UL, ULC, FM, CSFM, MEA; seismic and marine certified |
| Battery Support |
18 – 200 AH batteries |
| Dimensions |
19 × 19 × 6 in |
| Weight |
16 lbs |
Information About NFS-320C
The NFS-320C is part of the NOTIFIER ONYX® Series, a family of advanced fire alarm control systems engineered for flexibility and high performance. This model supports up to 318 addressable devices on a single SLC loop, accommodating detectors, modules, and pull stations. It is compatible with VeriFire® Tools software for simplified programming, diagnostics, and firmware upgrades, making it easier to configure and maintain. With built-in NACs, versatile networking options, and comprehensive listings and approvals, the NFS-320C is designed to meet the needs of modern commercial, institutional, and industrial fire protection systems.
Key Features:
- Device Capacity: Supports up to 318 addressable devices (159 detectors and 159 modules).
- Notification Circuits: Includes four Class A/B NACs with 6.0 A power supply and strobe synchronization.
- Networking Options: High-speed network supports up to 200 nodes; standard network supports up to 103 nodes.
- Flexible Programming: VeriFire® Tools utility allows online/offline programming, simulation, and firmware upgrades.
- Built-In Relays: Alarm, Trouble, Security, and Supervisory relays provided as standard.
- Advanced Detection: Compatible with ion, photo, thermal, and multi-sensor detectors.
- System Management: Supports up to 32 annunciators, 800-event history log, and remote printer interface.
- Certifications: UL, ULC, FM, CSFM, MEA approved, with seismic and marine application certifications.
The NFS-320C delivers the reliability and precision required for intelligent fire detection and scalable life safety solutions.
