Description

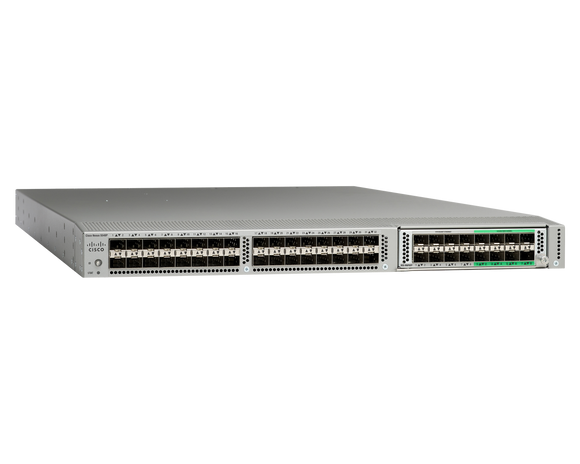

Cisco N5K-C5548P-FA is a 1RU 10 Gigabit Ethernet switch chassis from the Nexus 5500 Series, designed for high-density, low-latency data center environments. It features 32 fixed 10-Gigabit SFP+ ports, supports up to 960 Gbps throughput, and allows expansion with modular uplink and fabric extender modules.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
|
| Part Number |
N5K-C5548P-FA |
| Subcategory |
|
| Device Type |
Switch - 32 Ports - Managed |
| Enclosure Type |
Rack-mountable - 1u
|
| Ports |
32 X Sfp+ |
| Mac Address Table Size |
32k Entries
|
| Jumbo Frame Support |
|
| Power |
AC 120/230 V (50/60 Hz) |
| Switch Layer |
L2/L3 |
| Colour |
Silver |
| AC Input Frequency |
50 - 60 Hz |
| Power Consumption (typical) |
390 W |
| Power Consumption (max) |
600 W |
| Operating Temperature |
0 - 40 °C |
| Storage Temperature |
-40 - 70 °C |
| Operating Relative Humidity |
5 - 95% |
| Operating Altitude |
0 - 3000 m |
| Heat Dissipation |
1331 BTU/h |
| Width |
439 mm |
| Depth |
749 mm |
| Height |
44 mm |
| Weight |
15.9 kgs |
Information About N5K-C5548P-FA
The Cisco N5K-C5548P-FA is a 1RU 10 Gigabit Ethernet switch chassis from the Cisco Nexus 5500 Series, designed for high-density, low-latency data center environments. It features 32 fixed 10-Gigabit SFP+ ports, supports up to 960 Gbps throughput, and includes one expansion slot for additional modules. With front-to-back airflow, dual 750W AC power supplies, and hot-swappable fan trays, it offers scalable, high-performance switching for mission-critical workloads.
Key Features:
-
Model: N5K-C5548P-FA
-
Form Factor: 1 Rack Unit (1RU)
-
Fixed Ports: 32 × 1/10-Gigabit Ethernet SFP+
-
Expansion Slots: 1
-
Throughput: Up to 960 Gbps
-
Airflow: Front-to-back
-
Power Supplies: 2 × 750W AC
-
Fan Modules: 2 hot-swappable
-
High-Density Connectivity: Supports up to 48 ports with expansion modules.
-
Modular Expansion: Compatible with various expansion modules, including Ethernet, Fibre Channel, and unified port modules.
-
Unified Fabric Support: Enables convergence of LAN and SAN traffic over a single infrastructure.
-
Scalability: Ideal for enterprise-class data center server access-layer deployments.
