Description

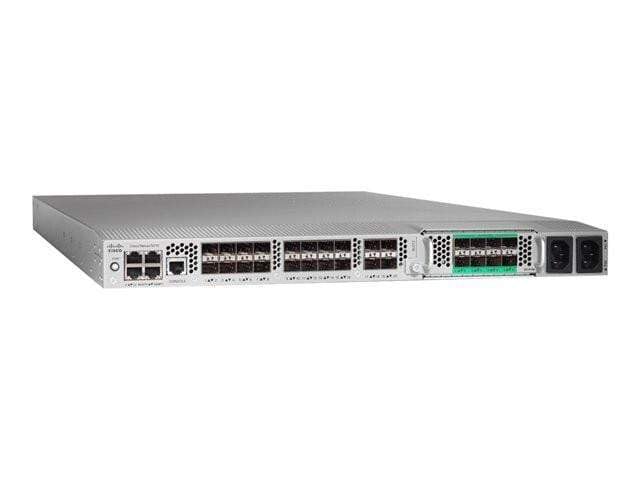

The Cisco N5K-C5010P-BF is a 1RU 10 Gigabit Ethernet and Fibre Channel over Ethernet (FCoE) switch, part of the Nexus 5000 Series.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Cisco |
| Category |
Telecommunication Accessories
|
| Part Number |
N5K-C5010P-BF |
| Subcategory |
|
|
|
240 Volts |
| Case Material |
Metal |
| Upper Temperature Rating |
35°C |
|
Interface Type
|
SFP+
|
|
Data Transfer Rate
|
1E+1 Gigabits Per Second |
|
Dimensions LxWxH
|
30 x 17.28 x 1.73 inches |
|
Port Type and Count
|
20 fixed 10 Gigabit Ethernet and FCoE SFP+ ports |
|
Switching Throughput
|
520 Gbps |
|
Latency
|
Very low latency (typically <5 microseconds) |
|
Form Factor
|
1U rack-mountable |
|
Airflow Direction
|
Back-to-front airflow |
|
Weight
|
14.51 kgs |
Information About N5K-C5010P-BF
The Cisco N5K-C5010P-BF is a high-performance, data center-class switch from the Nexus 5000 Series, designed to support 10 Gigabit Ethernet and Fibre Channel over Ethernet (FCoE) environments. With 20 fixed SFP+ ports, it enables a unified fabric for efficient I/O consolidation, delivering high throughput and ultra-low latency, ideal for modern, high-density data centers.
Key Features:
-
20 Fixed 10 Gigabit Ethernet and FCoE SFP+ Ports
Supports both traditional Ethernet traffic and FCoE for converged network and storage infrastructure.
-
Unified Fabric Support: Enables consolidation of LAN and SAN traffic over a single Ethernet network.
-
Back-to-Front Airflow (BF): Optimized cooling for installation in hot/cold aisle data center setups.
-
High Performance:
-
FCoE and DCB Support:
Includes Data Center Bridging (DCB), Priority Flow Control (PFC), and Enhanced Transmission Selection (ETS) for lossless Ethernet environments.
-
Redundant Power and Fans: Hot-swappable components for high availability.
-
Modular OS: Runs Cisco NX-OS with advanced capabilities for high resiliency and scalability.
-
Flexible Management: CLI, SNMP, and integration with Cisco Data Center Network Manager (DCNM)
