Description

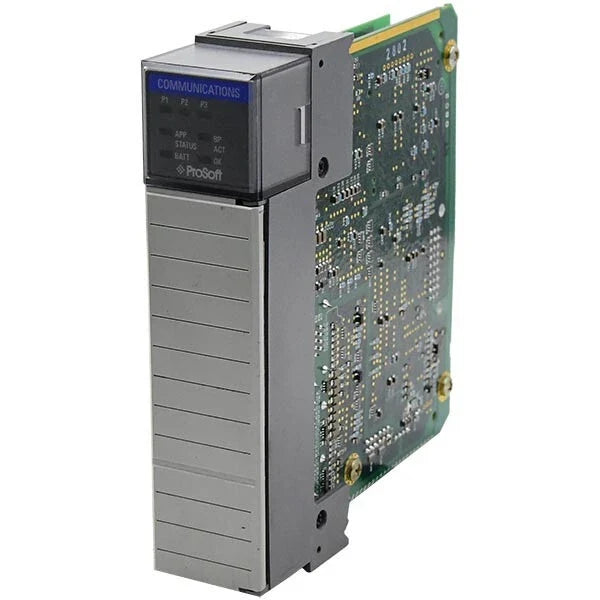

The ProSoft MVI46-DFNT is a communication module for Allen-Bradley SLC 500 PLCs, enabling seamless connectivity between the SLC processor and Ethernet/IP or Modbus TCP/IP networks.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
ProSoft Technology
|
| Category |
|
| Part Number |
MVI46-DFNT
|
| Subcatecory |
|
| Backplane Current Load |
800 ma @ 5V (from backplane) |
| Compatible Platform |
SLC500 |
| No. of Ports |
Three (3) ports; CFG Port (CFG) / Configuration Connector / Ethernet I/P |
| Module Width |
Single Slot |
| Operating Shock |
30 g |
| Operating Vibration |
5 g @ 10…500 Hz |
| Isolation Voltage |
50V (continuous), Basic Insulation Type, Fieldbus to system |
| Relative Humidity |
5% to 95% (non-condensing) |
| Data Transfer Type |
Ladder Logic |
| SLC Registers |
4000 max. |
| User-defined Commands |
100 max. |
| Interface |
10/100 MB Ethernet-compatible |
| Weight |
0.45 kgs |
Information About MVI46-DFNT
The ProSoft MVI46-DFNT is an EtherNet/IP Client/Server communication module designed for Rockwell Automation's SLC 500 platform. It enables SLC processors to interface with EtherNet/IP networks using explicit messaging, facilitating seamless data exchange between the SLC and other Ethernet-enabled devices.
Key Features:
-
Compatibility: Supports SLC 5/02 and newer processors with M0/M1 file capability.
-
EtherNet/IP Communication: Provides one Ethernet port for client/server operations, allowing the module to send read/write commands to remote devices and receive commands from up to 20 servers.
-
Data Handling: Utilizes the SLC backplane for data transfer, with all data contained in the module's M1 file.
-
Configuration: Supports up to 100 user-defined commands, configurable via a text-based configuration file.
-
Diagnostics: Offers diagnostic capabilities through status data requests and command error list retrieval.
-
Pass-Through Server: Includes a pass-through server for editing and transferring SLC ladder logic over Ethernet.
-
Backplane Current Load: 800 mA @ 5 VDC
-
Operating Temperature: 0°C to 60°C (32°F to 140°F)
-
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
-
Shock: 30g operational; 50g non-operational
-
Vibration: 5 g from 10 Hz to 150 Hz
-
Relative Humidity: 5% to 95% (non-condensing)
-
Dimensions: Approximately 2 x 19 x 12.9 cm
This module is ideal for integrating SLC processors into modern Ethernet-based control systems, providing reliable and efficient communication capabilities.
