Description

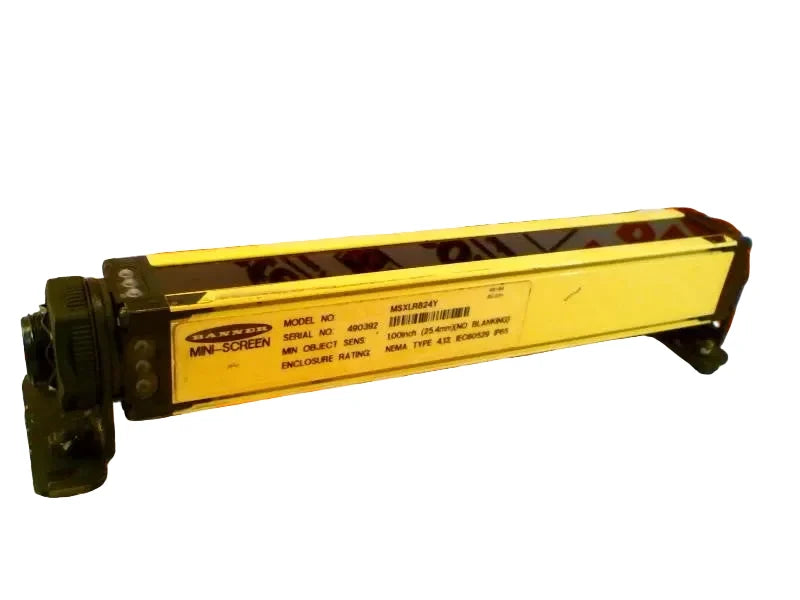

The Banner Engineering MSXLR824Y is a MINI-SCREEN safety light curtain receiver designed to provide perimeter and point-of-operation safeguarding with a defined sensing area of 215 mm. It supports an operating range up to 18 meters and features an integral quick-disconnect for streamlined installation. This unit is intended as a replacement receiver for existing MINI-SCREEN systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Safety |
| Part Number |
MSXLR824Y |
| Subcategory |
Safety Light Curtain Receivers |
| Series |
MINI-SCREEN |
| Device Type |
Safety Light Curtain Receiver |
| Defined Area |
215 mm (8.5 in) |
| Maximum Range |
18 m (60 ft) |
| Connection Type |
Integral Quick-Disconnect |
| Housing Color |
Yellow |
| Application |
Machine Guarding |
| Weight |
Approx. 1.5 kg |
Information About MSXLR824Y
The MSXLR824Y is a replacement receiver unit within Banner Engineering’s MINI-SCREEN safety light curtain series, engineered to function with compatible MINI-SCREEN emitters and control systems. It establishes a 215 mm defined sensing area to detect object intrusion across the protected zone, supporting safeguarding distances up to 18 meters. The receiver is housed in a yellow-painted enclosure for high visibility in safety installations and includes an integral quick-disconnect for simplified electrical connection. MINI-SCREEN control boxes are no longer available, making this model suitable specifically for maintaining or servicing existing installations.
Key Features:
- 215 mm Defined Sensing Area: Creates a compact protective zone for machine access points.
- 18 m Operating Range: Supports long-distance safeguarding across equipment openings.
- Integral Quick-Disconnect: Simplifies wiring and replacement procedures.
- MINI-SCREEN Series Compatibility: Designed for integration with existing MINI-SCREEN emitters.
- High-Visibility Yellow Housing: Enhances identification in safety applications.
- Replacement Receiver Unit: Intended for servicing installed systems where control boxes are discontinued.
The MSXLR824Y delivers the reliability and precision required for industrial machine safeguarding and maintenance of existing MINI-SCREEN safety systems.
