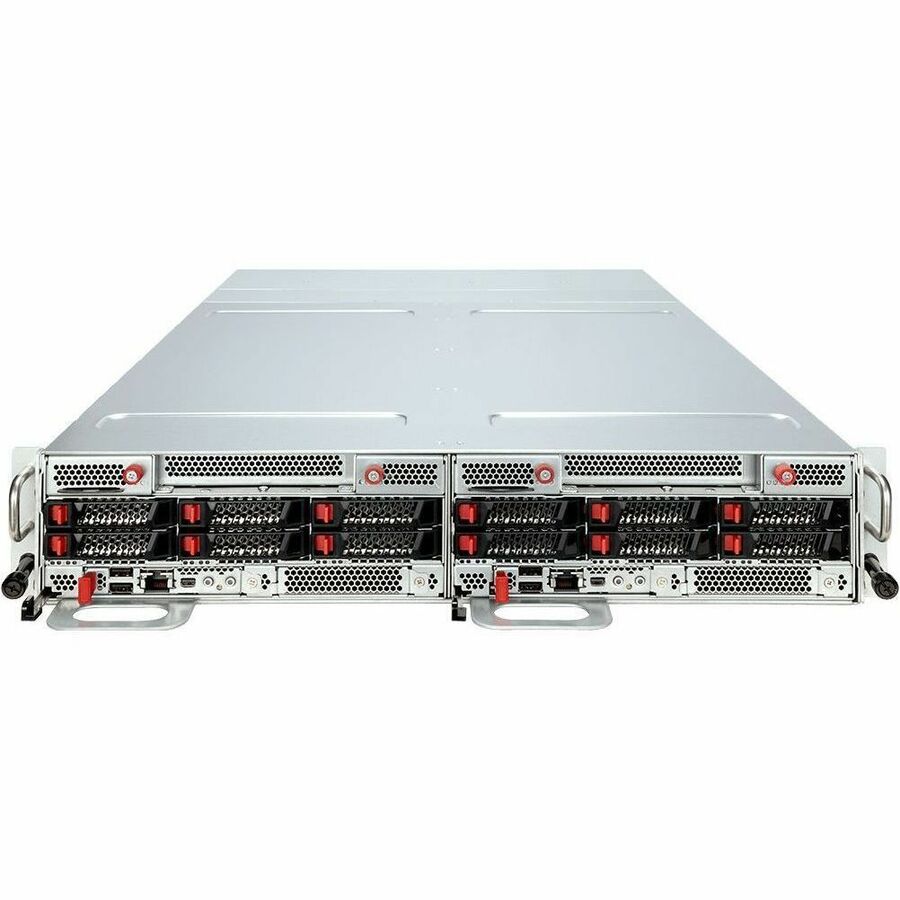

The MSI S3061D270RAU6-X2 (also referred to as the CD270-S3061-X2) is a 2U, 2-node core compute server platform. Designed under the OCP DC-MHS architecture, this system focuses on high density and thermal efficiency for data centres and cloud computing.

• 2U2N (DC-MHS architecture)

• Single Intel® Xeon® 6700 series processor, TDP up to 350W, per node

• (16) DDR5 RDIMM, 8 channels(2DPC), up to 6400MT/s, per node

• (6) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node

• (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports per node

• (1) FHHL PCIe 5.0 x16 slot per node

• (1) 1000Base-T Dedicated Server Management port per node with:

• ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support

• Dual BIOS & BMC

• TPM2.0 and Hardware Root of Trust module are supported as optional

Product Specification:

Package Contents: S3061D270RAU6-X2 Barebone Systems 1 x Quick guide 1 x Slide rail Kit 2 x CPU Coolers 2 x CRPS PSUs
Product Type: Barebone System
Input Voltage: 120 V AC,230 V AC
Manufacturer Website Address: http://www.msi.com
Packaged Quantity: 1
Form Factor: Rack-mountable
Manufacturer: MSI
Product Name: S3061D270RAU6-X2 Barebone Systems
Processor Supported: Xeon 6
Raid Levels: 0, 1, 5, 10
Controller Type: NVMe
Processor Socket: Socket LGA-4710
Rack Height: 2U
Brand Name: MSI
Plug/Connector Type: C19
Memory Technology: DDR5 SDRAM
Thermal Design Power: 350 W
Chipset Manufacturer: Intel
Graphics Controller Manufacturer: ASPEED
Number Of Power Supplies Installed: 2
Graphics Memory Accessibility: Dedicated
Number Of Processors Supported: 1
Number Of Processors Installed: 1
Raid Supported: Yes
Number Of Total Expansion Bays: 6
Number Of Pci Express X16 Slots: 1
Maximum Power Supply Wattage: 2400 W
Total Number Of Usb Ports: 2
Number Of Onboard Usb 2.0 Ports: 1
Number Of 2.5" Bays: 6
Total Number Of Expansion Slots: 1
Mini Displayport: Yes
Number Of M.2 Interfaces: 2
Number Of Usb Type A Ports: 1
Total Number Of Memory Slots: 16
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Feature1: 2U2N (DC-MHS architecture)
Feature2: Single Intel® Xeon® 6700 series processor, TDP up to 350W, per node
Feature3: (16) DDR5 RDIMM, 8 channels(2DPC), up to 6400MT/s, per node
Feature4: (6) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node
Feature5: (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports per node
Feature6: (1) FHHL PCIe 5.0 x16 slot per node
Feature7: (1) 1000Base-T Dedicated Server Management port per node with:
Feature8: ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
Feature9: Dual BIOS & BMC
Feature10: TPM2.0 and Hardware Root of Trust module are supported as optional
