Description

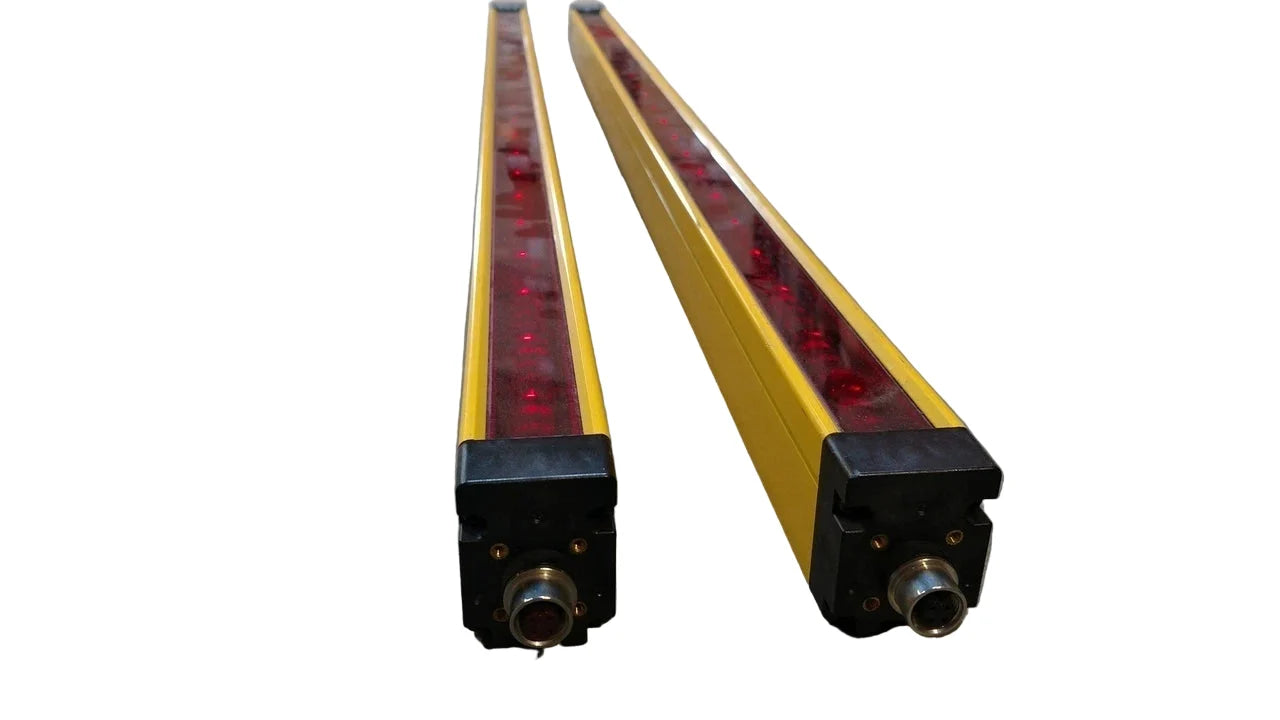

The Omron MSF4800S-FD2-30-0920 is a Minisafe safety light curtain set, designed as a paired transmitter and receiver unit for industrial safeguarding applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation and Controls |
| Part Number |
MSF4800S-FD2-30-0920 |
| Subcategory |
Safety Light Curtains
|
| Beam Resolution |
30 mm |
| Protective Field Height |
920 mm |
| Supply Voltage |
24 V DC |
| Safety Category |
Category 4 (EN 61496-1 compliant) |
| Sensing Distance |
Up to 20 m (selectable) |
| Configuration Tools |
DIP-switch, PDM for blanking, muting, etc. |
| Response Time |
~14–32 ms (ON→OFF) |
| Weight |
10 lbs |
Information About MSF4800S-FD2-30-0920
The Omron MSF4800S-FD2-30-0920 is a Minisafe safety light curtain set consisting of a matched transmitter and receiver, designed to provide high-level machine guarding in industrial environments. With a 30 mm object resolution and a 920 mm protective field height, it ensures precise intrusion detection while operating on a 24 VDC supply. Built with a rugged aluminum housing for resistance to vibration and impact, it meets Category 4, PLe, and SIL 3 safety standards, making it suitable for critical safety applications.
Key Features:
- High-Resolution Detection: 30 mm beam spacing for accurate object and personnel detection.
- Protective Height: 920 mm sensing area for comprehensive coverage.
- Durable Construction: Thick aluminum housing for vibration and impact resistance.
- Power Requirements: Operates on 24 VDC.
- Safety Compliance: Category 4, ISO 13849-1 PLe, and IEC 61508 SIL 3.
- Flexible Installation: Supports sensing distances up to 20 m and cascade connection of up to four units.
- Advanced Functions: Blanking and muting options (variant-dependent) for adaptable safety integration.
- Diagnostics: Beam alignment indicators and optional diagnostics module for setup and maintenance.
The MSF4800S-FD2-30-0920 remains a trusted choice for safeguarding machinery in legacy systems, combining precision detection, rugged build quality, and compliance with the highest safety standards.
