Description

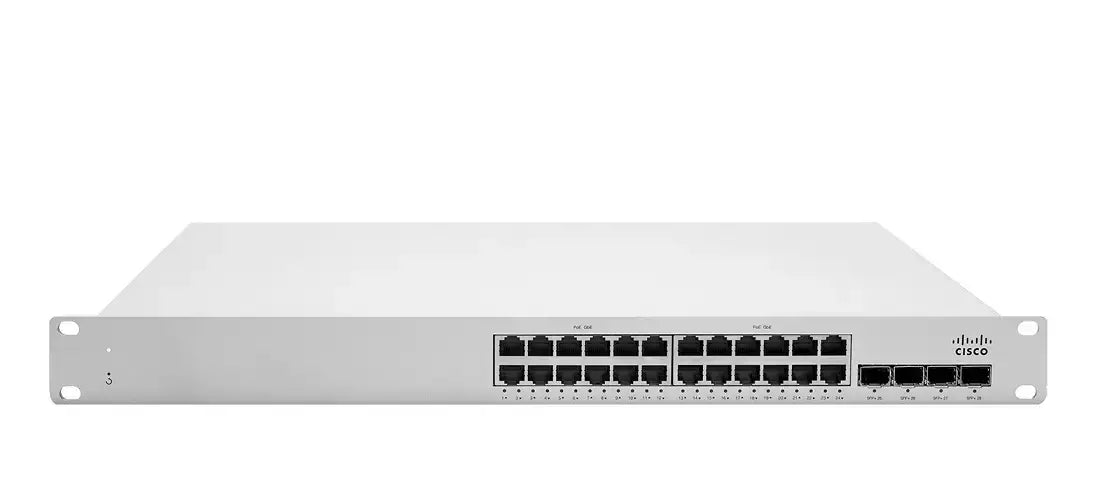

Cisco Meraki MS225-24-HW is a cloud-managed Layer 2 access switch featuring 24 Gigabit Ethernet ports and 4 SFP uplink ports. It provides enterprise-grade performance with centralized cloud management, advanced security features, virtual stacking, and layer 3 routing capabilities via license upgrade.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Cisco
Category	Networking Equipment
Part Number	MS225-24-HW
Subcategory	Managed Network Switches
Device Type	Switch 24 Ports Managed Stackable
Enclosure Type	Rack-mountable 1u
Subtype	Gigabit Ethernet
Ports	24 X 10/100/1000 + 4 X Sfp+
Stacking Bandwidth	80 Gbps
Switching Capacity	128 Gbps
Forwarding Performance	95.24 Mpps
Interfaces	24 X 1000base-t Rj-45 4 X 10gbase-x Sfp+ Uplink 2 X Network Stack Device
Weight	7.3 lbs





Information About MS225-24-HW

The Cisco Meraki MS225-24-HW is a cloud-managed Layer 2 access switch designed for enterprise branch and campus deployments. It offers 24 Gigabit Ethernet ports and 4 SFP+ uplinks, providing high-performance connectivity with simplified management through the Meraki Dashboard.

Key Features:

• Model: MS225-24-HW

• Category: Networking Equipment

• Subcategory: Managed Network Switches

• Ports:

  • 24 × 10/100/1000BASE-T Ethernet RJ45

  • 4 × 10G SFP+ uplinks

  • 2 × stacking ports

  • 1 × RJ45 management port

• Switching Capacity: 128 Gbps

• Stacking Bandwidth: 80 Gbps

• Forwarding Rate: 95.24 Mpps

• Power Consumption: 15W (idle) / 24W (full load)

• Power Supply: Fixed internal; supports optional external redundant power supply (Cisco RPS-2300)

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Mounting: 1U rack-mountable

• Cloud Management: Managed via the Meraki Dashboard, enabling centralized control and monitoring.

• Zero-Touch Provisioning: Simplifies deployment with minimal manual configuration.

• Virtual Stacking: Allows management of thousands of switch ports across multiple locations.

• Quality of Service (QoS): Supports 802.1p, DSCP, and 8 queues for traffic prioritization.

• Layer 3 Capabilities: Static routing and DHCP relay support.

• Reliability: Supports optional redundant power supply for mission-critical environments.
