Description

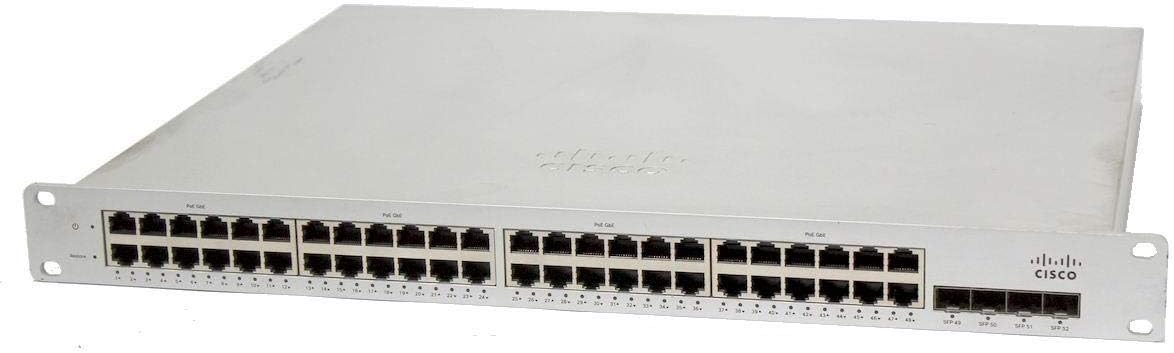

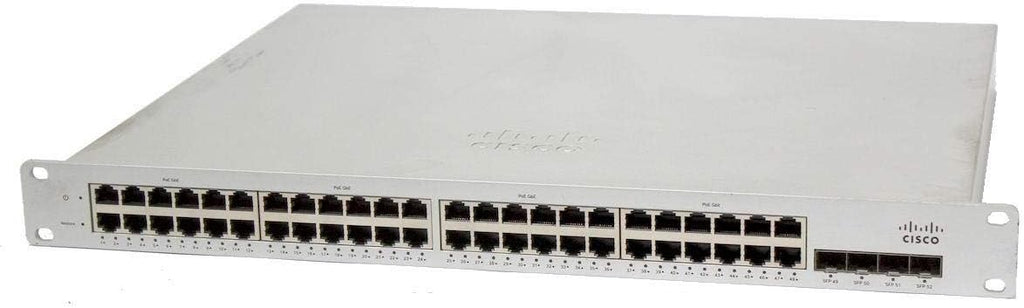

The Cisco MS220-48LP-HW is a 48-port cloud-managed Gigabit Ethernet switch with PoE, designed for scalable access layer deployments. Featuring 4 SFP uplink ports and managed through the Meraki Dashboard, it offers centralized control, Layer 2 switching, and reliable performance for enterprise and branch networks.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Cisco
Category	Networking Equipment
Part Number	MS220-48LP-HW
Subcategory	Cloud-Managed Ethernet Switches
Management Type	Cloud-Managed
Switch Type	Layer 2
Ports	48 Gigabit Ethernet Ports
Uplink Ports	4 SFP Uplink Ports
PoE Budget	370W
Mounting	Rack-mountable
Switching Capacity	104 Gbps
Forwarding Rate	77.38 Mpps
Power Supply	Internal, Dual Redundant
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Relative Humidity	5% to 95% (non-condensing)
Dimensions	440 x 305 x 45 mm
MTBF	350,000 hours
Compliance	RoHS, FCC, CE, IC
Series	Meraki MS220
Weight	4.2 kgs





Information About MS220-48LP-HW

The Cisco Meraki MS220-48LP-HW is a cloud-managed Layer 2 access switch offering 48 Gigabit Ethernet ports with integrated PoE+ and 4 SFP uplink ports. Designed for enterprise and branch networks, it simplifies network management with centralized control via the Meraki Dashboard. With zero-touch provisioning, remote diagnostics, and a quiet, fanless design, it's ideal for scalable deployments requiring reliable power and connectivity.

Key Features:

• Ports:

  • 48 x 10/100/1000BASE-T Gigabit Ethernet Ports with PoE+

  • 4 x 1G SFP Uplink Ports

• PoE Budget: 370W total

  • Supports 802.3af (PoE) and 802.3at (PoE+)

• Layer 2 Switching Features:

  • VLANs, STP/RSTP, Link Aggregation

  • Port Isolation, QoS, MAC forwarding

  • IGMP Snooping, Port Mirroring

• Cloud Management:

  • Managed via Cisco Meraki Dashboard

  • Zero-touch provisioning

  • Automatic firmware updates

  • Real-time diagnostics and alerts

• Security Features:

  • 802.1X authentication

  • DHCP Snooping

  • Port Security

  • DoS protection

• Monitoring & Management:

  • Web-based dashboard access

  • Remote monitoring and alerts

  • Role-based administration

• Switching Capacity: 104 Gbps

• Forwarding Rate: 77.4 Mpps

• Cooling: Variable-speed fans

• Power Supply: Integrated

• Mounting: Rack-mountable (1U)

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

Ideal for midsize to large network deployments requiring centralized management, high port density, and reliable PoE+ support for IP phones, cameras, and access points.
