Description

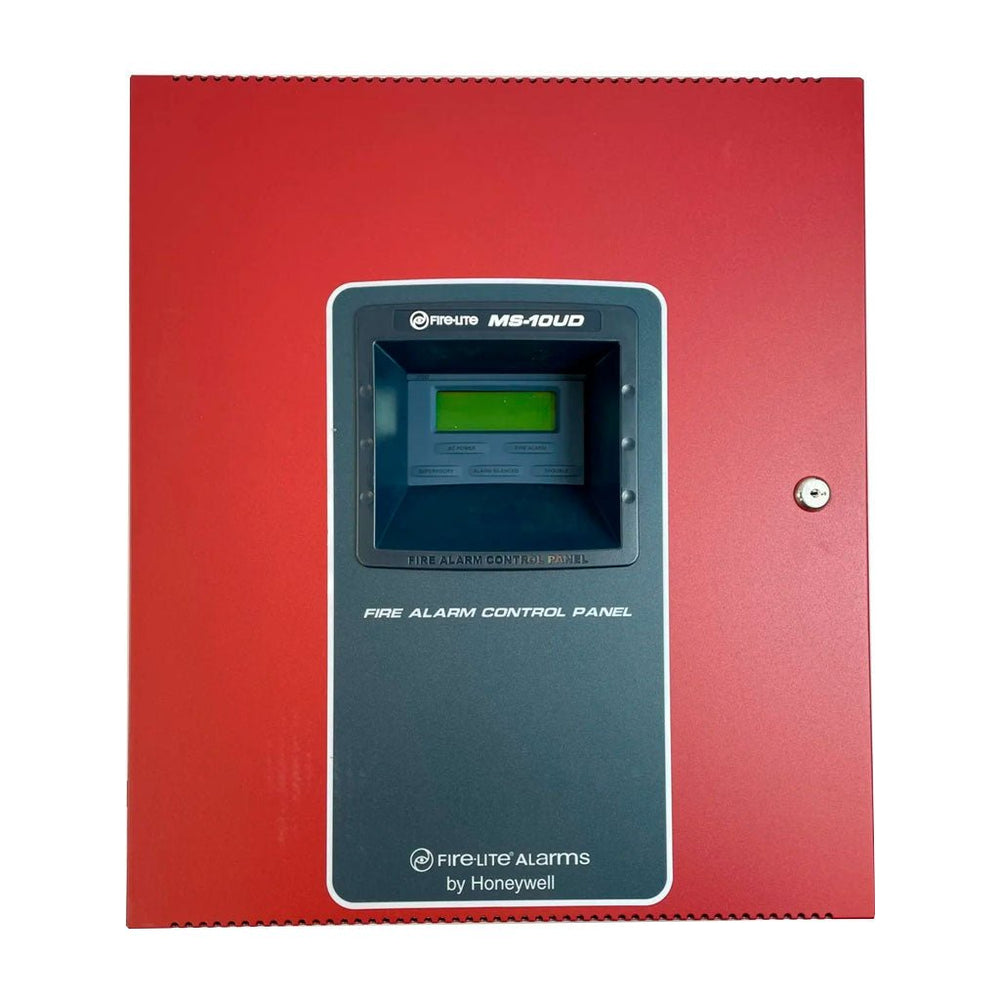

The Fire-Lite MS-10UD-7 is a 10-zone conventional fire alarm control panel equipped with a 7-amp power supply and backbox. Designed for small to medium-sized facilities, it combines easy programmability, NAC synchronization, and integrated digital communication in a compact unit. The panel provides advanced features often found in addressable systems, making it a reliable and cost-effective fire protection solution.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Fire-Lite |
| Category |
Fire Safety |
| Part Number |
MS-10UD-7 |
| Subcategory |
Fire Alarm Control |
| Panel Type |
Conventional FACP |
| Zones |
10 Class B or 5 Class A (with module) |
| NAC Circuits |
4 × Class B (Style Y) or 4 × Class A (Style Z with modules) |
| NAC Synchronization |
Built-in for multiple device brands |
| Relays |
3 × Form-C programmable relays |
| Power Supply |
7.0 A usable current |
| Input Power |
120 VAC, 50/60 Hz, 3.8 A |
| Charging Capacity |
Up to 26 AH batteries |
| Charger Output |
27.6 VDC @ 1.4 A, supervised |
| Communicator |
Built-in two-line DACT |
| Programming Interface |
Integrated 80-character LCD and keypad |
| Annunciator Support |
Up to 8 remote devices (LCD, LED, relay, or printer modules) |
| Operating Temp |
32°F to 120°F (0°C to 49°C) |
| Humidity |
Up to 93% RH, non-condensing |
| Dimensions |
Standard backbox with integrated power supply |
| Weight |
20.50 lbs |
Information About MS-10UD-7
The MS-10UD-7 is part of Fire-Lite’s UD Series, offering a conventional FACP with 10 Class B zones or 5 Class A zones when using optional modules. It includes four NAC circuits that can be configured for Class A or Class B wiring, and built-in synchronization supports major notification appliance brands. A large backlit LCD and keypad allow full programming without an external tool, while its built-in Digital Alarm Communicator Transmitter (DACT) provides remote monitoring. Expansion modules such as relay boards, remote annunciators, and printer interfaces extend its functionality, making the MS-10UD-7 suitable for a wide range of installations.
Key Features:
- 10 Conventional Zones: Supports 10 Class B or 5 Class A zones with optional module.
- Four NAC Circuits: Configurable for Class A or Class B operation, with 7.0 A total usable current.
- Integrated Programming: 80-character LCD with backlit display and keypad for local setup.
- Built-In DACT: Provides two-line digital communication for remote monitoring.
- NAC Synchronization: Compatible with System Sensor, Wheelock, Gentex, Faraday, and Amseco devices.
- Expandable Annunciation: Supports up to 8 remote annunciator devices.
- Programmable Relays: Three Form-C relays for alarm, trouble, and supervisory.
- Battery Backup: Supports batteries up to 26 AH with supervised charging.
The MS-10UD-7 delivers the reliability and flexibility required for conventional fire alarm applications with advanced system features.
