Description

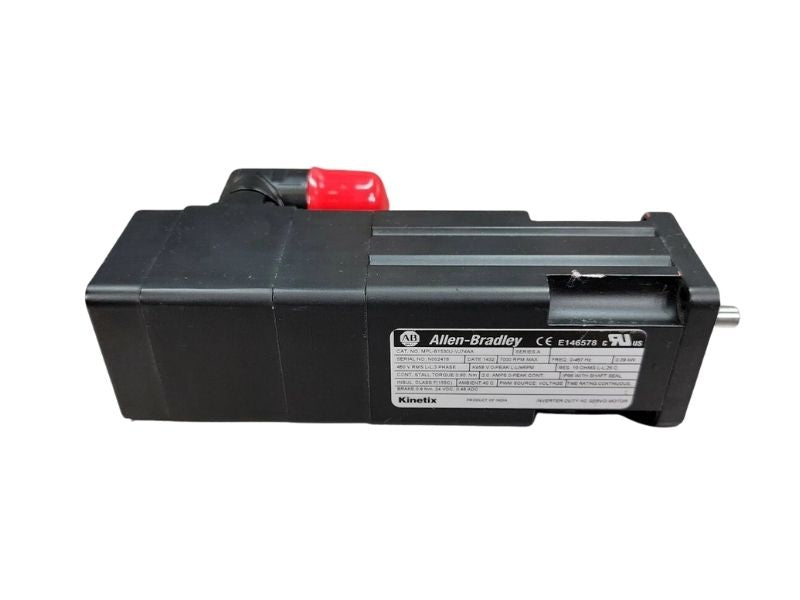

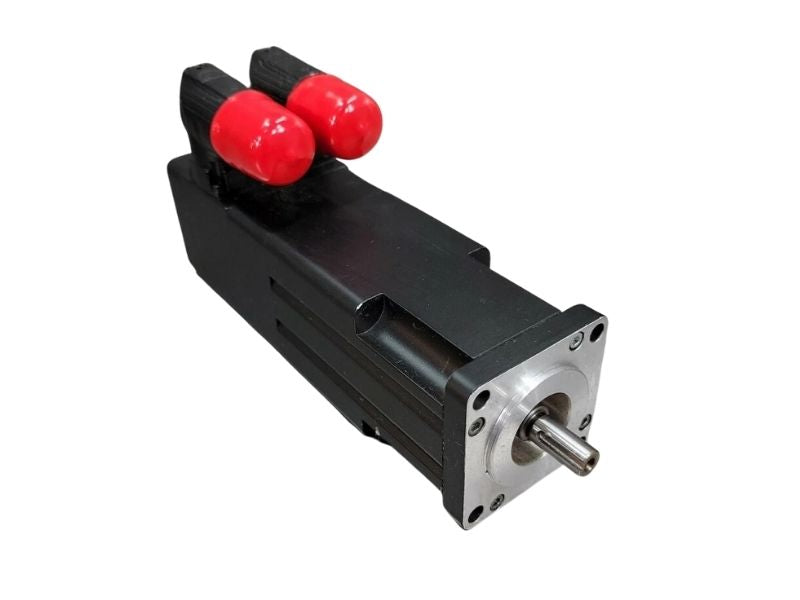

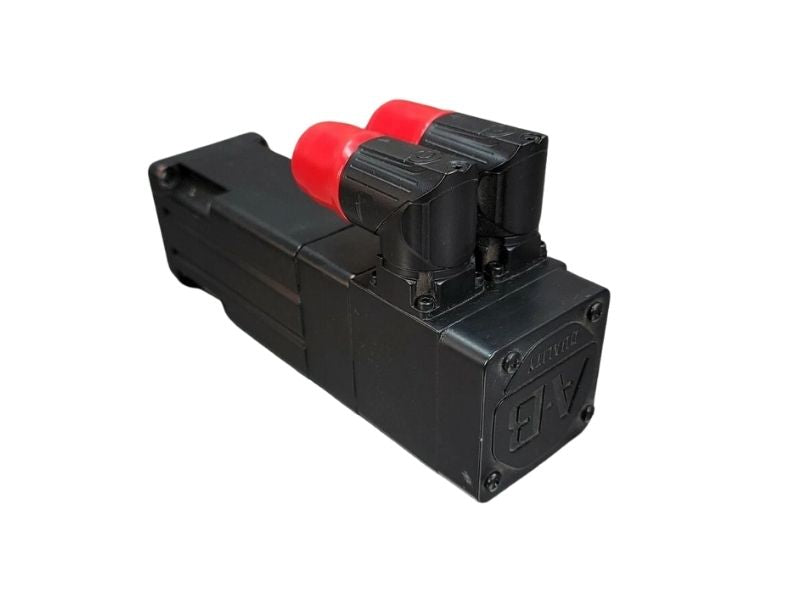

The Allen-Bradley MPL-B1530U-VJ74AA is a high-performance brushless servo motor from the MP-Series, designed for demanding motion control applications. This low-inertia servo motor operates at 460 Volts AC and features a rated speed of 7000 RPM.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley |
|
Category
|
|
|
Part Number
|
MPL-B1530U-VJ74AA
|
| Subcatecory |
|
| Series |
Premium permanent magnet rotary servo motor |
| Series Type |
Low-inertia |
| Voltage Class |
460 VAC |
| Frame Size |
63 millimeters |
| Magnetic Stack Length |
3 inches |
| Rated Speed |
7000 rpm |
| Feedback |
Multi-turn high-resolution encoder |
| Shaft Key/Seal |
Shaft key/no shaft seal |
| Connectors |
Circular DIN, right angle, 180 degrees rotatable |
| Brake |
24 Volts DC brake |
| Mounting Flange |
IEC metric |
| Factory Designated Options |
Standard |
Information About MPL-B1530U-VJ74AA
The MPL-B1530U-VJ74AA is part of the MP-Series of low-inertia servo motors from Allen-Bradley, known for their compact size, high responsiveness, and reliable operation. This model is equipped with a multi-turn high-resolution encoder for accurate position feedback and uses circular DIN right-angle connectors for streamlined installation. It is ideal for applications requiring precise positioning and rapid acceleration, such as packaging, material handling, and robotics.
Key Features:
-
7000 RPM Rated Speed: Supports high-speed operations ideal for rapid response applications.
-
Low Inertia Design: Enhances dynamic performance by minimizing the load on the servo drive during rapid starts and stops.
-
Multi-Turn High-Resolution Encoder: Provides accurate and repeatable feedback for precision motion control.
-
24V DC Holding Brake: Built-in brake holds load in place when the motor is not powered—ideal for vertical axis control.
-
Compact 165 mm Frame Size: Offers powerful performance in a space-saving form factor.
-

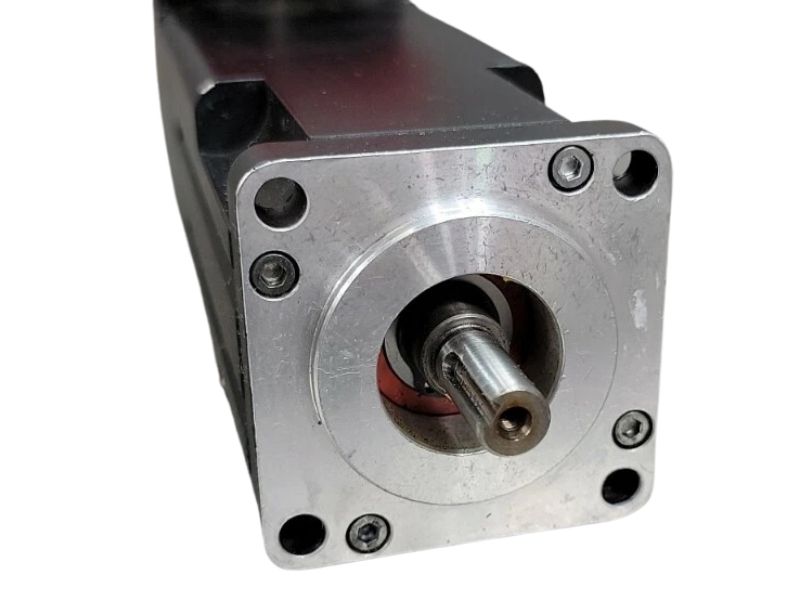

IEC Metric Mounting Flange: Ensures compatibility with global mounting standards for easy integration.
-

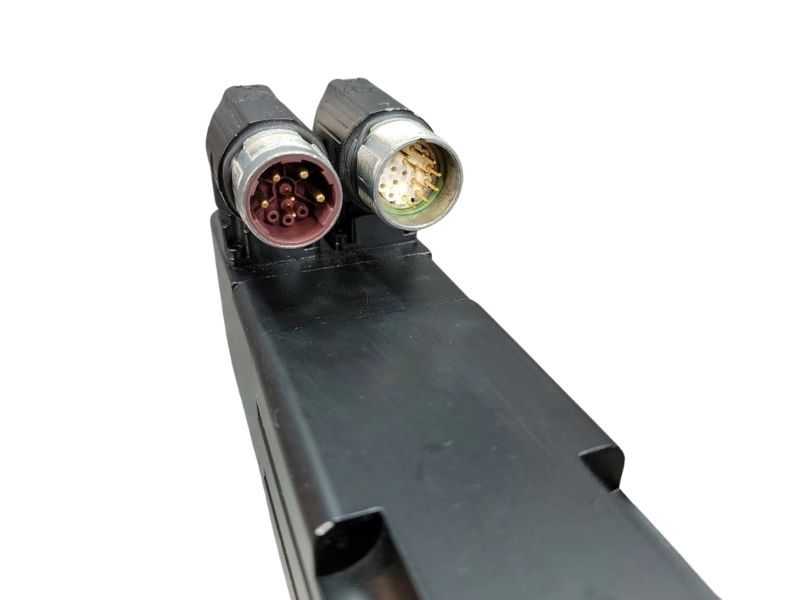

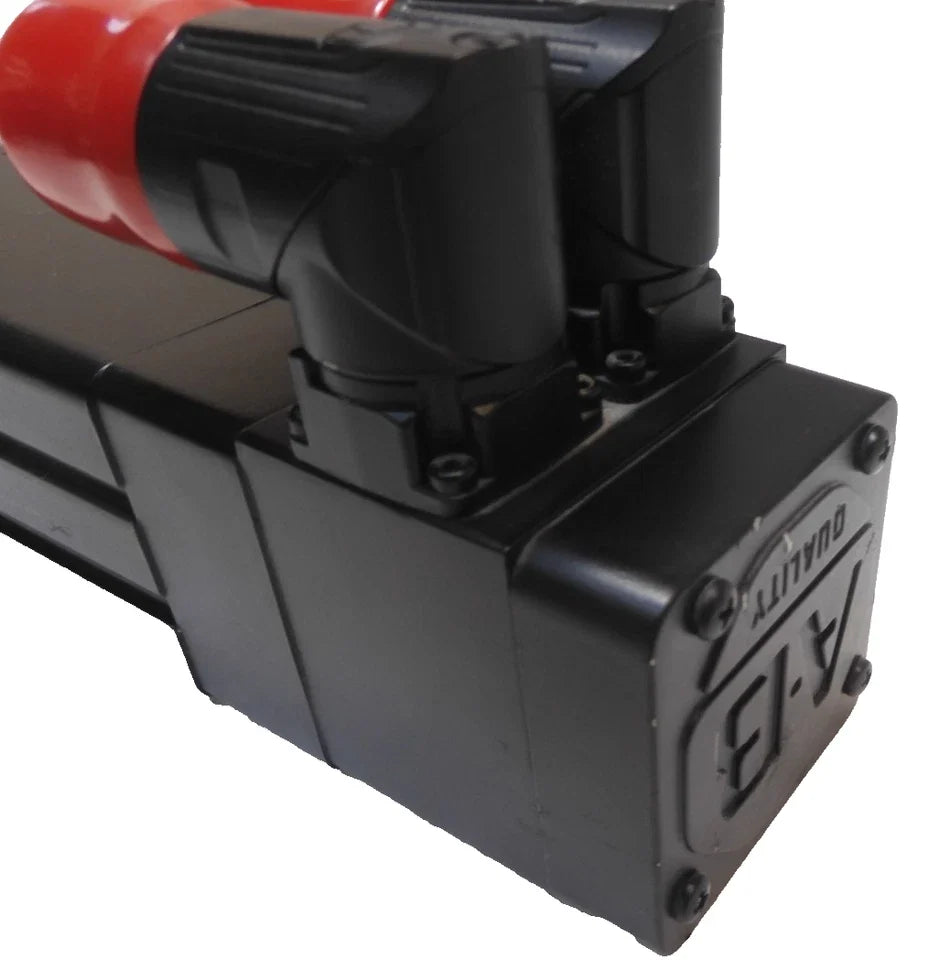

Circular DIN Connectors (Right Angle, 180° Rotatable): Facilitates simplified cable routing and reliable connectivity.
The MPL-B1530U-VJ74AA is ideal for industrial applications requiring fast, accurate motion control in compact environments.
