Description

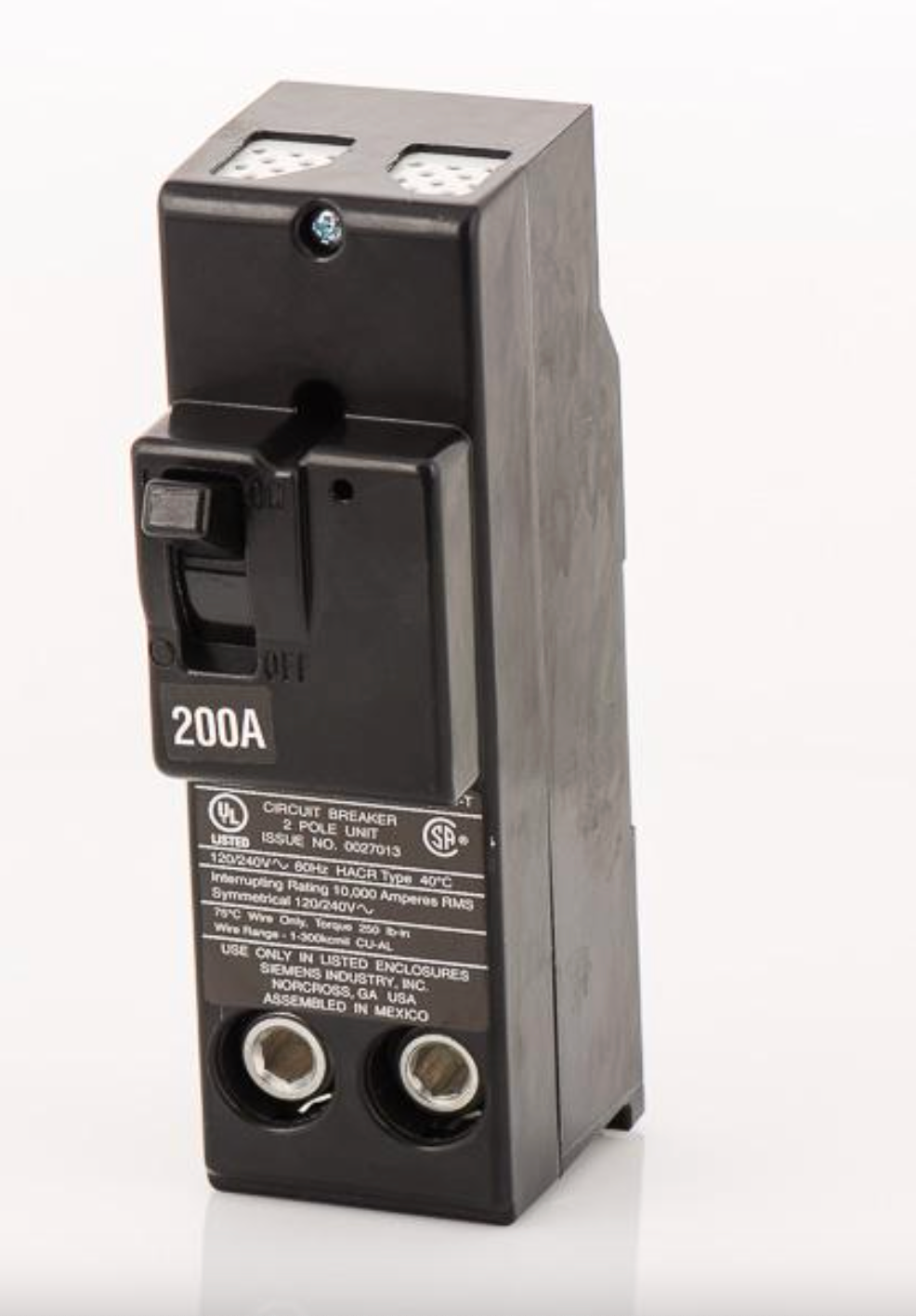

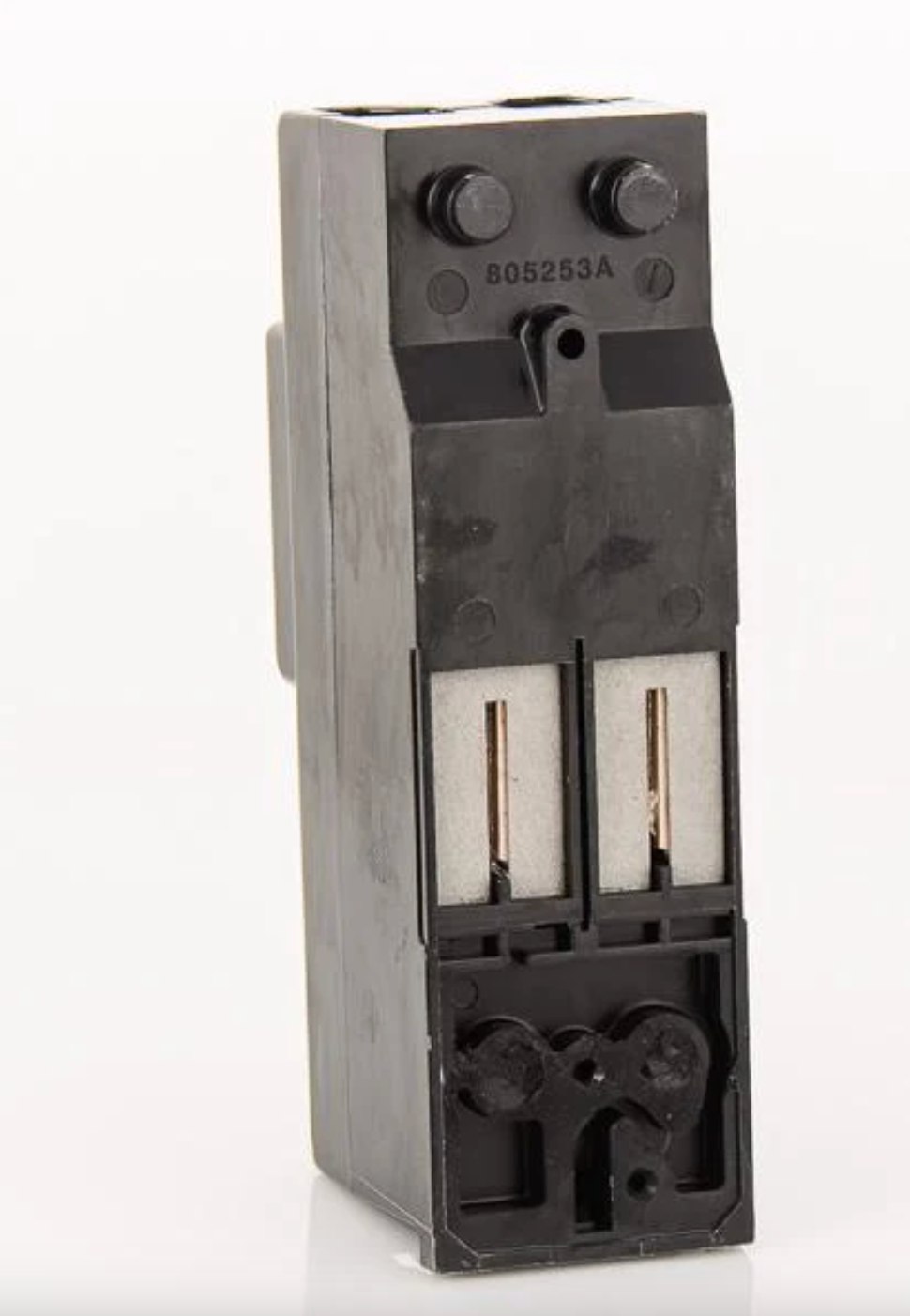

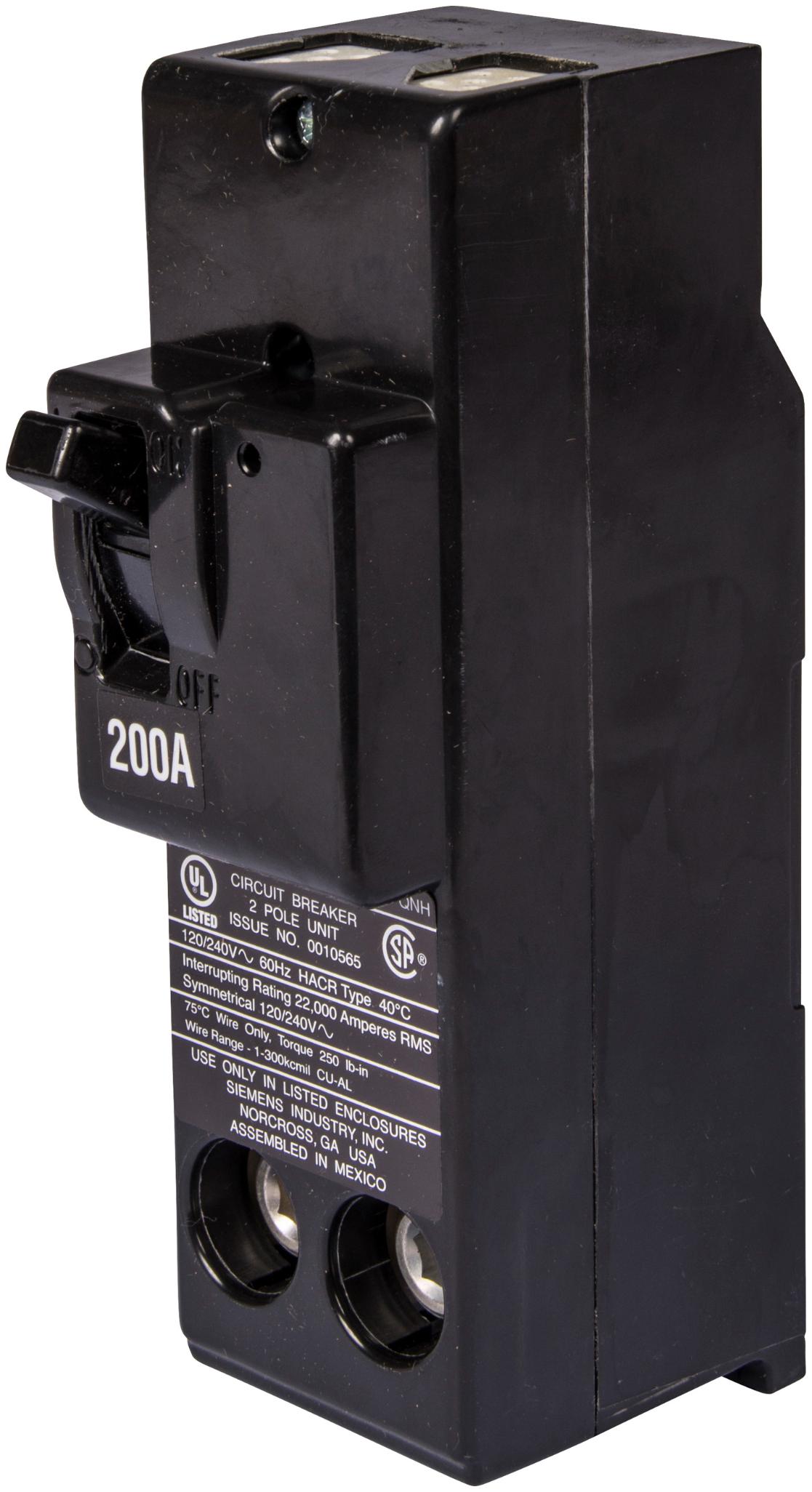

The Siemens MPD2200 is a molded case circuit breaker designed to provide reliable overcurrent protection for commercial and industrial branch circuits. This 2-pole breaker is rated at 200 amps and operates at 120/240VAC using a thermal-magnetic trip unit for dependable fault response. Featuring a plug-in mounting design, the MPD2200 supports efficient installation in compatible load centers and panelboards.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Circuit Breaker |
| Part Number |
MPD2200 |
| Subcategory |
Molded Case Circuit Breaker |
| Series |
MD Series |
| Frame Type |
MPD |
| Breaker Type |
MD-T |
| Amperage Rating |
200 A |
| Voltage Rating |
120/240 VAC |
| Number of Poles |
2 |
| Phase |
Single Phase |
| Trip Unit Type |
Thermal-Magnetic |
| Trip Functions |
Long-Time and Instantaneous |
| Interrupt Rating |
10 kAIC @ 240 V |
| Mounting Type |
Plug-In |
| Connection Type |
Plug-In |
| Common Trip |
Yes |
| Certifications |
CSA Approved |
| Weight |
7 lb |
Information About MPD2200
The MPD2200 is part of the Siemens MD Series molded case circuit breakers, engineered for single-phase power distribution applications. It utilizes a non-adjustable thermal-magnetic trip mechanism that provides long-time and instantaneous protection against overloads and short circuits. Designed with a plug-in connection style, this breaker integrates securely into Siemens and ITE panelboards requiring MD-series compatibility. Its CSA approval and standard interrupt rating make it suitable for regulated commercial and light industrial environments.
Key Features:
- 200 Amp Current Rating: Supports high-load branch and feeder circuits
- 2-Pole Configuration: Ensures coordinated protection across two conductors
- Thermal-Magnetic Trip Unit: Provides reliable long-time and instantaneous fault protection
- 10kA Interrupt Rating: Rated at 10kAIC at 240V for short-circuit protection
- Plug-In Mounting: Enables quick installation and secure bus engagement
- Single-Phase Operation: Designed for 120/240VAC distribution systems
- Common Trip Design: Trips both poles simultaneously for enhanced safety
The MPD2200 delivers the reliability and precision required for commercial and industrial power distribution protection.
