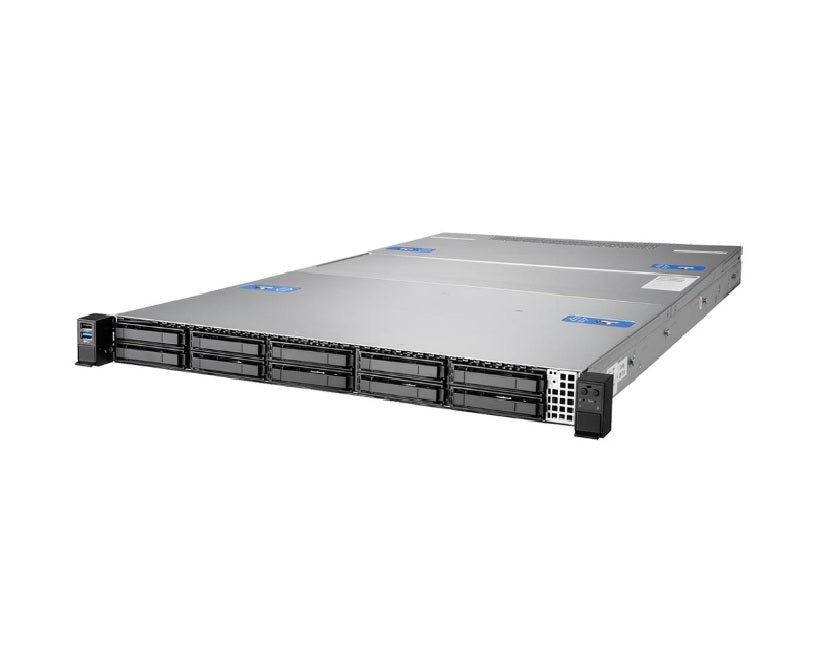

The MiTAC R1520G6U2XD is a compact 1U dual-socket server barebone platform designed for general-purpose enterprise workloads, including cloud computing, virtualization, and data analytics. It is optimized for high-density environments, offering a balance of compute power and memory capacity in a slim rackmount form factor.
Specifications
Model Number: R1520G6U2XD
Brand: MITAC
Alt Part Number(s): R1520G6U2XD
Product Type: Barebone Server
Technical Description
Brand: MITAC
Model Number: R1520G6U2XD
Processor Type: Intel Xeon
Processor Core: 144-Core
Processor Power: Max up to 250W
Processor Socket: 2 × Socket LGA4710
Motherboard: R520G6SB
Graphics Controller: ASPEED AST2600
Networking: 1 × Gigabit Ethernet (RJ‑45)
Number of Drive Bays: 10 × 2.5″ hot-swap NVMe U.2
Expansion Slots: 1 x PCIe 5.0 x16
Memory Supported: Up to 8TB
Memory Technology: DDR5
Memory Speed: DDR5‑6400 MT/s, DDR5‑5200 MT/s, MRDIMM up to 8000 MT/s
Memory Slots: 32 DIMM slots
Memory Channels: 8-Channels
Cooling: 8 × 4056 system fans
Power Supply: 1+1 redundant 1300 W, 80 PLUS Titanium
Form Factor: 1U Rackmount
Height: 1.69"
Width: 17.26"
Depth: 30.31"
