Model Number: M50FCP2UR312
Brand: MITAC
Alt Part Number(s): M50FCP2UR312
Product Type: Server
Technical Description
Brand: MITAC
Model: M50FCP2UR312

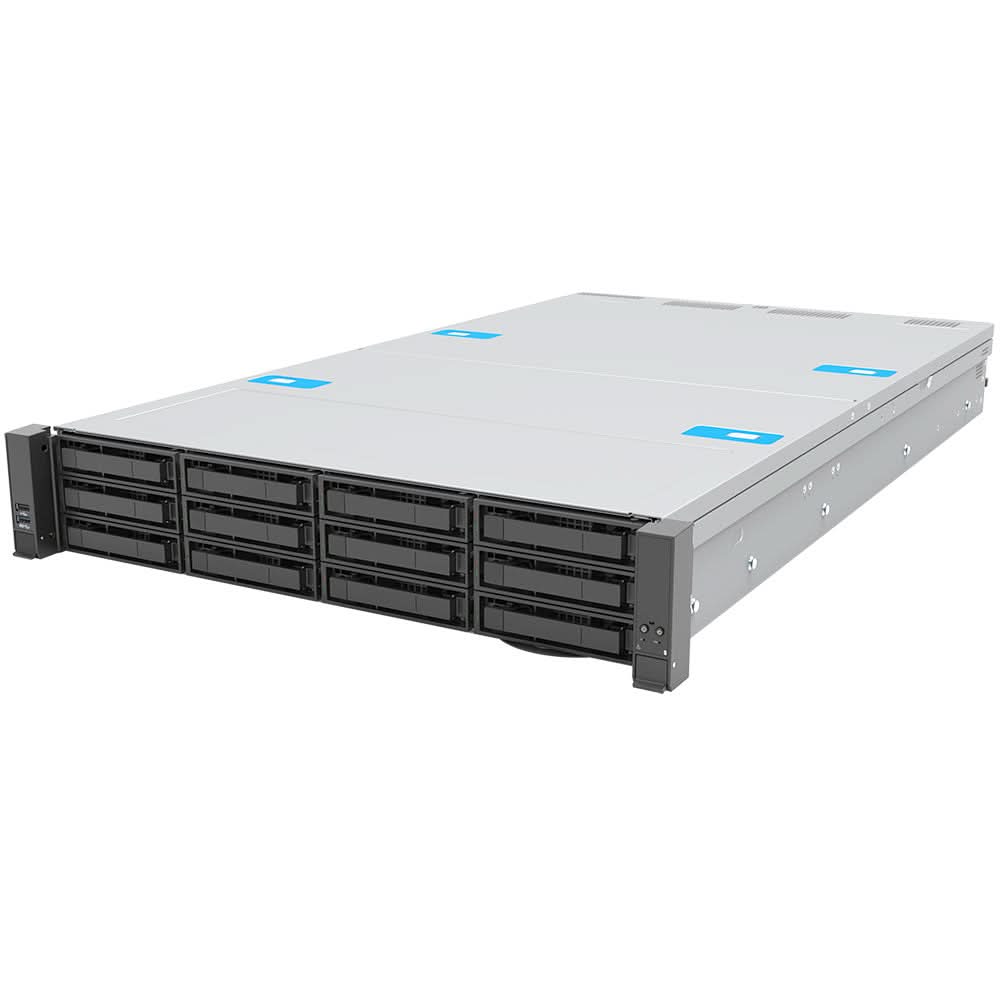

Product Description: Intel Server System M50FCP2UR312 - rack-mountable no CPU - 0 GB - no HDD
Type: Server - rack-mountable
Height (Rack Units): 2U
Processor: No CPU
Processor Socket: LGA4677 Socket-E
RAM: 0 GB (installed) / 12 TB (max) - DDR4 SDRAM
Storage Controller: RAID
Server Storage Bays: Hot-swap 3.5"
Hard Drive: No HDD
Optical Storage: No optical drive
Dimensions (WxDxH): 30.3 in x 17.2 in x 3.4 in
Product Form Factor: Rack-mountable - 2U
Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip
Hot-Swap Bays Qty: 10
CPU: No CPU
Max CPU Qty: 2
CPU Socket: LGA4677 Socket-E
Motherboard Name: Intel Server Board M50FCP2SBSTD
Installed RAM Size: 0 GB (installed) / 12 TB (max)
RAM Technology: DDR4 SDRAM
RAM Form Factor: DIMM 288-pin
RAM Slots: 32 (total)
RAM Features: Load-Reduced DIMM (LRDIMM)
Hard Drive Type: No HDD
Storage Controller Type: RAID
RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10
Optical Drive Type: No optical drive
Monitor Type: None
Drive Bays: 12 (total) / 12 (free) x hot-swap 3.5"
Interfaces:
2 x USB 3.0 (1 front, 1 rear)
2 x USB 2.0 (1 front, 1 rear)
1 x serial
Included Accessories:
Front I/O panel assembly
16 x DIMM slot blanks
Chassis with Quick Reference Label affixed to top cover
12 x 3.5" hot-swap drive carriers
2U server airduct
2 x processor carrier clips
2U Hot-swap backplane spare CYPHSBP2312
6 x 2U fan kit CYPFAN2UKIT
Cables Included:
I2C cable
Power splitter cable
Power Device Type: Power supply
Installed Power Supply Qty: 0
*
