Overview

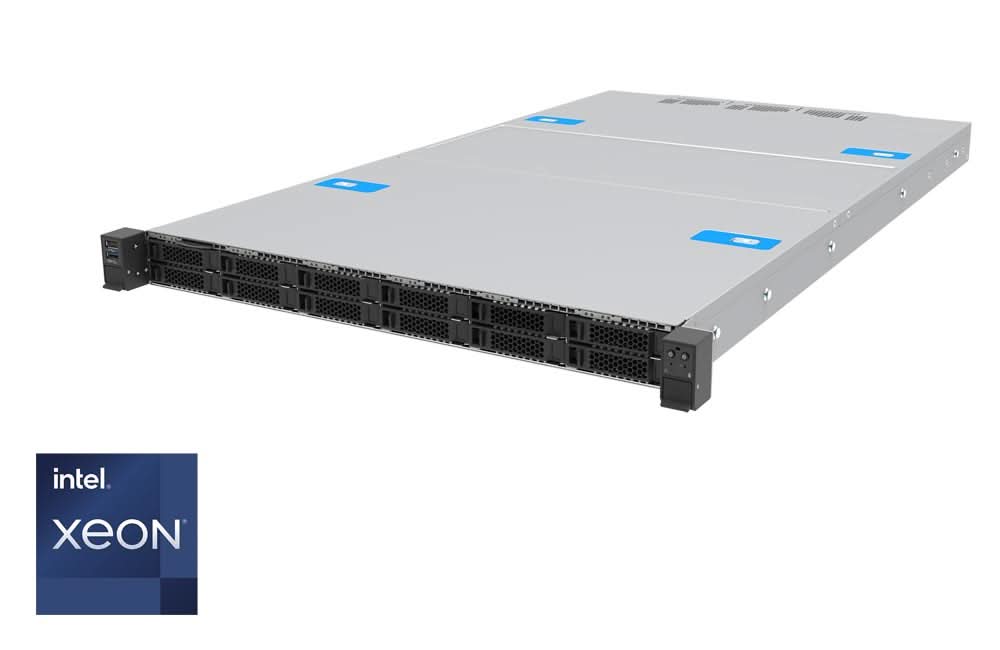

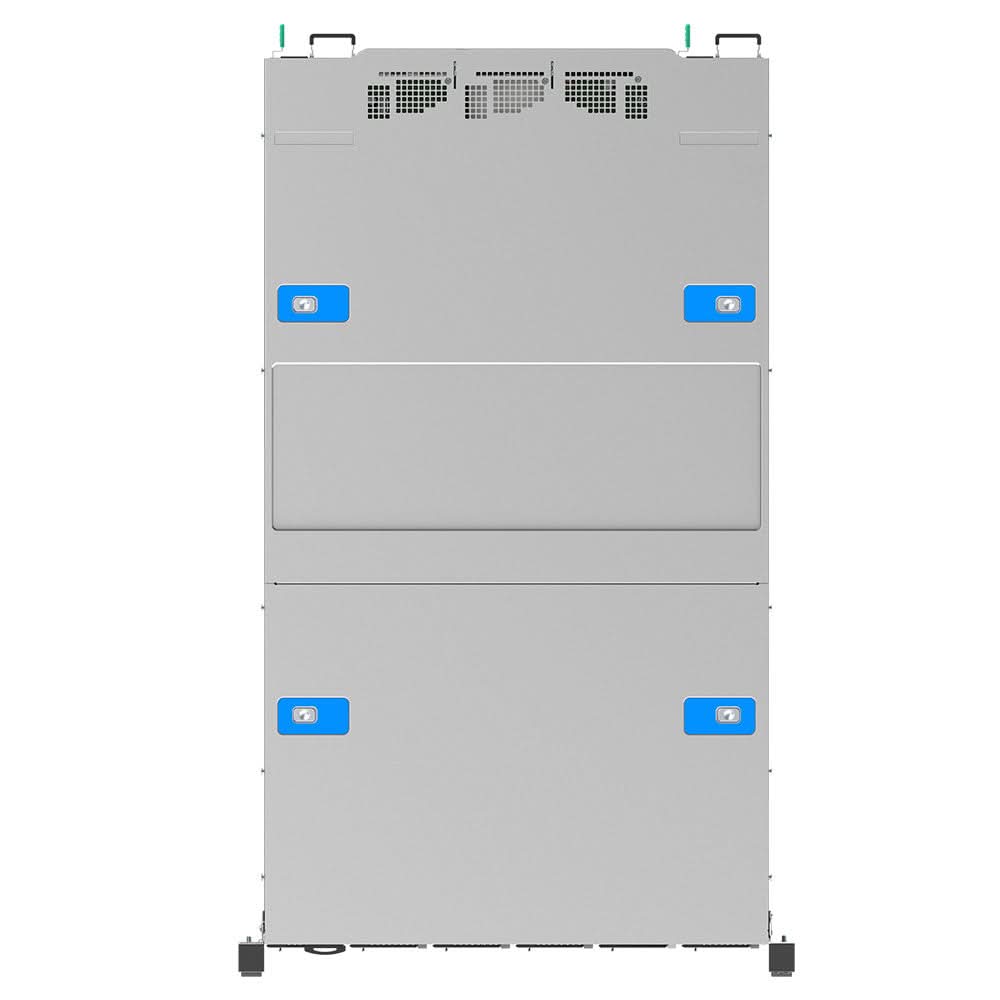

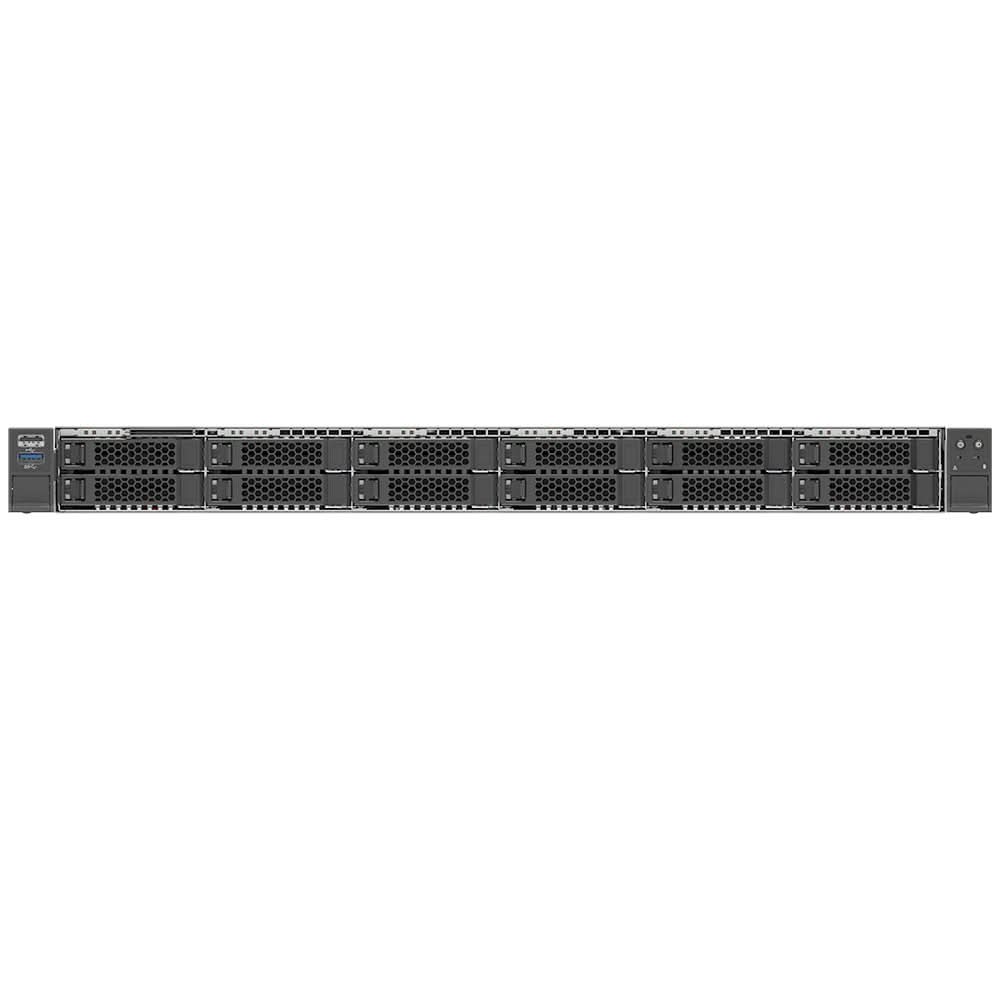

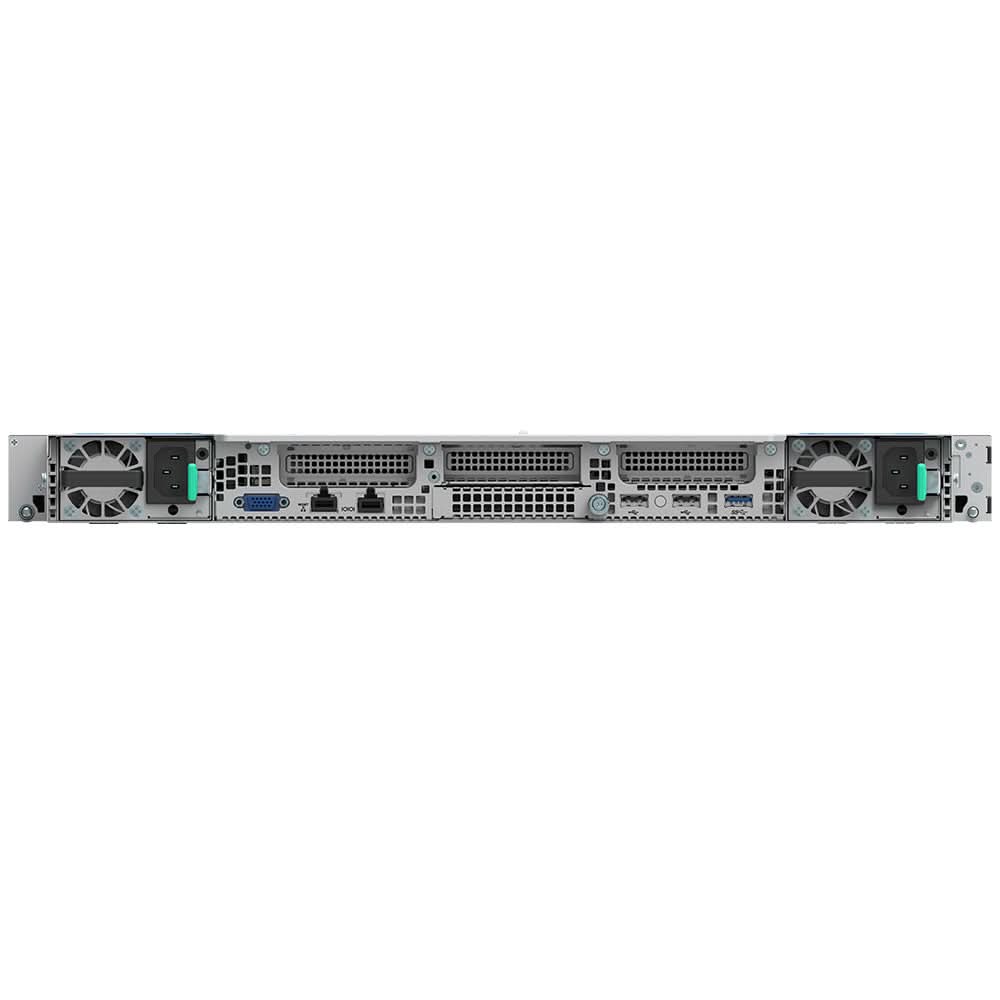

MITAC M50FCP1UR212 Intel Server System DDR4 SDRAM 1U Rackmount Server
Specifications
Model Number:M50FCP1UR212
Brand: MITAC
Alt Part Number(s):M50FCP1UR212
Product Type: Server
Technical Description
Brand: MITAC
Model:M50FCP1UR212
Form Factor: 1U Rackmount, GPU Servers
Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip
Internal Bays Qty: 12
Hot-Swap Bays Qty: 12
CPU: No CPU
Max CPU Qty: 2
CPU Socket: LGA4677 Socket-E
Motherboard Name: Intel Server Board M50FCP2SBSTD
Installed Size: 0 GB (installed) / 12 TB (max)
Technology: DDR4 SDRAM
Form Factor: 1U Rackmount
Slots: 16 (total)
Features: Load-Reduced DIMM (LRDIMM)
Type: No HDD
Type: RAID
RAID Level: RAID 0, RAID 1, RAID 5, RAID 10
Type: No optical drive
Monitor Type: None.
Bays: 12 (total) / 12 (free) x hot-swap 2.5"
Interfaces: 2 x USB 3.0 (1 front, 1 rear)
3 x USB 2.0 (1 front, 2 rear)
1 x serial
Included Accessories: Front I/O panel assembly
16 x DIMM slot blanks
Chassis with Quick Reference Label affixed to top cover
2 x processor carrier clips
8 x 1U spare fan kit
2 x EVAC heatsinks
1U Spare PCIe Riser
Cables Included: I2C cable
Power splitter cable
Device Type: Power supply
Installed Qty: 0
*
