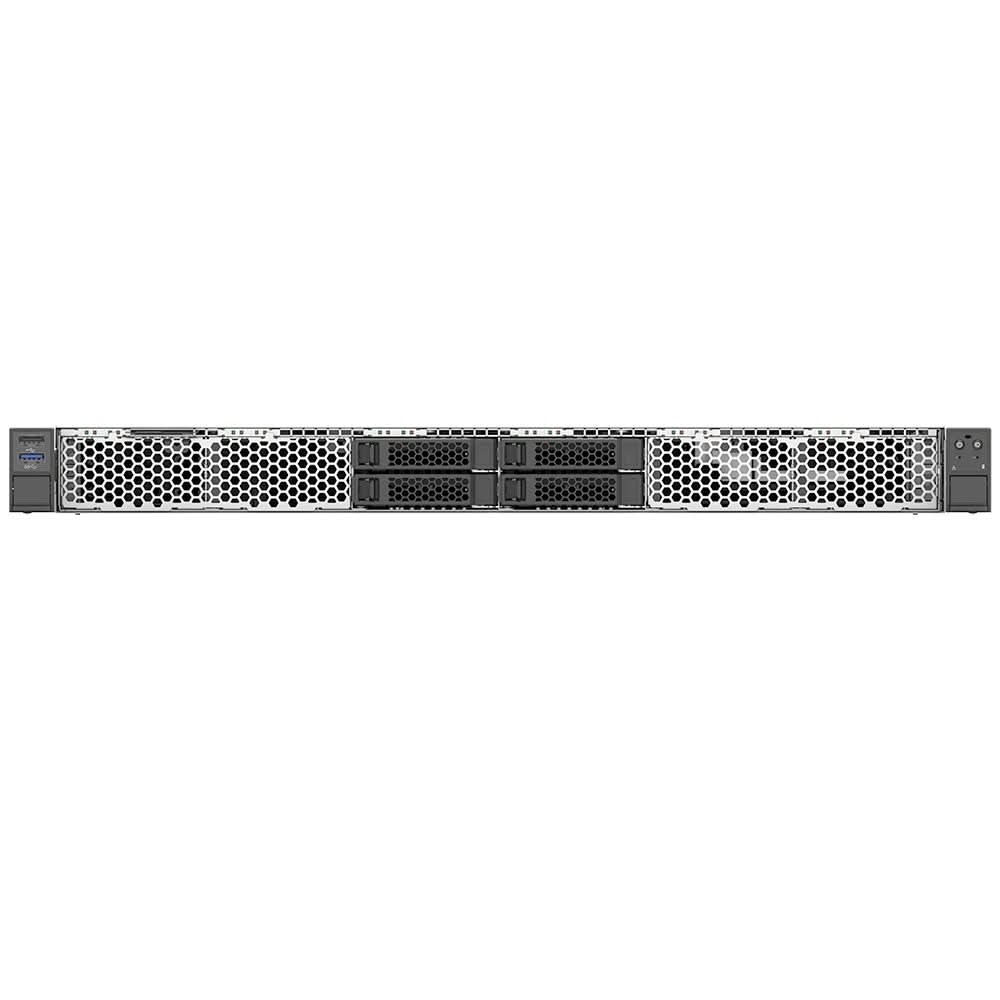

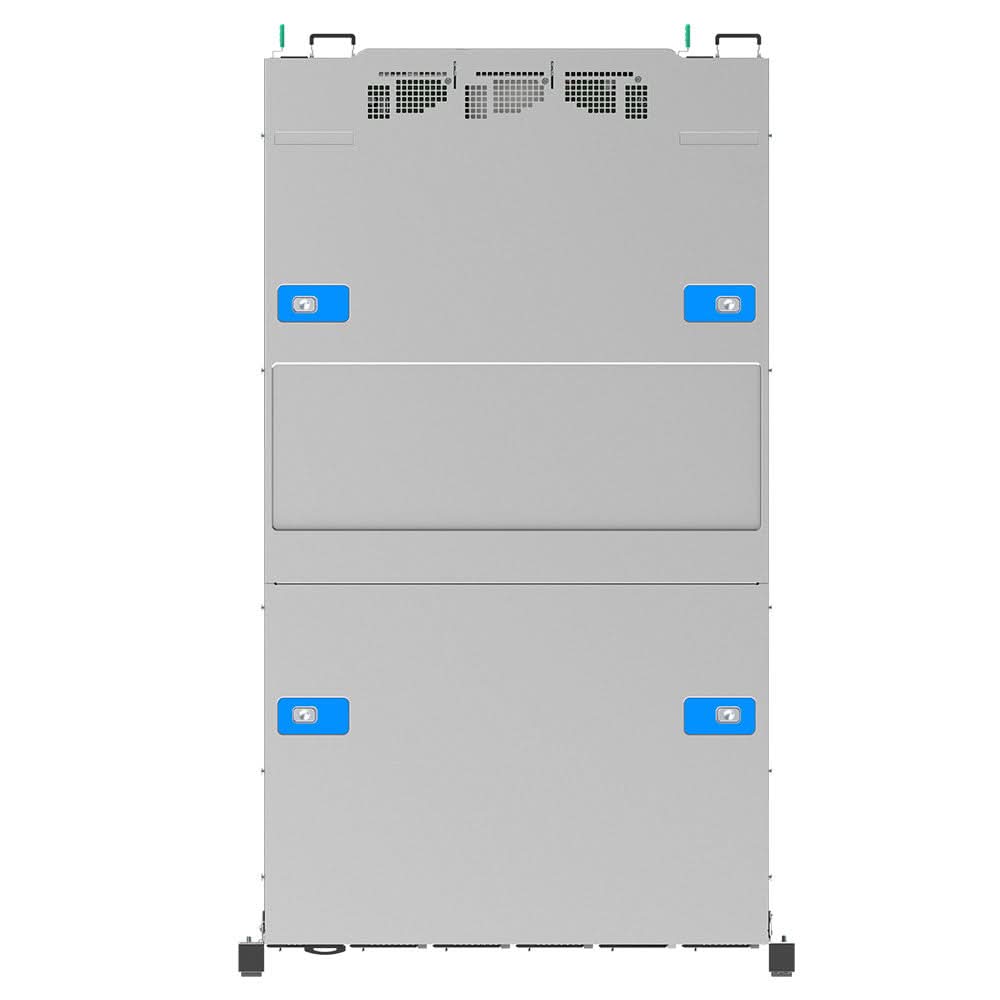

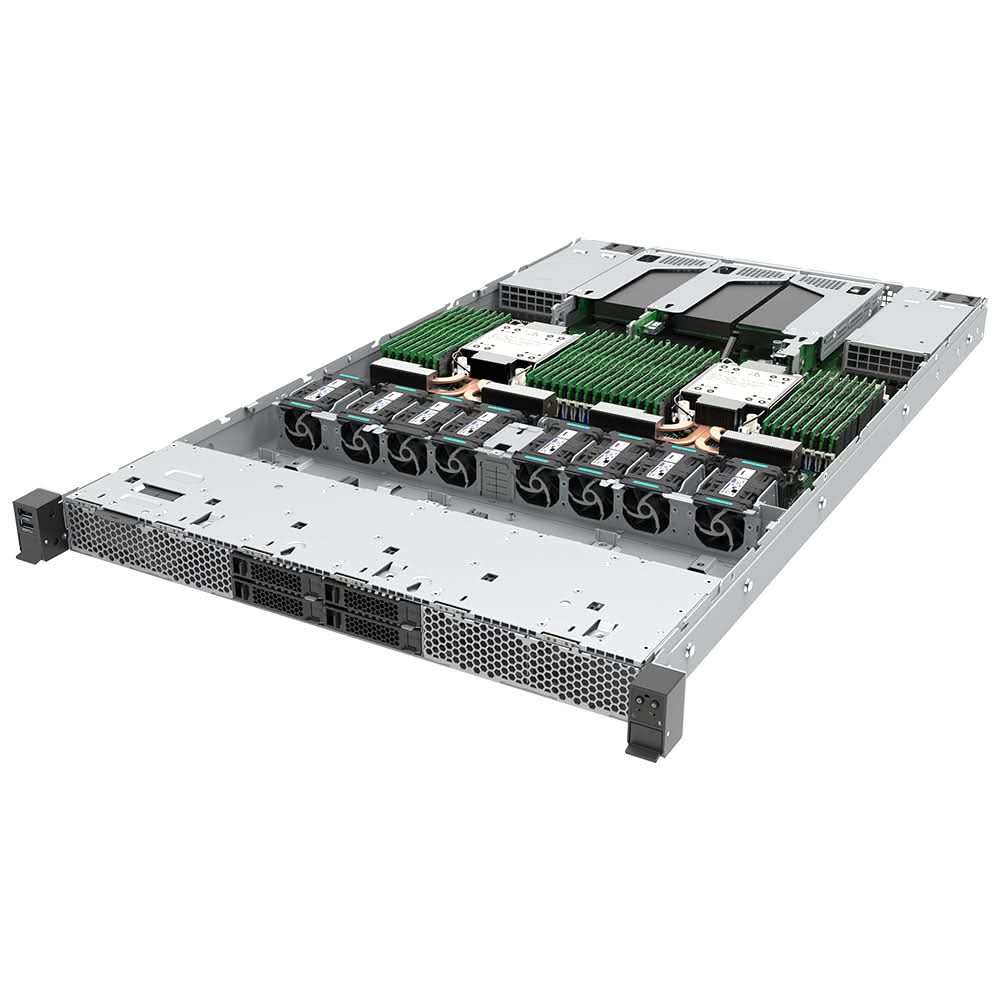

MITAC M50FCP1UR204 5th/4th Gen Intel Xeon Scalable 1U Rackmount Server
Specifications
Model Number:M50FCP1UR204
Brand: MITAC
Alt Part Number(s):M50FCP1UR204
Product Type: Server
Technical Description
Brand: MITAC
Model:M50FCP1UR204
Form Factor: 1U Rackmount
Processor / Type: No CPU (supports up to 2)
Processor Socket: LGA4677 Socket-E
Motherboard Name: Intel Server Board M50FCP2SBSTD
RAM / Technology: DDR4 SDRAM (LRDIMM)
RAM / Total Slots Qty: 16
RAM / Max Supported Size: 12 TB
Storage Controller: RAID (supports RAID 0, 1, 5, 10)
Hard Drive / Bays Qty: 4 × Hot-swap 2.5" bays
Hard Drive / Installed: No HDD included
Optical Drive: No optical drive
Embedded Security: Trusted Platform Module (TPM 2.0)
Interfaces & Connections: 2 × USB 3.0 (1 front, 1 rear), 3 × USB 2.0 (1 front, 2 rear), 1 × Serial port
Power / Device Type: Power Supply (not included)
Power / Installed Qty: 0
Included Accessories: Chassis with Quick Reference Label, 16 × DIMM slot blanks, 2 × Processor carrier clips, 8 × 1U spare fans, 2 × EVAC heatsinks, 1U Spare PCIe Riser, Front I/O panel assembly
Cables Included: I2C cable, Power splitter cable
*
