Overview

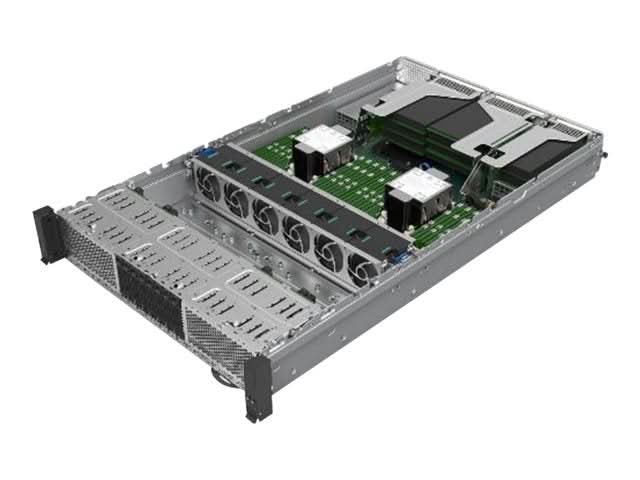

MITAC M50CYP2UR208 Socket P4 2U Rack-mountable Server.
Specifications
Model Number:M50CYP2UR208
Brand: MITAC
Alt Part Number(s):M50CYP2UR208
Product Type: Server
Technical Description
Brand: MITAC
Model:M50CYP2UR208
Product Description: Intel Server System M50CYP2UR208 - Rackmount, No CPU, 0 GB RAM, No HDD
Type: Server - Rackmount
Height: 2U
Processor Installed: None
Max CPU Supported: 2
CPU Socket: Socket P4
Chipset: Intel C621A
RAM Installed / Max: 0 GB / 12 TB
RAM Technology: DDR4 SDRAM
RAM Form Factor: 288-pin DIMM
RAM Slots: 32 total
RAM Features: Load-Reduced DIMM (LRDIMM)
Storage Bays:
24 total / 24 free × 2.5" hot-swap
8 × hot-swap bays
2 × internal bays
Drive Type Installed: None
Storage Controller: RAID
RAID Levels Supported: RAID 0, 1, 5, 10
Optical Drive: None
Monitor: None
Interfaces:
4 × USB 3.0 (1 front, 3 rear)
2 × USB 2.0 (1 internal)
2 × Serial ports
Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip
Power Supply Type: Power Supply (not included)
Power Supplies Installed: 0
Included Accessories:
2 × Standard CPU carriers
6 × System fans
Air duct
16 × DIMM slot blanks
Front I/O panel assembly
Intel Server Board M50CYP2SBSTD
Chassis with Quick Reference Label affixed to top cover
Cables Included:
I2C cable
Power splitter cable
*
