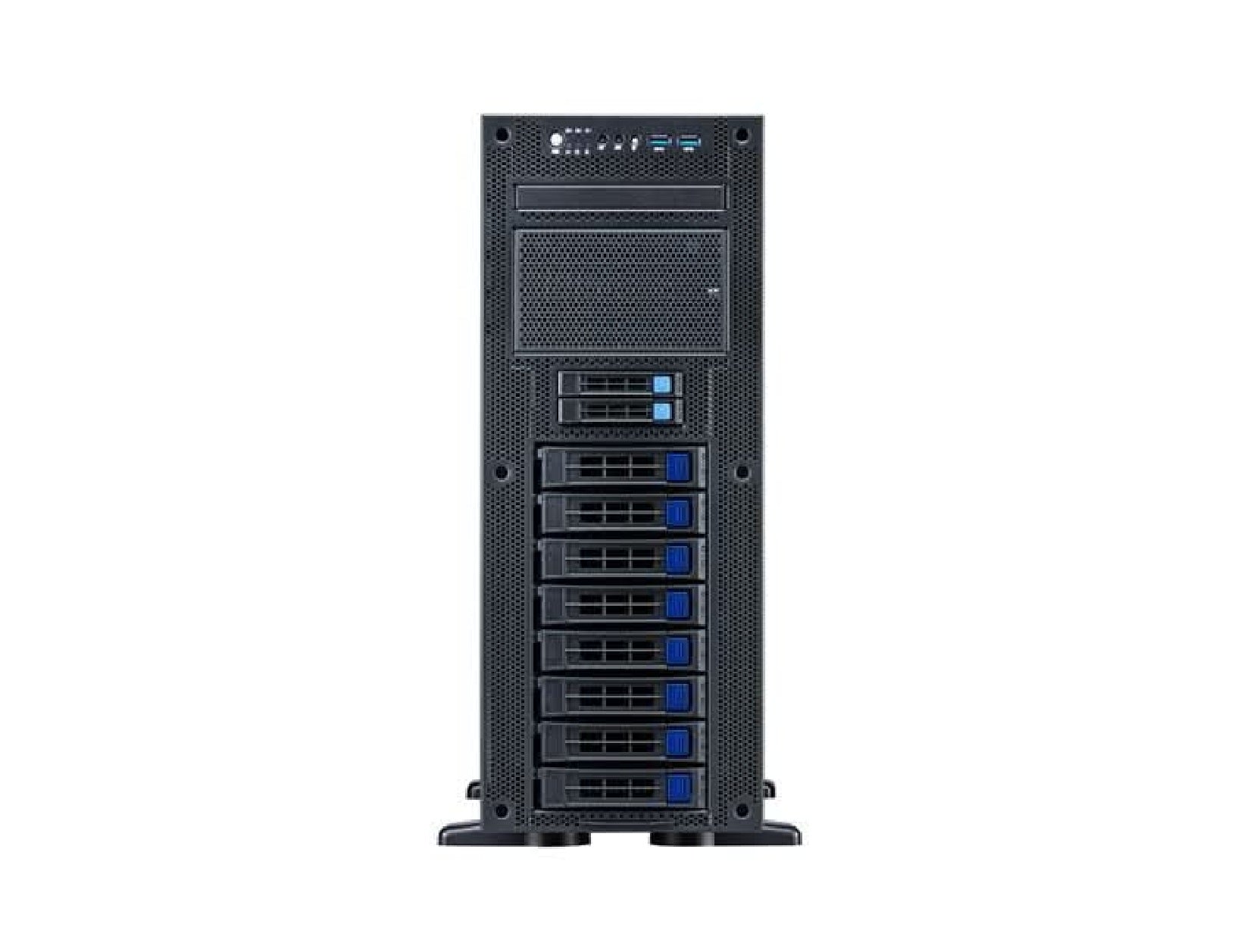

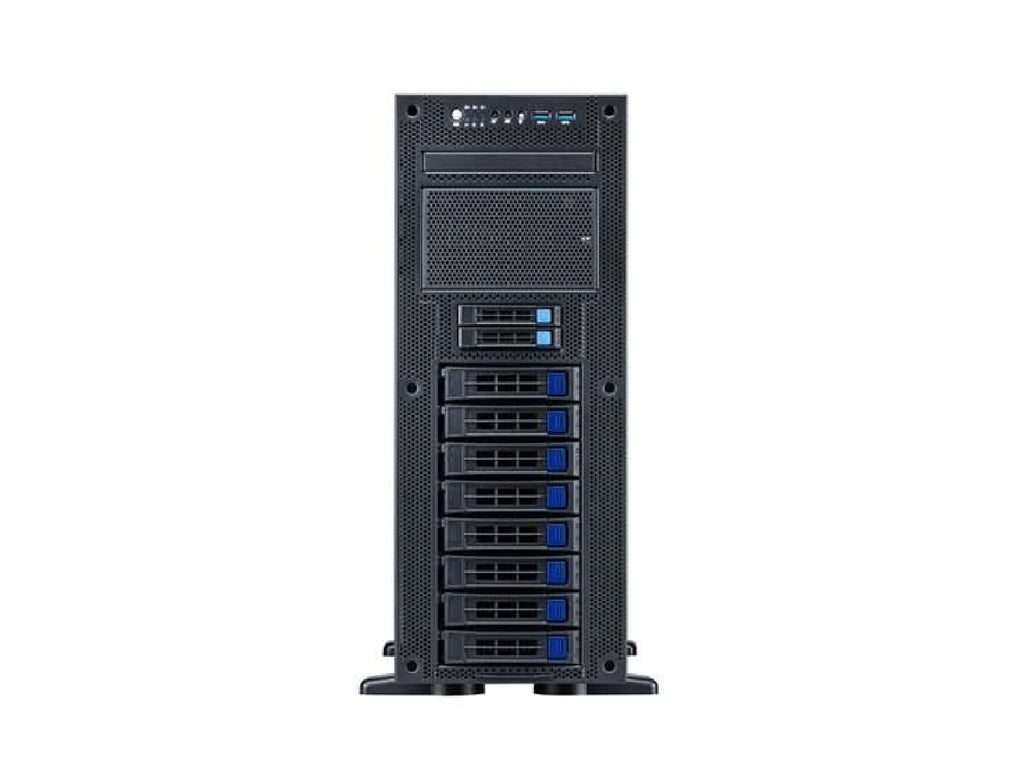

The B8050F65TV8E2H-N is a specific stock-keeping unit (SKU) for the MiTAC TYAN Transport HX FT65T-B8050, a high-performance, single-socket 4U pedestal deskside server tower. It is engineered primarily for enterprise workloads, data-intensive processing, and High-Performance Computing (HPC) or general-purpose GPU (GPGPU) applications
Specifications
Model Number: B8050F65TV8E2H-N
Brand: MITAC
Alt Part Number(s): B8050F65TV8E2H-N
Product Type: Barebone Server
Technical Description
Brand: MITAC
Model: B8050F65TV8E2H-N
Processor Type: AMD EPYC 9004 and 9005 Series
Processor Core: 192 Core / 384 Thread
Processor Socket: 1x AMD Socket SP5
Processor Power: Up to 320W cTDP
Motherboard: Tyan S8050GM2NE
Number of Drive Bays: 8 × 3.5" SATA hot-swap + 2 × NVMe U.2 hot-swap + 2 × M.2 22110/2280 NVMe
Storage Controller: 8 × SATA/SAS (6Gb/s / 12Gb/s), 2 × SATA/NVMe (SATA-600 / NVMe)
GPU Support: Up to 2 double-width + 2 single-width GPUs
Graphics Controller: ASPEED AST2600
Networking: 2 × 1GbE (Intel I210-AT), 1 × Management LAN (IPMI 2.0)
Expansion Slots: 5 × PCIe 5.0 x16, 2 × M.2 (2280/22110), 2 × U.2
Memory Supported: Up to 2TB
Memory Technology: DDR5
Power Supply: 1 × 2000W (80 PLUS Platinum), AC 100–240V
Cooling: 5 System Cooling Fans
Form Factor: 4U Tower
