[shortdesc] 5 GHz Wi-Fi 6 outdoor CPE, 16 dBi directional antenna, 1200 Mbit/s max data rate, 1× Gigabit Ethernet, Passive PoE-in (12–28 V), RouterOS v7 Level 4 [/shortdesc]
[properties]
| Model |
MikroTik SXTsq 5 ax |
| SKU / Model (US Version) |
SXTsq-5axD-US |
| Product Code |
SXTsq-5axD |
| Product Type |
Outdoor 5 GHz Wi-Fi 6 (802.11ax) CPE / directional wireless unit |
| Wireless Standards |
802.11a/n/ac/ax (5 GHz, Wi-Fi 6) |
| Operating Frequency (US) |
5170–5835 MHz (factory locked; cannot be removed) |
| Max Wireless Data Rate (5 GHz) |
1200 Mbit/s |
| Antenna Gain |
16 dBi |
| Ethernet Ports |
1× 10/100/1000 (Gigabit) Ethernet |
| Power Input |
Passive PoE-in, 12–28 V DC |
| Max Power Consumption |
6 W |
| Operating System |
RouterOS v7 (License Level 4) |
| Enclosure Rating |
IP55 |
[/properties]
[specifications]
| CPU |
Dual-Core IPQ-5010, 800 MHz |
| CPU Architecture |
ARM 64bit |
| RAM |
256 MB DDR3L |
| Storage |
128 MB NAND |
| Wireless Interface Model |
QCN-6102 |
| Wireless Chains (5 GHz) |
2 |
| Wireless Generation |
Wi-Fi 6 |
| RF Performance (5 GHz) |
6MBit/s: Tx 24 dBm / Rx -96 dBm; 54MBit/s: Tx 21 dBm / Rx -80 dBm; MCS7: Tx 20 dBm / Rx -75 dBm; MCS9: Tx 18 dBm / Rx -70 dBm; MCS11: Tx 16 dBm / Rx -67 dBm |
| Dimensions |
129 × 129 × 34 mm |
| MTBF |
Approximately 100,000 hours at 25°C |
| Tested Ambient Temperature |
-40°C to +70°C |
| Power Adapter (Included) |
24 V, 0.38 A |
| FCC ID |
TV7SXTS5AX |
| IC ID |
7442A-SXT5AX |
| Regulatory Note (5150–5250 MHz) |
Operation in 5150–5250 MHz band is only for indoor use to reduce potential interference to co-channel mobile satellite systems |
| EU Declaration of Conformity (Product Family) |
RED 2014/53/EU; RoHS 2011/65/EU incl. (EU) 2015/863; EN IEC 62311:2020; LVS EN IEC 62368-1:2024; EN 301 489-1 V2.2.3; EN 301 489-17 V3.3.1; EN 301 893 V2.2.1; IEC 63000:2018 |
[/specifications]
[accesories]
| Included |
24 V 0.38 A power adapter, Gigabit PoE injector, Hose clamp |
[/accesories]
Compact Outdoor Wi-Fi 6 CPE Built for Reliable 5 GHz Links

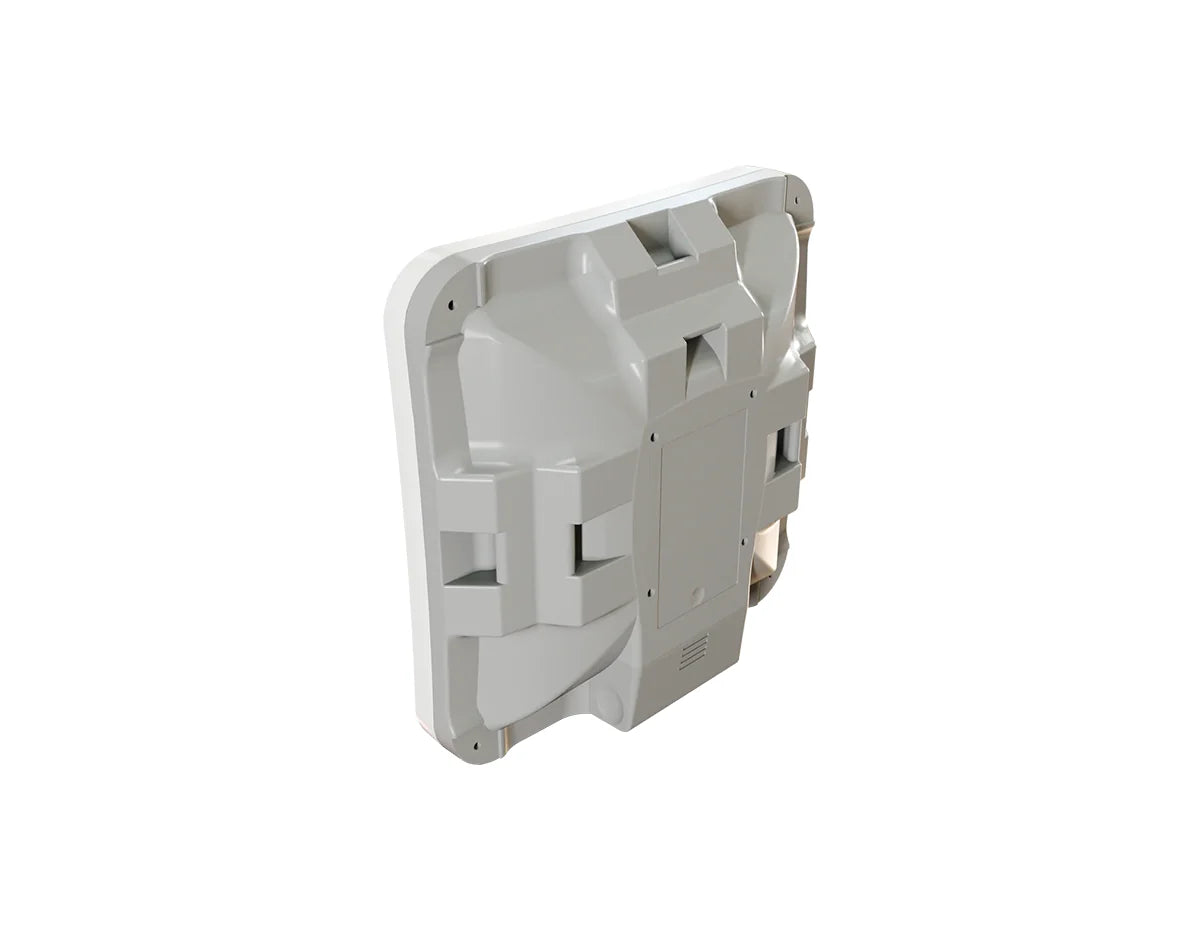

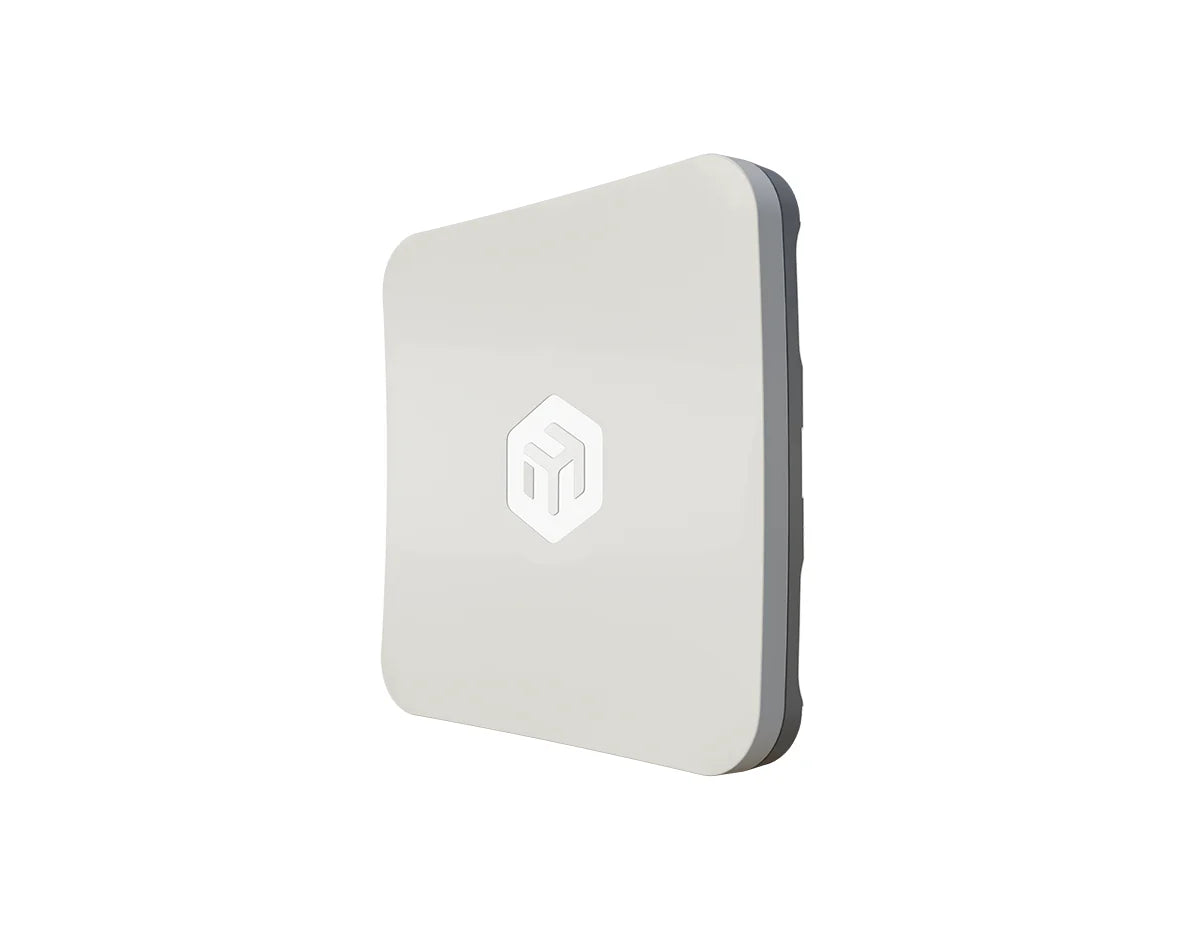

The MikroTik SXTsq 5 ax (SXTsq-5axD-US) is a compact, weatherproof 5 GHz Wi-Fi 6 CPE designed for stable point-to-point links and last-mile client connectivity. Its integrated 16 dBi directional antenna helps maintain link quality in challenging RF environments, while the Gigabit Ethernet port supports real-world throughput for cameras, remote offices, and WISP subscriber sites.
Key Benefits & Features
-
Wi-Fi 6 performance at 5 GHz: 802.11a/n/ac/ax support with up to 1200 Mbit/s max data rate for efficient spectrum usage.
-
Directional 16 dBi antenna: Built-in gain improves signal focus for longer distances and more stable links.
-
Gigabit Ethernet uplink: 1× 10/100/1000 port helps avoid wired bottlenecks.
-
Simple single-cable powering: Passive PoE-in (12–28 V DC) for clean outdoor installs.
-
RouterOS v7 Level 4: Can be configured as an access point (AP mode) or CPE, enabling flexible deployments.
Ideal Use Cases
- Point-to-point wireless bridges for buildings and remote sites
- WISP subscriber CPE for last-mile connectivity
- Outdoor connectivity for IP cameras and perimeter devices
- Temporary links for events, construction sites, or backup WAN paths
- Rooftop / mast deployments where compact size and low power matter
Technical Specifications Summary
-
CPU: Dual-Core IPQ-5010, 800 MHz
-
Memory & Storage: 256 MB DDR3L RAM; 128 MB NAND
-
Wireless: 5 GHz 802.11a/n/ac/ax (Wi-Fi 6), 2 chains; max data rate 1200 Mbit/s
-
Antenna: Integrated 16 dBi directional
-
RF performance (examples): 6MBit/s Tx 24 dBm / Rx -96 dBm; 54MBit/s Tx 21 dBm / Rx -80 dBm; MCS11 Tx 16 dBm / Rx -67 dBm
-
Power: Passive PoE-in 12–28 V DC; max power consumption 6 W; included adapter 24 V 0.38 A
-
Physical & Environment: 129 × 129 × 34 mm; IP55 enclosure; -40°C to +70°C tested ambient
-
Compliance IDs: FCC ID TV7SXTS5AX; IC ID 7442A-SXT5AX
Upgrade Your Wireless Link Today
Deploy a compact, weatherproof 5 GHz Wi-Fi 6 CPE with a directional 16 dBi antenna and Passive PoE powering. Order the MikroTik SXTsq 5 ax (SXTsq-5axD-US) today.
