- Low-cost small-size 16dBi 5GHz dual chain integrated CPE/Backbone with AC support and Gigabit Ethernet
[/shortdesc]
[properties]
| Properties |
MikroTik SXTsq 5 ac RBSXTSQG-5ACD-US |
| Description |
Low-cost small-size 16dBi 5GHz dual chain integrated CPE/Backbone with AC support and Gigabit Ethernet |
| Product Family |
SXT Series |
| Product Type |
Access Point |
| 10/100/1000 Ethernet ports |
1 |
| Extras |
PCB temperature monitor
Voltage Monitor
Beeper |
| Dimensions |
129 x 129 x 34 mm |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
7 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-28 V |
[/properties][specifications]
| Specifications |
RBSXTSQG-5ACD-US |
| Memory |
256 MB |
| Flash Storage size |
16 MB |
| CPU |
IPQ-4018 716 MHz |
| CPU core count |
4 |
| OS |
RouterOS level 3 license |
| Wireless capabilities |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
16 |
| Wireless 5 GHz chip model |
IPQ-4018 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
| Wireless specifications |
| 5 GHz |
|
| 6MBit/s |
Transmit (dBm): 25
Receive Sensitivity: -96 |
| 54MBit/s |
Transmit (dBm): 21
Receive Sensitivity: -80 |
| MCS0 |
Transmit (dBm): 25
Receive Sensitivity: -96 |
| MCS7 |
Transmit (dBm): 20
Receive Sensitivity: -75 |
| MCS9 |
Transmit (dBm): 18
Receive Sensitivity: -70 |
| MTBF |
Approximately 100.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP54 |
[/specifications][accesories]
|
|
| Metal ring (one) |
| Gigabit PoE injector |
[/accesories]

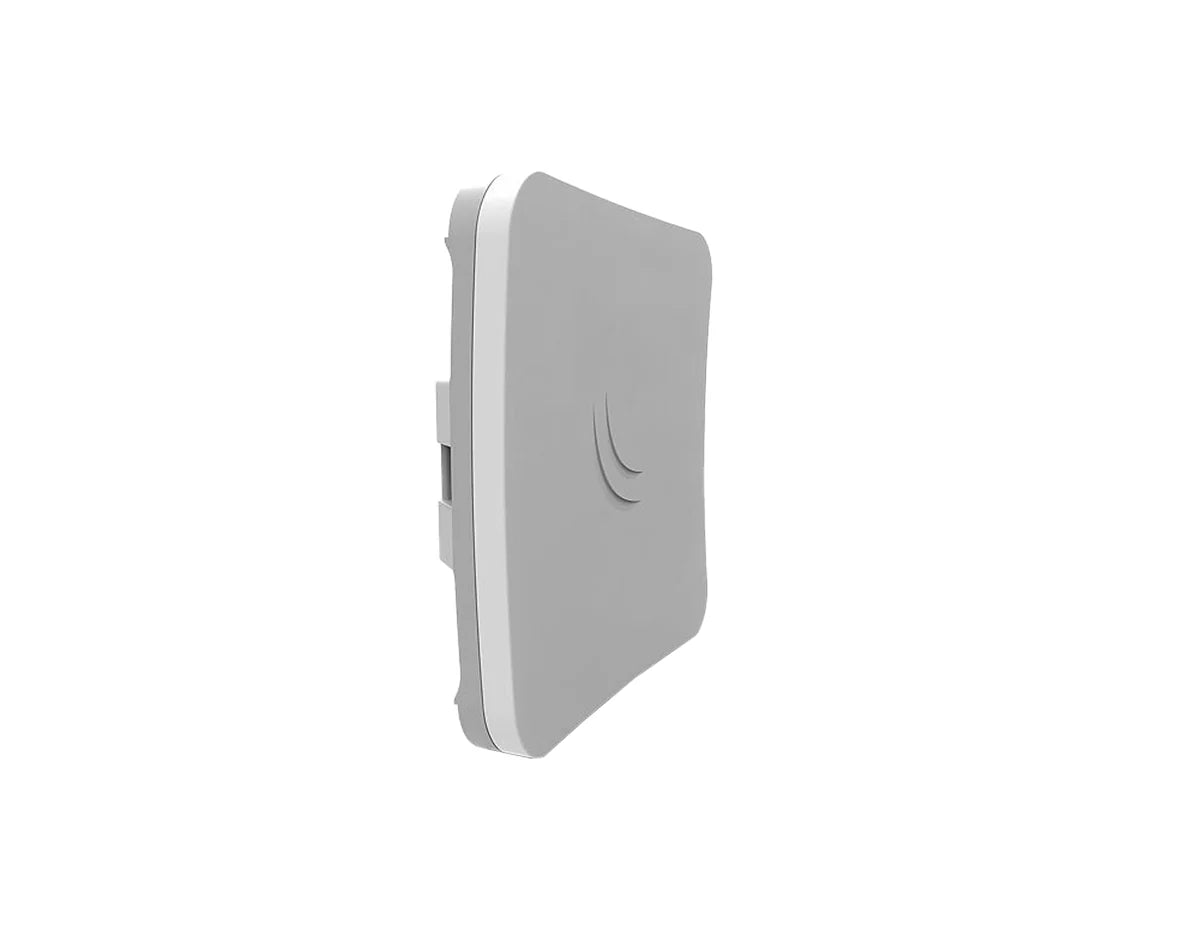

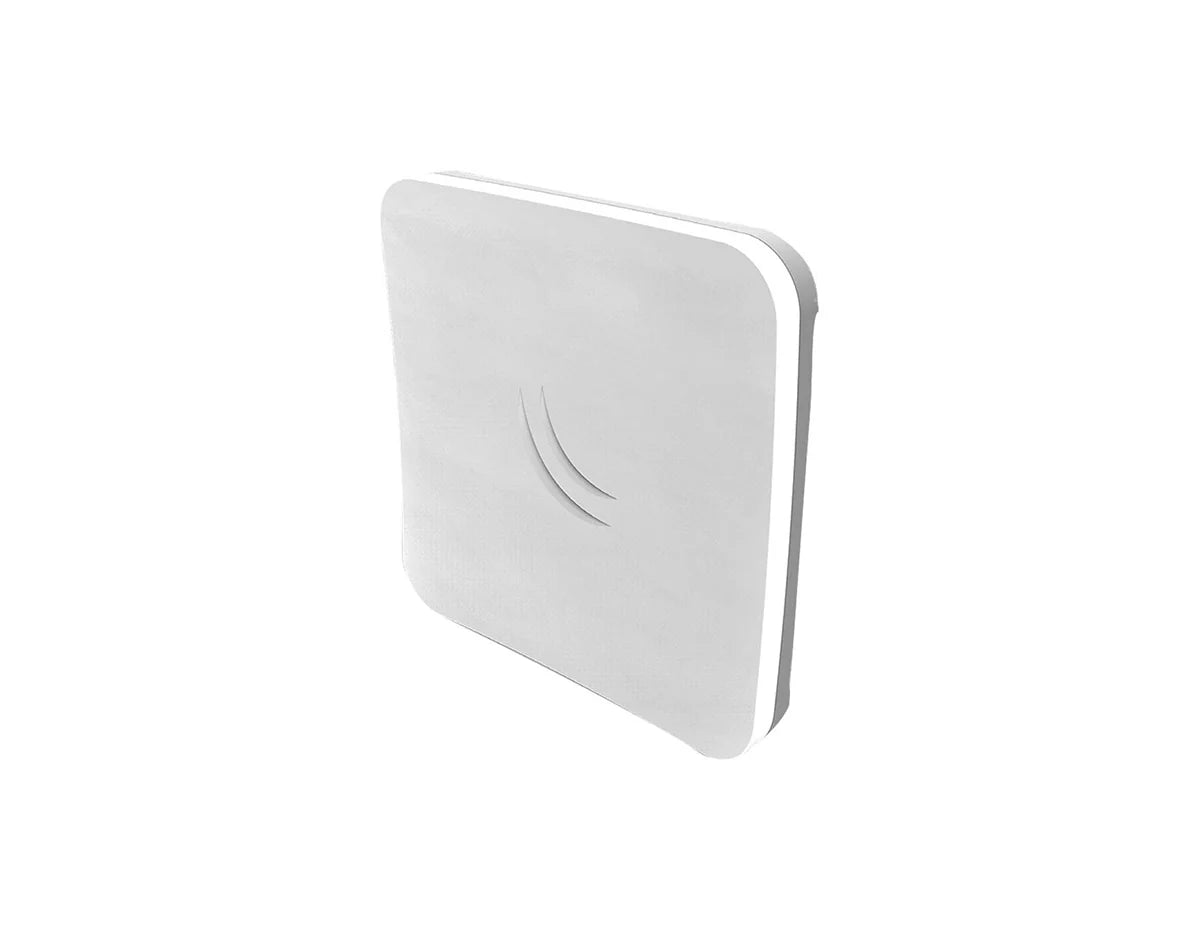

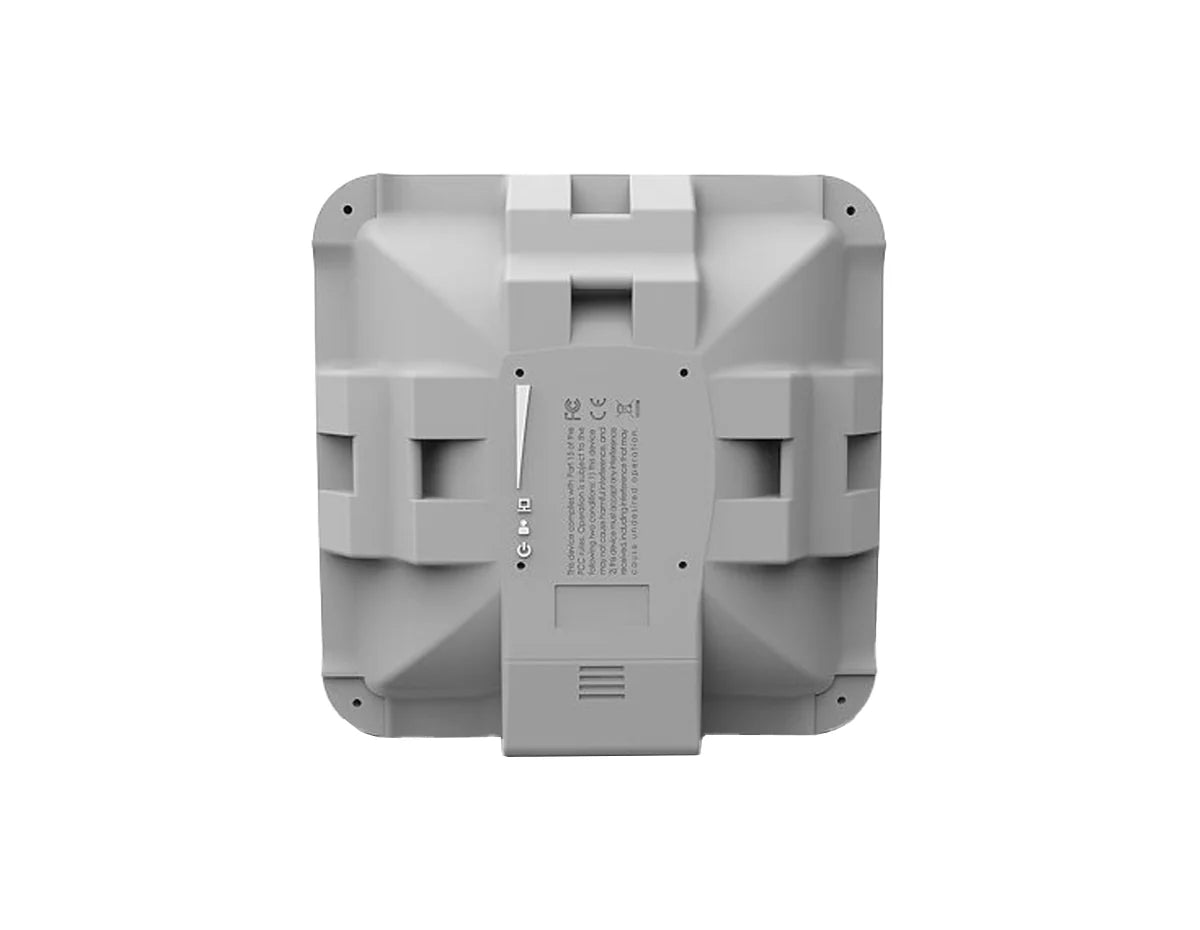

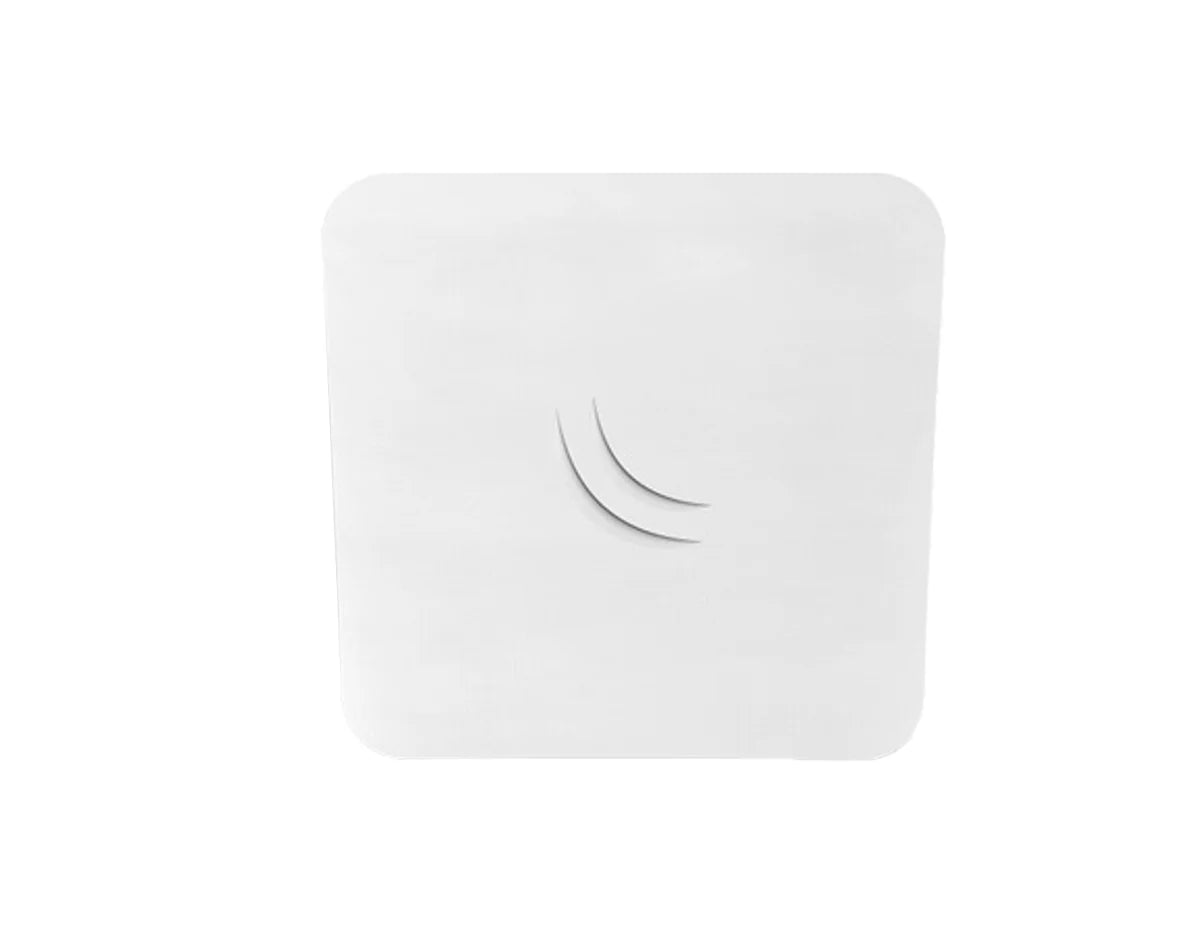

MikroTik RBSXTsqG-5acD-US Access Point
The RBSXTsqG-5acD-US is a small and portable outdoor 5Ghz 802.11ac wireless device with a built-in antenna, ideal for establishing point-to-point connections or for use as a CPE unit. It comes with a single 10/100/1000 Mbit Ethernet port to take advantage of the high speeds offered by the 802.11ac protocol. The durable housing has openings for attaching a hose clamp mount in three different locations and can be easily mounted on horizontal railings. The RBSXTsqG-5acD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock cannot be removed due to country regulations.
Quick Specs:
-
1x 10/100/1000 Gigabit Ethernet ports
-
IPQ-4018, 4 core, 716 MHz CPU
-
PoE in: Passive PoE
-
5 GHz Max Data Rate: 867 Mbit/s
Please see the related tabs for the RBSXTsqG-5acD-US datasheet and compatible accessories.
