- 14dBi integrated Sector AP, 90 degrees beamwidth, Gigabit Ethernet, with case
[/shortdesc]
[properties]
| Properties |
MikroTik SXT SA5 RBSXTG-5HPND-SAR2-US |
| Description |
14dBi integrated Sector AP, 90 degrees beamwidth, Gigabit Ethernet |
| Product Family |
SXT Series |
| Product Type |
Access Point |
| 10/100/1000 Ethernet ports |
1 |
| Number of USB ports |
1 USB type A |
| Extras |
PCB temperature monitor
Voltage Monitor
Beeper |
| Dimensions |
140 x 140 x 56mm |
| Weight without packaging, adapters and cables |
265g |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
11 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
6-30 V |
[/properties][specifications]
| Specifications |
RBSXTG-5HPND-SAR2-US |
| Memory |
64 MB |
| NAND Storage size |
128 MB |
| CPU |
AR9344 600 MHz |
| CPU core count |
1 |
| OS |
RouterOS level 3 license |
| Wireless capabilities |
| Wireless 5 GHz Max data rate |
300 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n |
| Antenna gain dBi for 5 GHz |
14 |
| Wireless 5 GHz chip model |
AR9344 |
| Wireless 5 GHz generation |
Wi-Fi 4 |
| Wireless specifications |
| 5 GHz |
|
| 6MBit/s |
Transmit (dBm): 30
Receive Sensitivity: -96 |
| 54MBit/s |
Transmit (dBm): 27
Receive Sensitivity: -80 |
| MCS0 |
Transmit (dBm): 30
Receive Sensitivity: -95 |
| MCS7 |
Transmit (dBm): 26
Receive Sensitivity: -73 |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-30°C to 70°C tested |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP54 |
[/specifications][accesories]
| 24V 0.8A power adapter |
| Metal ring (one) |
| Gigabit PoE injector |

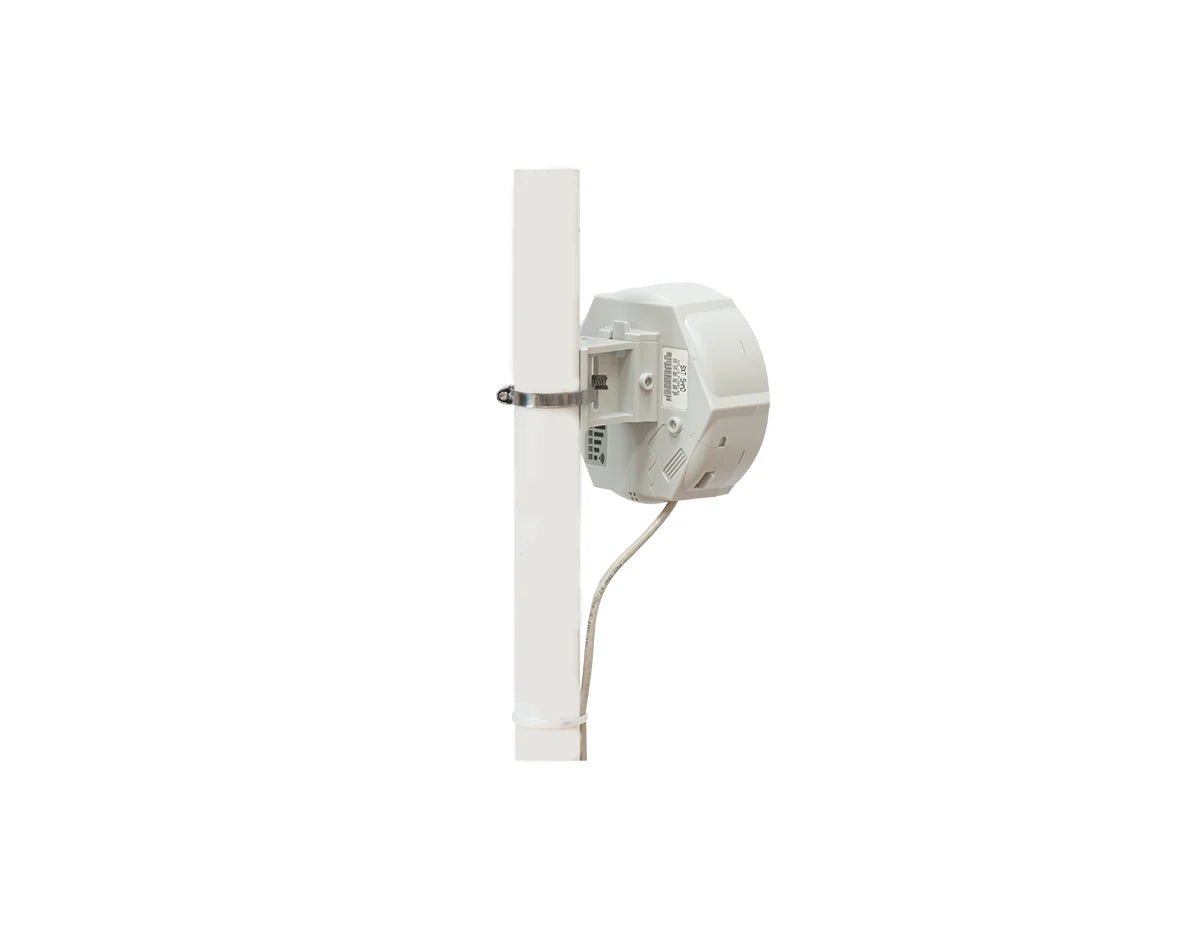

| Pole mounting bracket |
[/accesories]

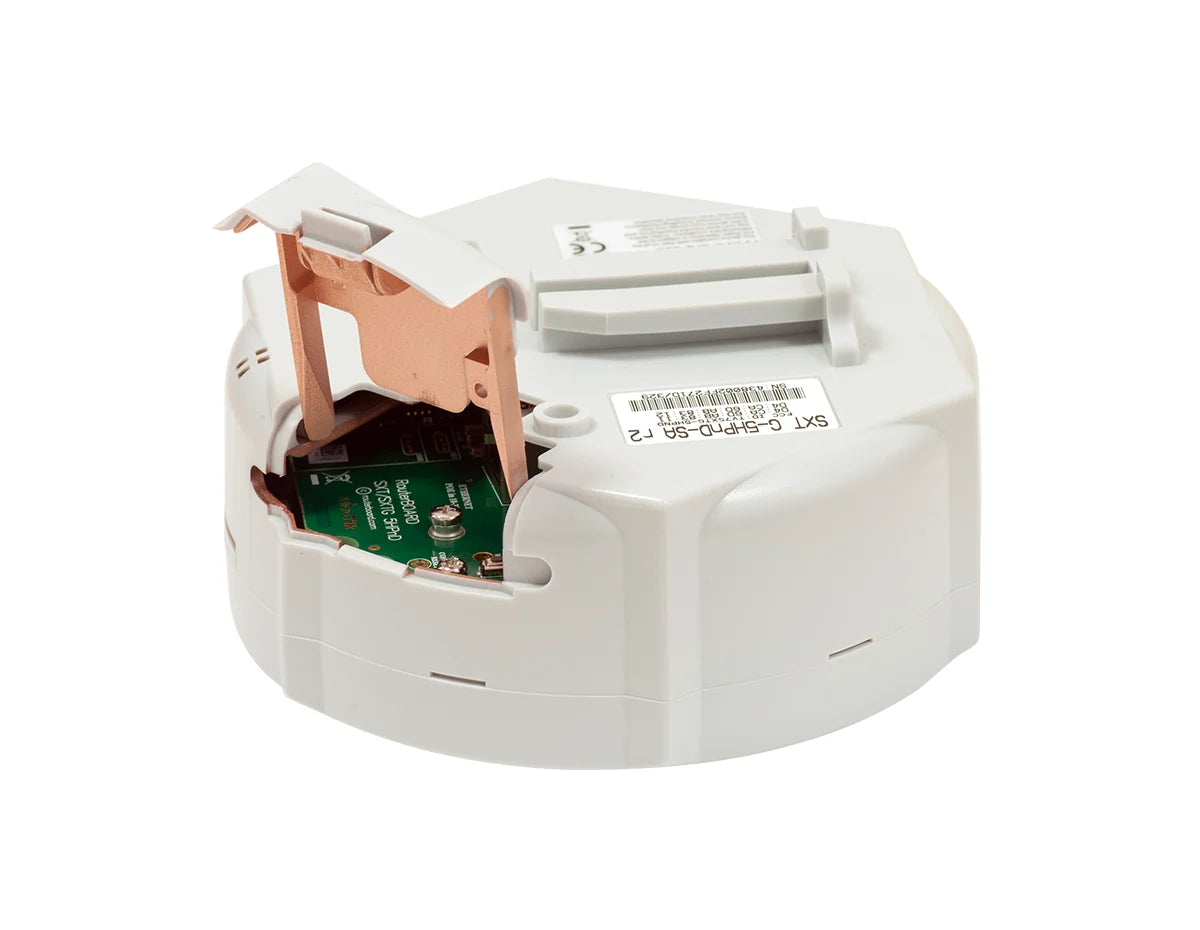

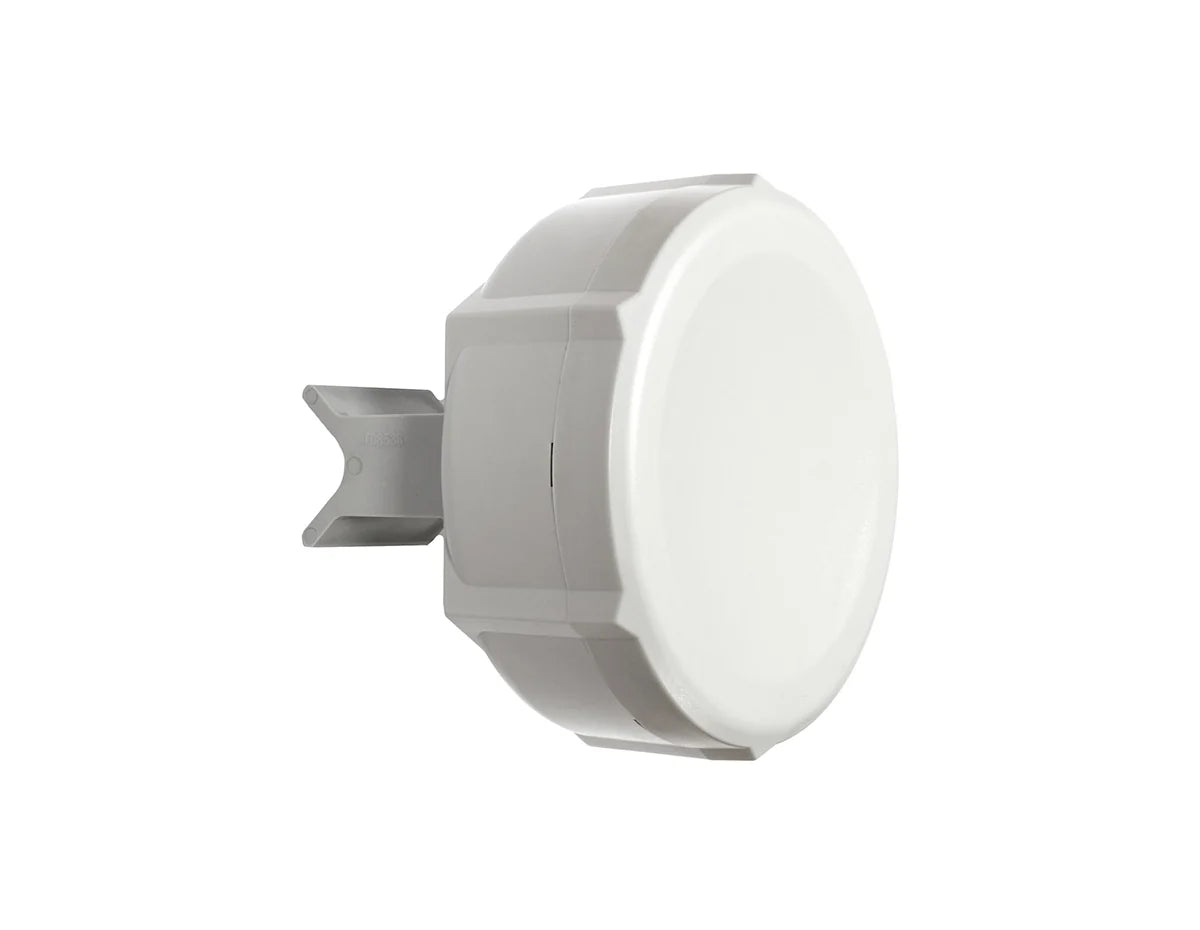

MikroTik RBSXTG-5HPND-SAR2-US Antenna
The SXTG-5HPnD-SAr2 is an affordable, high-speed 5GHz outdoor wireless sector access point featuring a 90-degree antenna for expanded coverage. It is equipped with a pre-assembled enclosure and a built-in 14dBi antenna, this package includes all necessary components for quick installation. The RBSXTG-5HPnD-SAr2-US (USA) model is preset to operate within the 5170-5250MHz and 5725-5835MHz frequency bands, in compliance with country-specific regulations. This lock is permanent and cannot be altered.
Quick Specs:
-
1x 10/100/1000 Ethernet Ports
-
PoE-in: Passive PoE
-
AR9344, 1 core, 600MHz
-
64MB RAM
Please see the related tabs for the SXTG-5HPnD-SAr2-US datasheet and compatible accessories.
