- 60 GHz Base Station with Phase array 60 beamforming Integrated antenna, 716 Mhz CPU, 256 MB RAM, PSU and PoE, RouterOS L4
[/shortdesc]
[properties]
| Properties |
MikroTik wAP 60G RBWAPG-60AD |
| Description |
60 GHz Base Station with Phase array 60 beamforming Integrated antenna, 716 Mhz CPU, 256 MB RAM, PSU and PoE, RouterOS L4 |
| Product Family |
mAP Series |
| Product Type |
Access Point |
| 10/100/1000 Ethernet ports |
1 |
| Dimensions |
185 x 85 x 30 mm |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-57 V |
| Max power consumption |
5 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
12-57 V |
[/properties][specifications]
| Specifications |
RBWAPG-60AD |
| Memory |
256 MB |
| Flash Storage size |
16 MB |
| CPU |
IPQ-4019 716 MHz |
| CPU core count |
4 |
| OS |
RouterOS level 4 license |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2 |
| Antenna beam width |
Phase array 60° beamforming |
| Wireless 2.4 GHz chip model |
QCA9533 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| IPsec hardware acceleration |
Yes |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP55 |
[/specifications][accesories]
| Plastic zip tie |
| Gigabit PoE injector |
|
|
| K-52 fastening set |
wAP ceiling mount bracket
|
| Metal ring (one) |
| wAP desktop stand |
[/accesories]

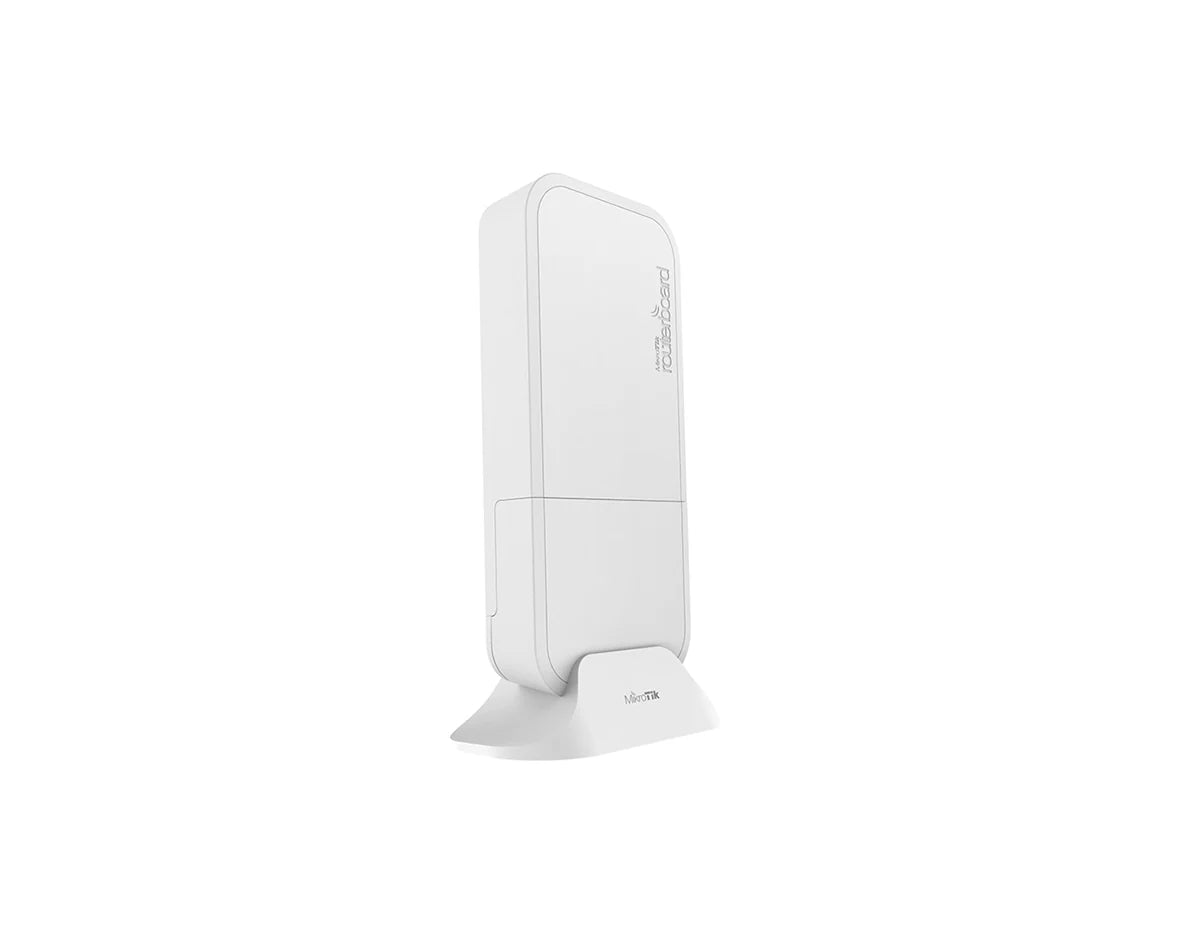

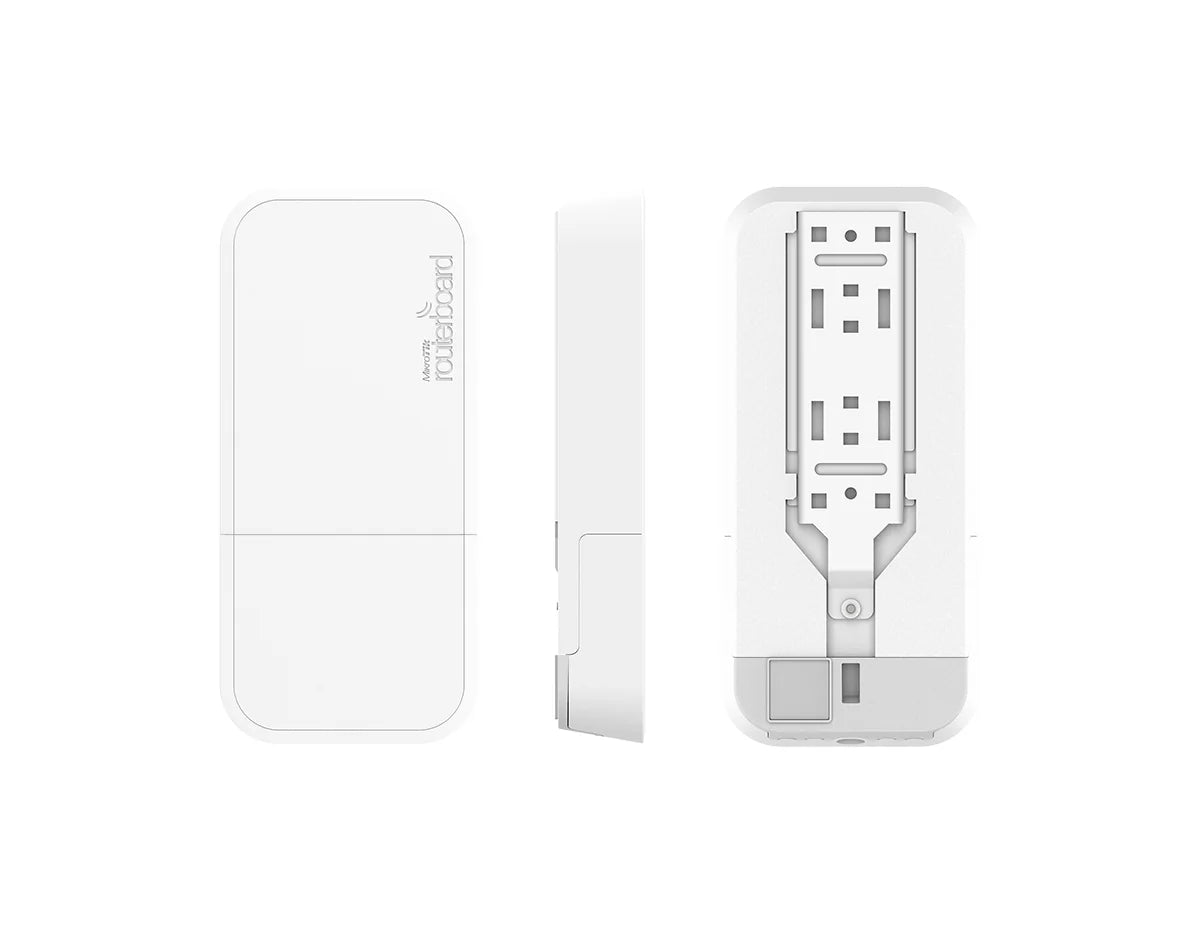

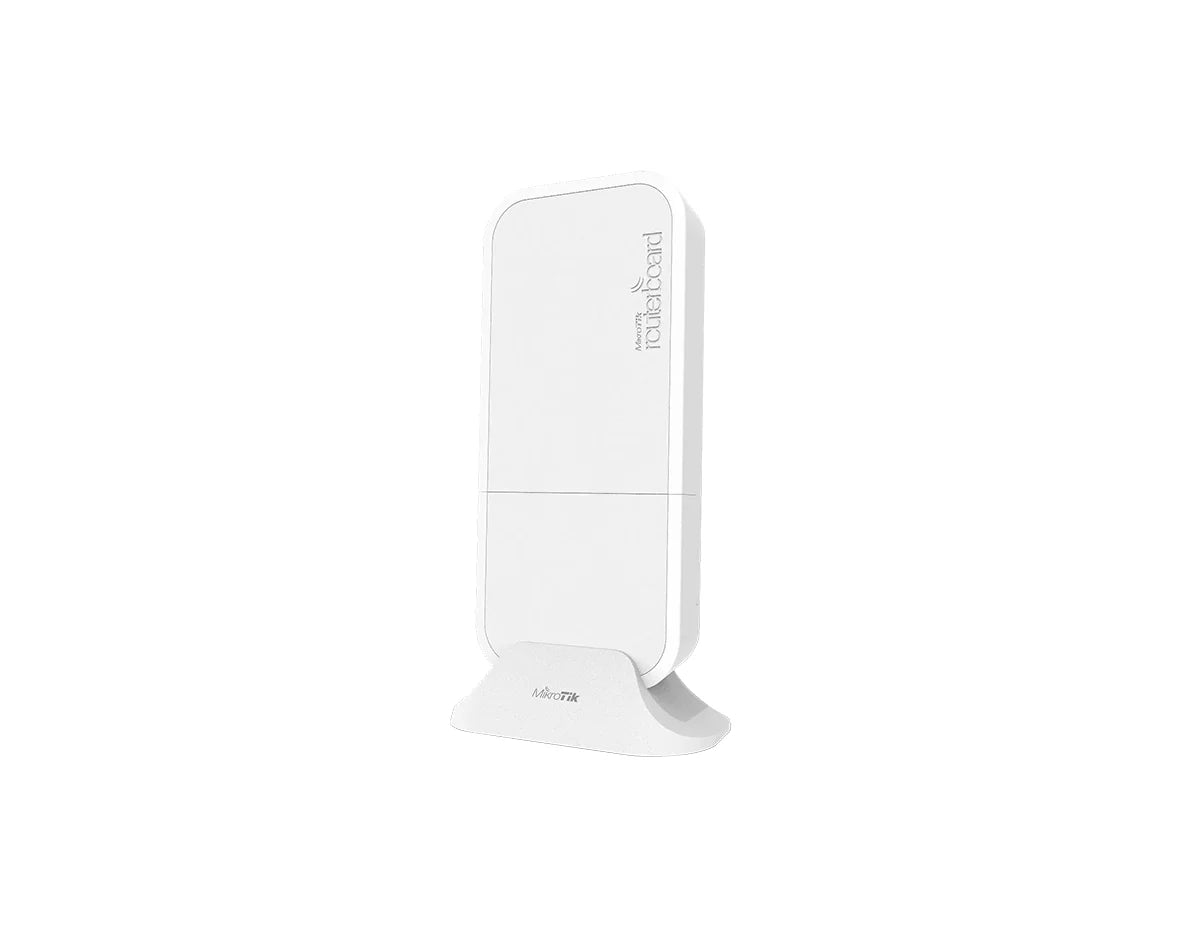

MikroTik RBWAPG-60AD Access Point
The RBWAPG-60AD is a durable 60 GHz wireless device designed for both indoor and outdoor use as a Point-to-Point or Customer Premises Equipment (CPE) unit. The package includes a wall mounting kit, pole mounting straps, a power supply, a Power over Ethernet (PoE) injector, and a table stand for indoor use. It has the capability to penetrate certain types of windows, depending on the material. The RBWAPG-60AD can establish connections with 60 GHz Access Points at distances exceeding 200 meters.
Quick Specs:
-
1x 10/100/1000 Ethernet port
-
200m+ range
-
IPQ-4019, 4 core, 716 MHz CPU
-
PoE in: 802.3af/at
Please see the related tabs for the RBWAPG-60AD datasheet and compatible accessories.
